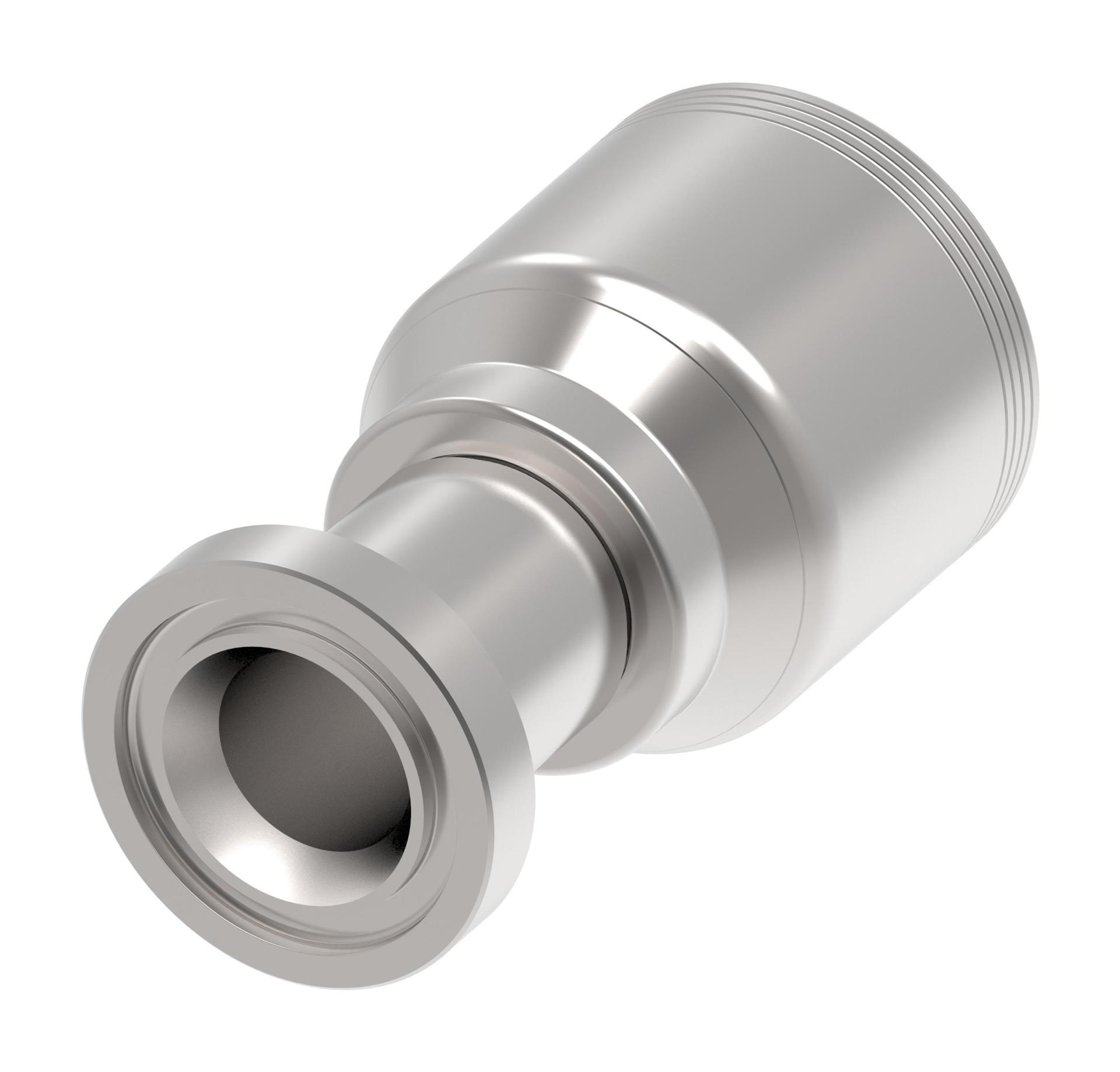

Hose Fittings 4SXXFH20 (RIGHT)

HOSE FTG, 4S/20, C62/24, -S

4S24FH20


Tools

Product specifications

Characteristic
Value
A dimension IN5.080
A dimension MM129.000
Angle shapeStraight
BrandDanfoss
Compatible hose ID IN1.250
Construction StyleCrimp
End size 1-24
End Type 1Split flange code 62
Finish platingDura-Kote
Hose cut off factor IN2.910
Hose cut off factor MM73.900
Inside diameter IN3.000
Inside diameter MM25.200
Product height in2.500
Product height mm63.500
Product length in5.100
Product length mm129.540
Product materialCarbon steel
Product width in2.500
Product width mm63.500 mm
Seal materialEthylene Propylene (EPDM)
Thread sealantNo
Working pressure max bar414
Working pressure max psi6000
Working temperature max C100
Working temperature max F212
Working temperature min C-40
Working temperature min F-40

General specifications

Characteristic
Value
EAN678146153777
