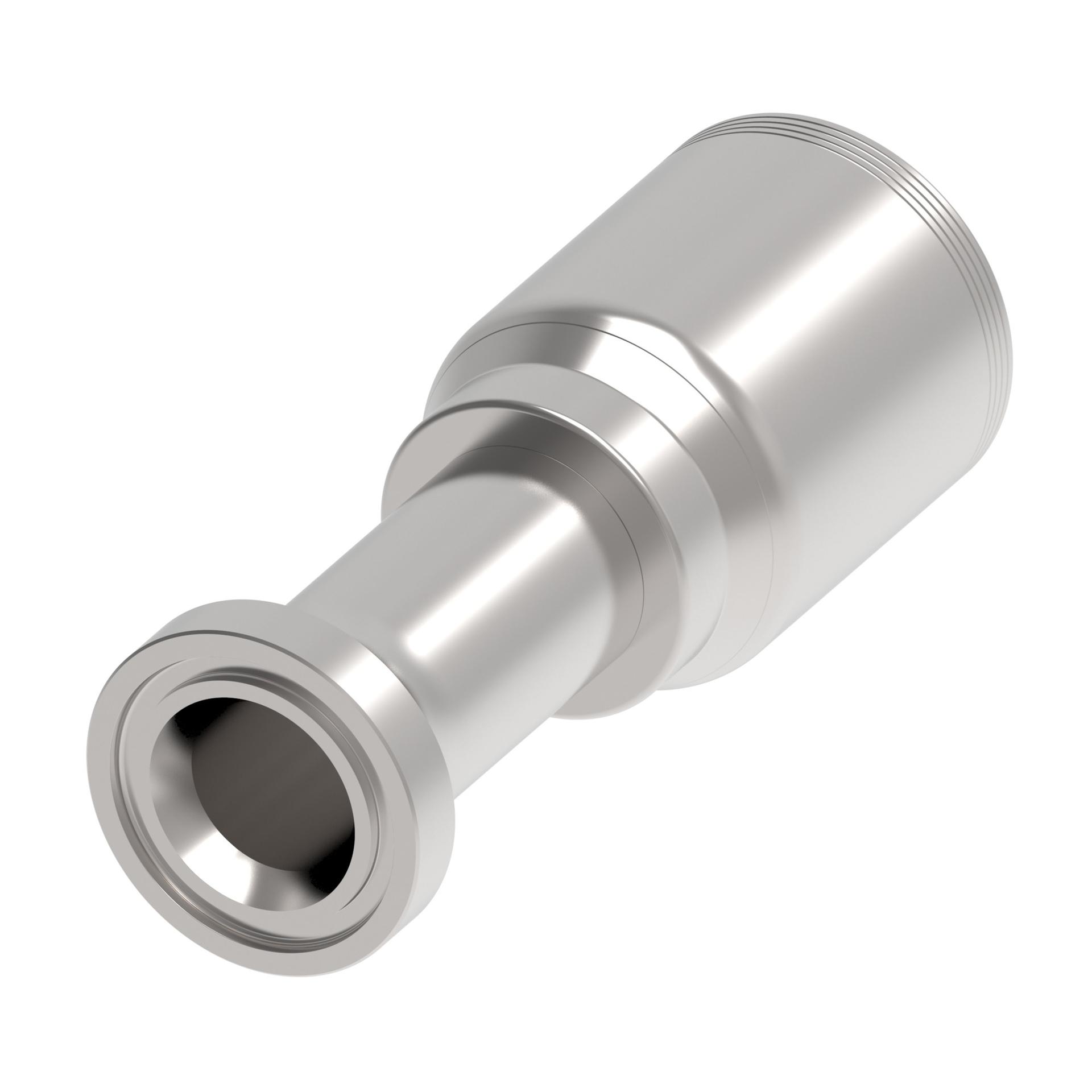

Hose Fittings 4S24FH24 (RIGHT)

HOSE FTG, 4S/24, C62/24, -S

4S24FH24


Tools

Product specifications

Characteristic
Value
A dimension IN7.460
A dimension MM189.600
Angle shapeStraight
BrandDanfoss
Compatible hose ID IN1.500
Construction StyleCrimp
End size 1-24
End Type 1Split flange code 62
Finish platingDura-Kote
Hose cut off factor IN4.390
Hose cut off factor MM111.600
Inside diameter IN1.220
Inside diameter MM31.100
Product height in2.800
Product height mm71.120
Product length in7.500
Product length mm190.500
Product materialCarbon steel
Product width in2.800
Product width mm71.120 mm
Seal materialEthylene Propylene (EPDM)
Thread sealantNo
Working pressure max bar414
Working pressure max psi6000
Working temperature max C100
Working temperature max F212
Working temperature min C-40
Working temperature min F-40

General specifications

Characteristic
Value
EAN815628022309
