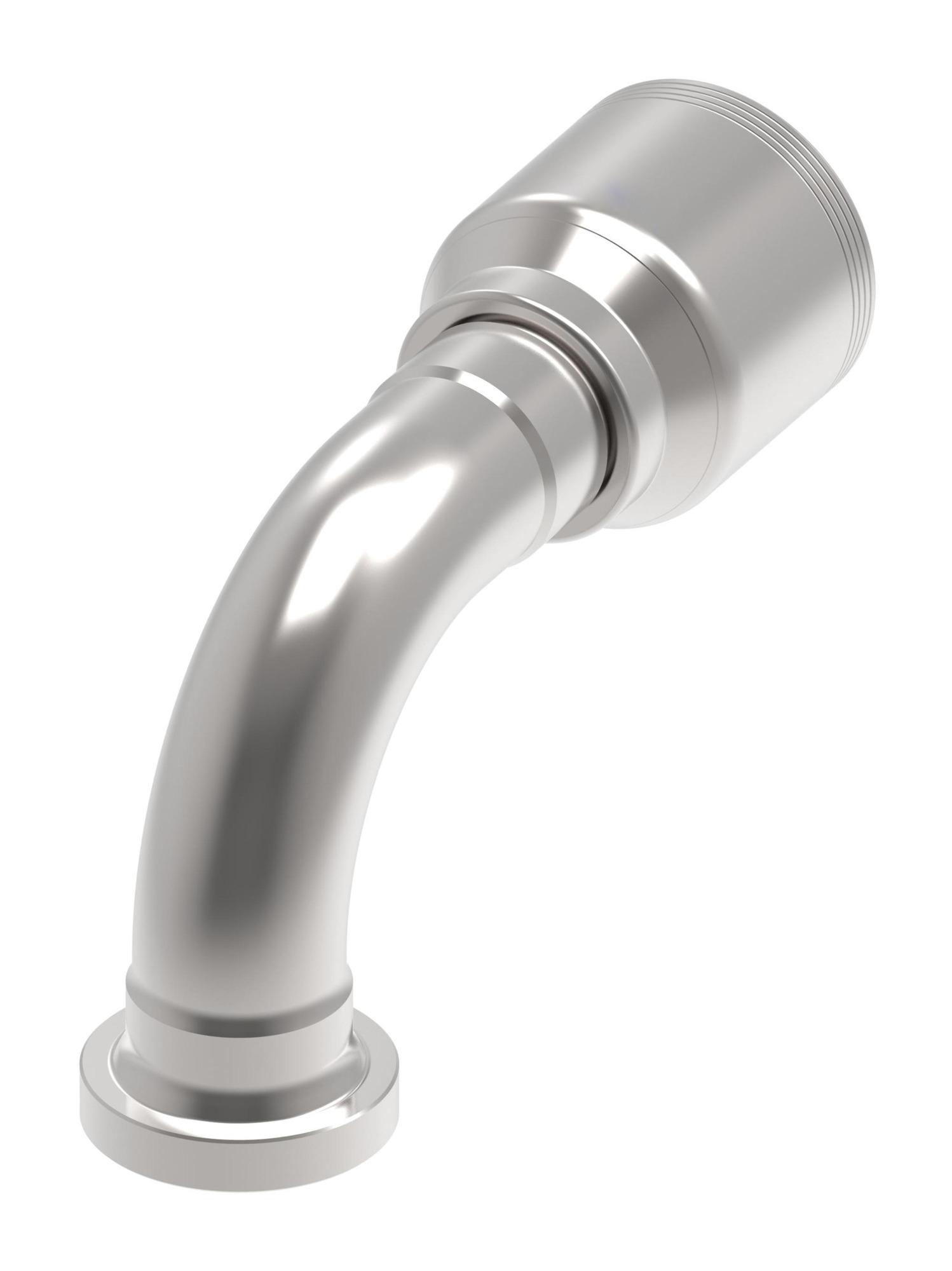

Product specifications
Characteristic | Value |
|---|---|
| A dimension IN | 3.651 |
| A dimension MM | 92.740 |
| Angle shape | 90 Degree |
| Brand | Danfoss |
| Compatible hose ID IN | 1.250 |
| Compatible hose ID MM | 31.800 |
| Construction Style | Crimp |
| Drop dimension IN | 2.660 |
| Drop dimension MM | 67.56 |
| End connection torque | 218-240 lb-ft(296-325 Nm) |
| End size 1 | -24 |
| End type 1 | Split flange code 62 |
| Finish plating | Dura-Kote |
| Hose cut off factor IN | 3.880 |
| Hose cut off factor MM | 98.552 |
| Hose size | -20 |
| Inside diameter IN | 0.990 |
| Inside diameter MM | 25.146 |
| Product material | Carbon steel |
| Series | 4S/6S |
| Thread sealant | No |
| Working pressure max bar | 414 |
| Working pressure max psi | 6000 |
| Working temperature max C | 126 |
| Working temperature max F | 260 |
| Working temperature min C | -40 |
| Working temperature min F | -40 |
