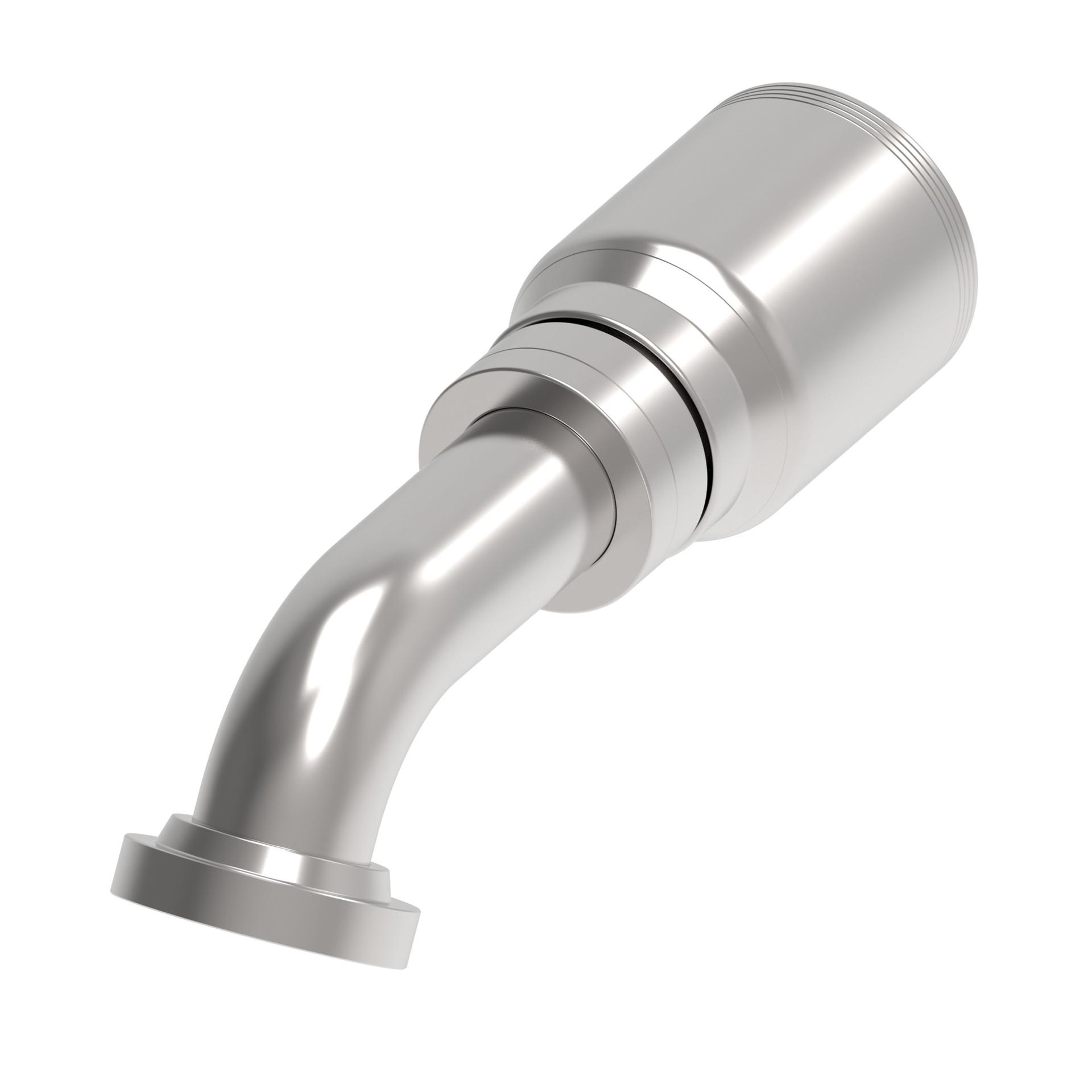

Product specifications
Characteristic | Value |
|---|---|
| A dimension IN | 11.040 |
| A dimension MM | 280.600 |
| Angle shape | 60 Degree |
| Brand | Danfoss |
| Catalog Item | 4S24FHG24.048 |
| Compatible hose ID IN | 1.500 |
| Compatible hose ID MM | 38.100 |
| Construction Style | Crimp |
| Drop dimension IN | 1.870 |
| Drop dimension MM | 47.50 |
| End connection torque | 218-240 lb-ft(296-325 Nm) |
| End size 1 | -24 |
| End Type 1 | Split flange code 62 |
| Finish plating | Dura-Kote |
| Hose cut off factor IN | 6.224 |
| Hose cut off factor MM | 158.090 |
| Hose size | -24 |
| Inside diameter IN | 1.220 |
| Inside diameter MM | 30.988 |
| Product height in | 1.870 |
| Product height mm | 47.498 |
| Product length in | 10.686 |
| Product length mm | 271.420 |
| Product material | Carbon steel |
| Product width in | 2.823 |
| Product width mm | 71.704 |
| Series | 4S/6S |
