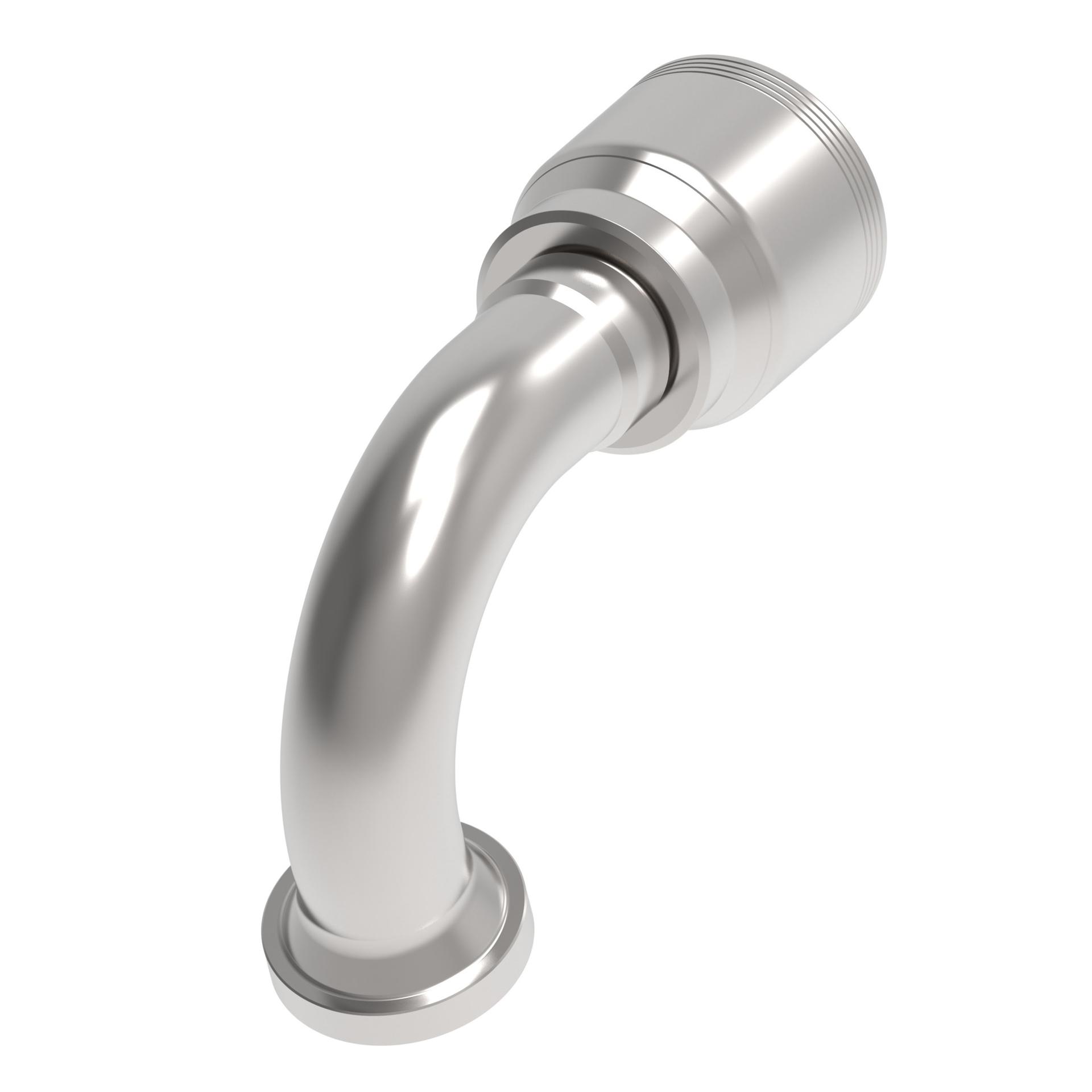

Product specifications
Characteristic | Value |
|---|---|
| A dimension IN | 6.460 |
| A dimension MM | 164.100 |
| Angle shape | 110 Degree |
| Brand | Danfoss |
| Compatible hose ID IN | 1.250 |
| Compatible hose ID MM | 31.750 |
| Construction Style | Crimp |
| Drop dimension IN | 4.920 |
| Drop dimension MM | 125.09 |
| End size 1 | -24 |
| End Type 1 | Split flange code 61 |
| Finish plating | Dura-Kote |
| Hose cut off factor IN | 4.330 |
| Hose cut off factor MM | 110.000 |
| Hose size | -20 |
| Inside diameter IN | 0.990 |
| Inside diameter MM | 25.200 |
| Product height in | 4.924 |
| Product height mm | 125.090 |
| Product length in | 6.460 |
| Product length mm | 164.100 |
| Product material | Carbon steel |
| Product width in | 2.456 |
| Product width mm | 62.400 mm |
| Seal material | Ethylene propylene (EPDM) |
| Thread sealant | No |
| Working pressure max bar | 310 |
| Working pressure max psi | 4500 |
| Working temperature max C | 127 |
| Working temperature max F | 260 |
| Working temperature min C | -40 |
| Working temperature min F | -40 |
