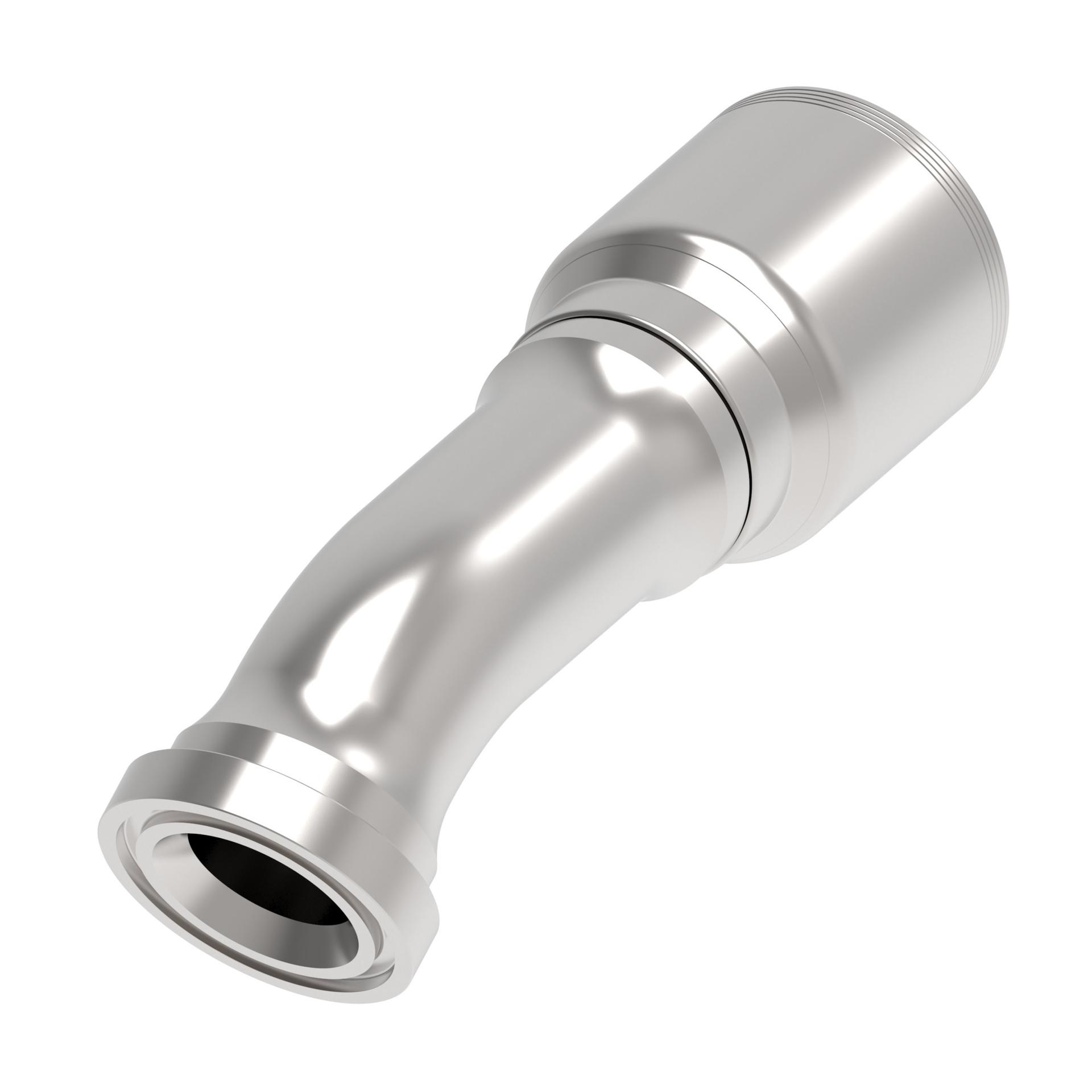

Hose Fittings 4S32CTF32 (RIGHT)

Ftng perm 4-sprl 4SCAT SPLIT FLNG - 30

4S32CTF32


Tools

Product specifications

Characteristic
Value
Angle shape30 Degree
BrandDanfoss
Compatible hose ID IN2.000
Compatible hose ID MM50.800
Compatible hosesEC525 (Size dependent)EC810 (Size dependent)FC254 (Size dependent)FC273 (Size dependent)FC500 (Size dependent)FC636 (Size dependent)FC736 (Size dependent)GH493 (Size dependent)GH506 (Size dependent)
Compatible tube OD IN2.00
Compatible tube OD MM50.800
CompliancesSAE J1176
Construction StyleCrimp
Drop dimension IN1.370
Drop dimension MM34.80
Finish platingDura-Kote
Hose cut off factor IN7.450
Hose cut off factor MM189.230
Hose size-32
Inside diameter IN1.660
Inside diameter MM42.164
Product materialCarbon steel
Thread sealantNo
Tube OD 1 IN2.000
Tube OD 1 MM50.800

General specifications

Characteristic
Value
EAN815628022507
