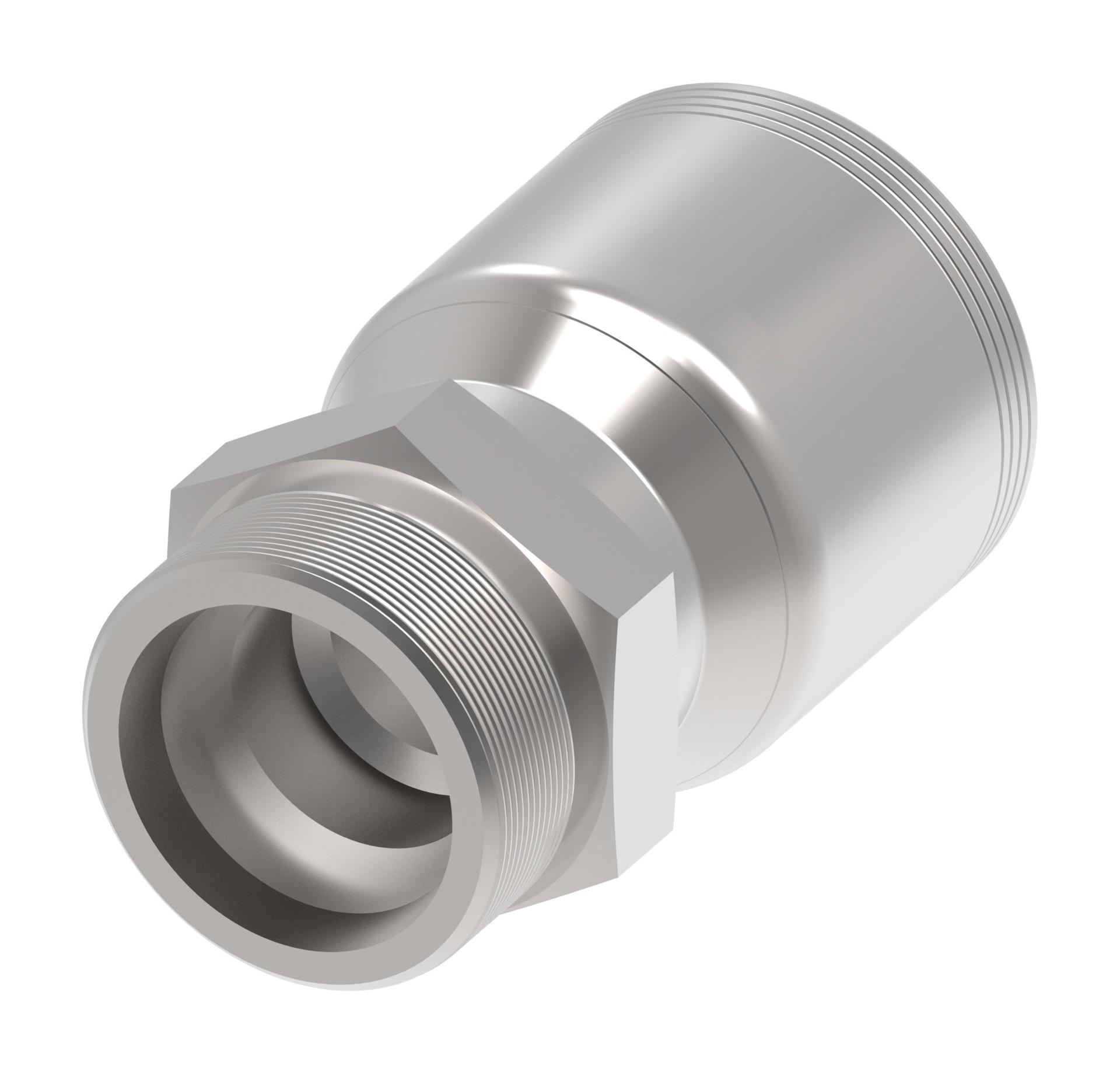

Hose Fittings 4SXXEK20 (RIGHT)

HOSE FTG, 4S/20, DKH-M/32, -S

4S32EK20


Tools

Product specifications

Characteristic
Value
A dimension IN4.210
A dimension MM106.900
Angle shapeStraight
BrandDanfoss
Compatible hose ID IN1.250
End size 1-32
End Type 124 deg. tube port heavy duty
Finish platingDura-Kote
Hex size 2 IN2.160
Hex size 2 MM55.000
Hose cut off factor IN2.040
Hose cut off factor MM51.700
Inside diameter IN0.990
Inside diameter MM25.200
Product height in2.160
Product height mm54.864
Product length in4.210
Product length mm106.934
Product materialCarbon steel
Product width in2.160
Product width mm54.864 mm
Seal materialEthylene Propylene (EPDM)
Thread sealantNo
Thread size 1M52x2
Working temperature max C100
Working temperature max F212
Working temperature min C-40
Working temperature min F-40

General specifications

Characteristic
Value
EAN678146153920
