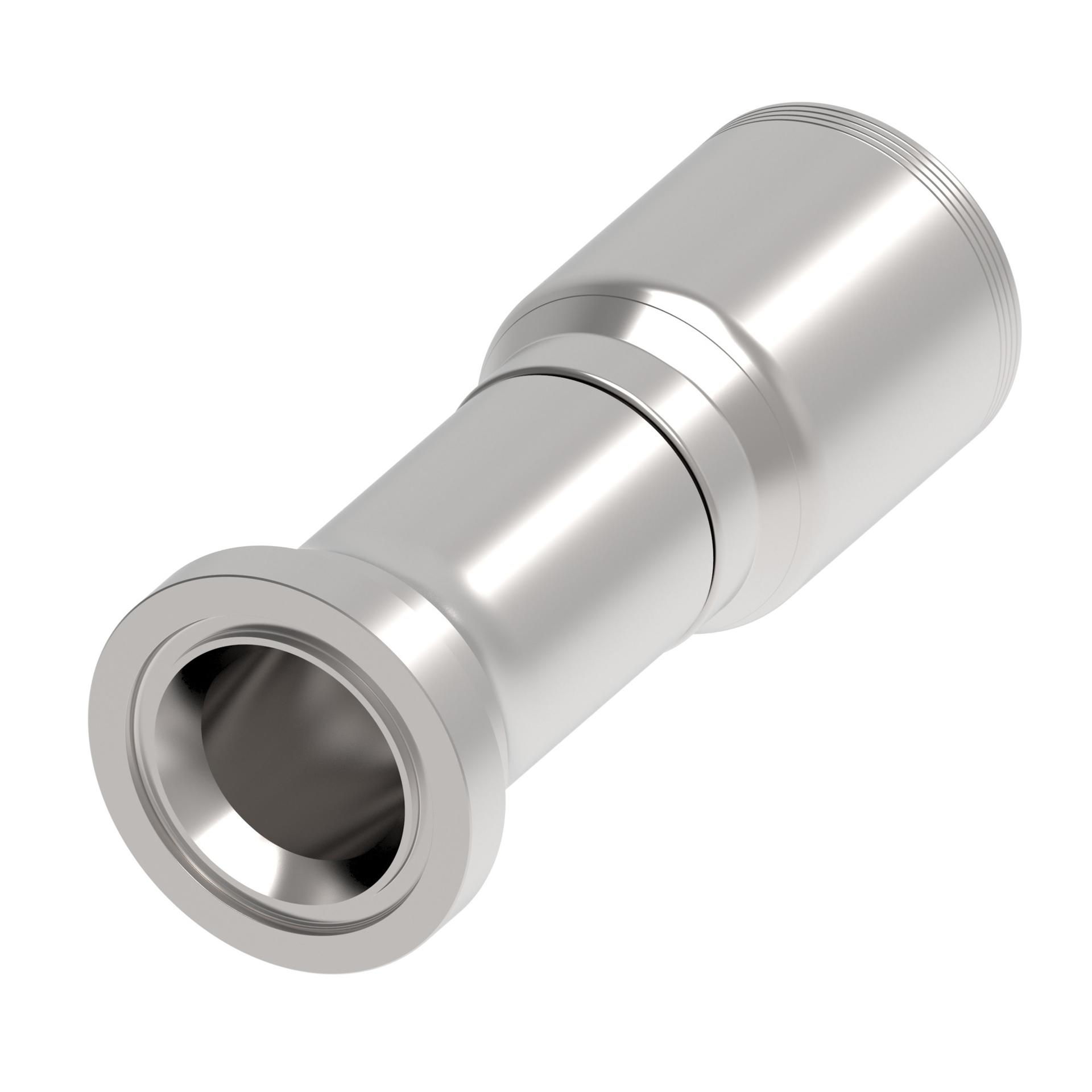

Hose Fittings 4S32FH24 (RIGHT)

Ftng perm4-sprl 4SCD62 SPLIT FLNG-STR

4S32FH24


Tools

Product specifications

Characteristic
Value
A dimension IN8.050
A dimension MM204.400
Angle shapeStraight
BrandDanfoss
Compatible hose ID IN1.500
Construction StyleCrimp
End size 1-32
End type 1Split flange code 62
Finish platingDura-Kote
Hose cut off factor IN4.980
Hose cut off factor MM126.400
Inside diameter MM31.100
Product height in3.130
Product height mm79.502
Product length in8.100
Product length mm205.740
Product materialCarbon steel
Product width in3.130
Product width mm79.502 mm
Thread sealantNo
Working pressure max bar414
Working pressure max psi6000
Working temperature max C126
Working temperature max F260
Working temperature min C-40
Working temperature min F-40

General specifications

Characteristic
Value
EAN815628022521
