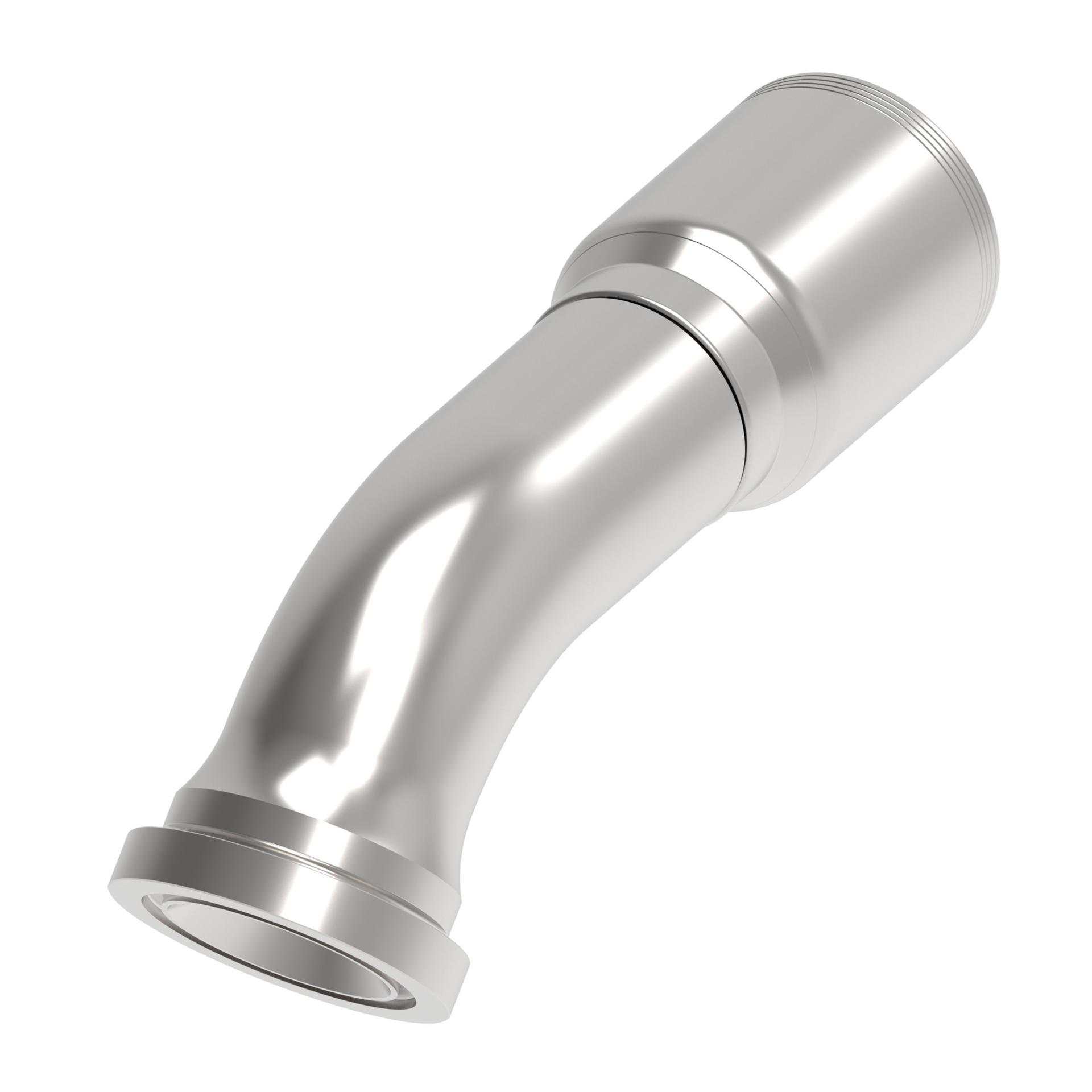

Product specifications
Characteristic | Value |
|---|---|
| A dimension IN | 9.880 |
| A dimension MM | 251.000 |
| Angle shape | 45 Degree |
| Brand | Danfoss |
| Compatible hose ID IN | 1.500 |
| Construction Style | Crimp |
| Drop dimension IN | 2.260 |
| Drop dimension MM | 57.50 |
| End size 1 | -32 |
| End type 1 | Split flange code 62 |
| Finish plating | Dura-Kote |
| Hose cut off factor IN | 6.810 |
| Hose cut off factor MM | 173.000 |
| Inside diameter MM | 31.100 |
| Product height in | 5.220 |
| Product height mm | 132.588 |
| Product length in | 11.440 |
| Product length mm | 290.576 |
| Product material | Carbon steel |
| Product width in | 3.130 |
| Product width mm | 79.502 mm |
| Thread sealant | No |
| Working pressure max bar | 414 |
| Working pressure max psi | 6000 |
| Working temperature max C | 126 |
| Working temperature max F | 260 |
| Working temperature min C | -40 |
| Working temperature min F | -40 |
General specifications
Characteristic | Value |
|---|---|
| EAN/UPC | 815628022545 |
| Proposition 65 | Cancer and Reproductive Harm |
