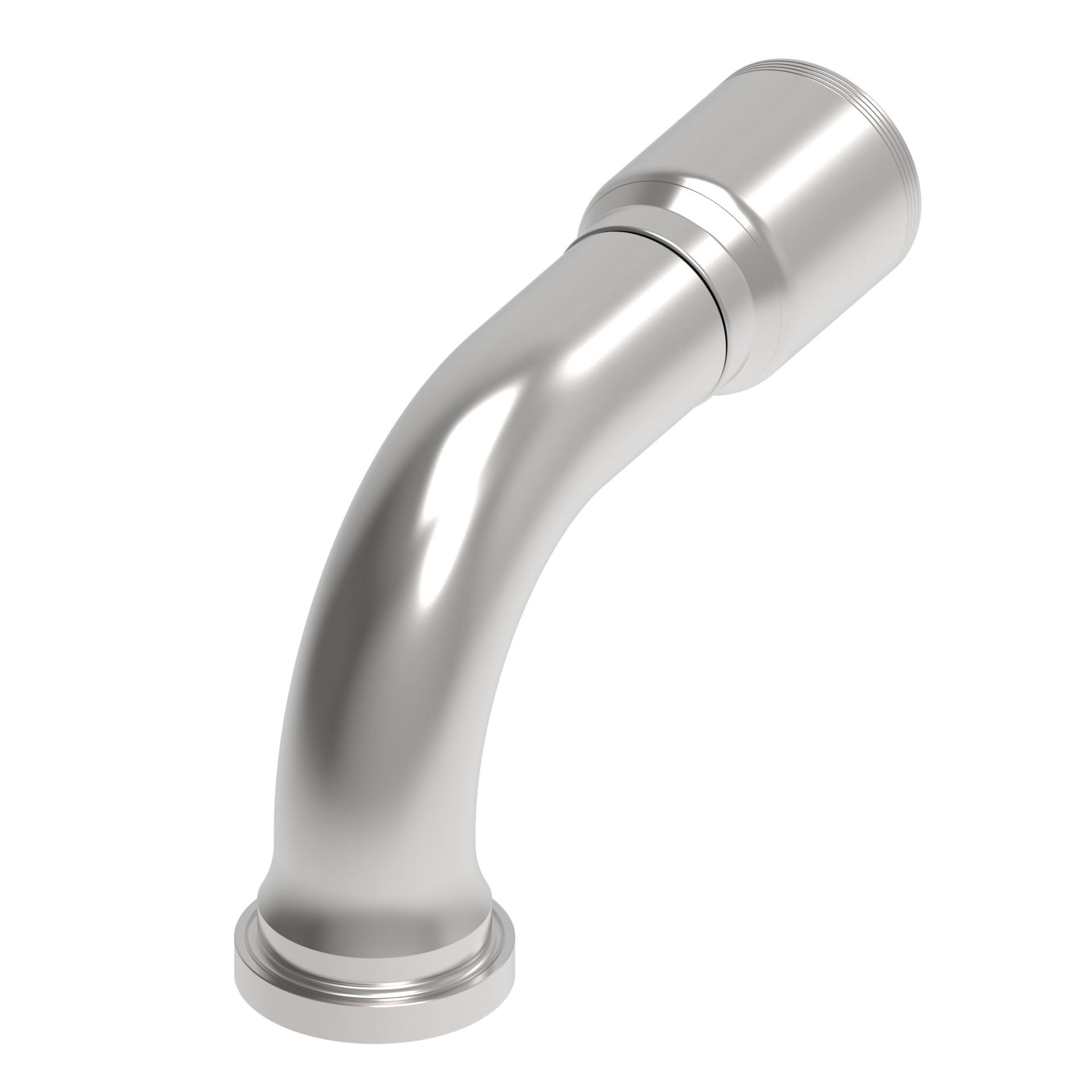

Hose Fittings 4S32FHB24 (RIGHT)

Ftng perm 4-sprl 4SCD62 SPLIT FLNG-90

4S32FHB24


Tools

Product specifications

Characteristic
Value
A dimension IN9.740
A dimension MM247.400
Angle shape90 Degree
BrandDanfoss
Compatible hose ID IN1.500
Construction StyleCrimp
Drop dimension IN5.430
Drop dimension MM138.00
End size 1-32
End Type 1Split flange code 62
Finish platingDura-Kote
Hose cut off factor IN6.670
Hose cut off factor MM169.400
Inside diameter MM31.100
Product height in6.800
Product height mm172.720
Product length in11.300
Product length mm287.020
Product materialCarbon steel
Product width in3.130
Product width mm79.502 mm
Thread sealantNo
Working pressure max bar414
Working pressure max psi6000
Working temperature max C126
Working temperature max F260
Working temperature min C-40
Working temperature min F-40

General specifications

Characteristic
Value
EAN815628022569
