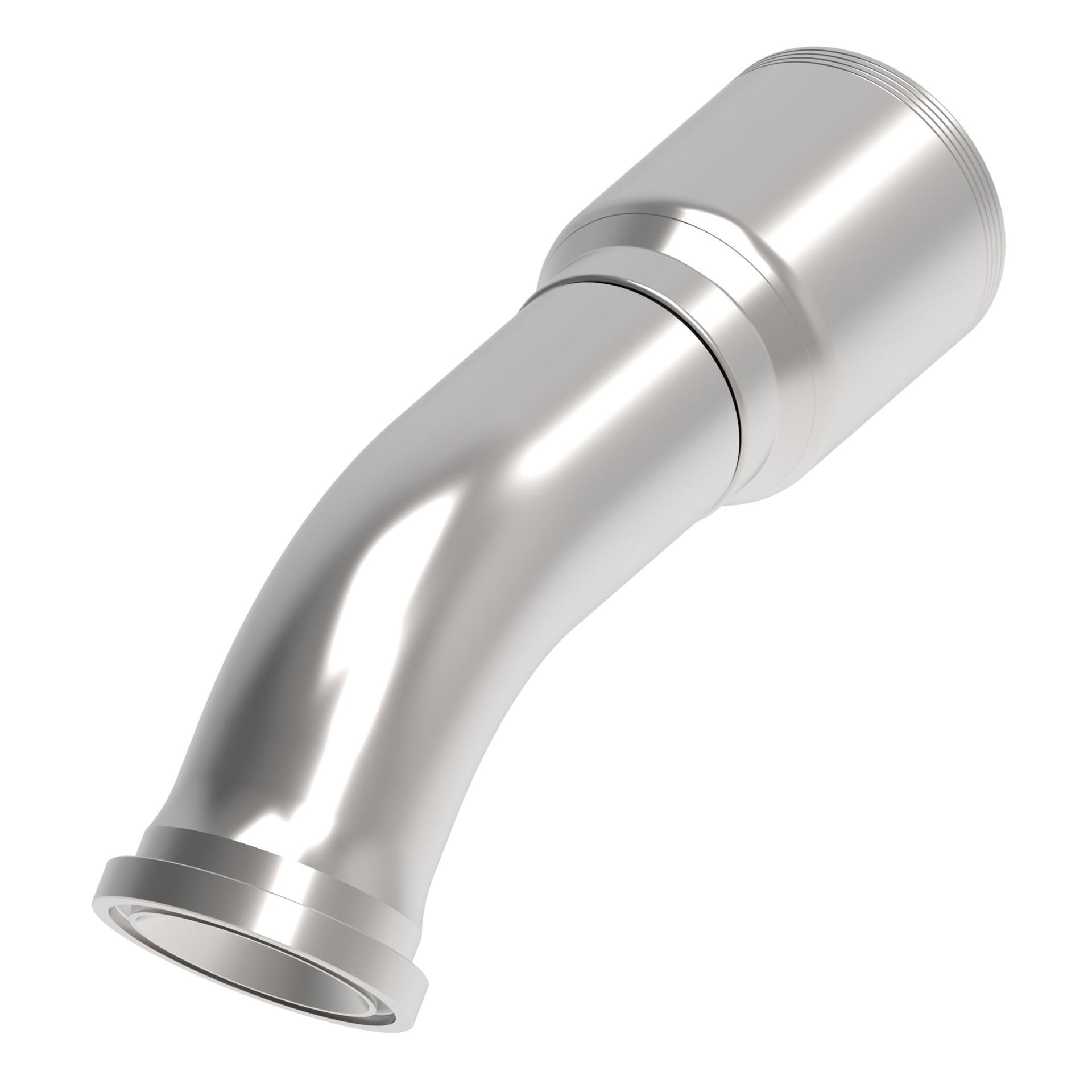

Hose Fittings 4S32FLA24 (RIGHT)

Ftng perm MM+ sprCD61 SPLIT FLNG - 45

4S32FLA24


Tools

Product specifications

Characteristic
Value
A dimension IN9.880
A dimension MM251.000
Angle shape45 Degree
BrandDanfoss
Compatible hose ID IN1.500
Construction StyleCrimp
Drop dimension IN2.260
Drop dimension MM57.50
End size 1-32
End Type 1Split flange code 61
Finish platingDura-Kote
Hose cut off factor IN6.810
Hose cut off factor MM173.000
Inside diameter IN1.220
Inside diameter MM31.100
Product height in5.060
Product height mm128.524
Product length in11.290
Product length mm286.766
Product materialCarbon steel
Product width in2.820
Product width mm71.628 mm
Thread sealantNo
Working pressure max bar206
Working pressure max psi2950
Working temperature max C100
Working temperature max F212
Working temperature min C-40
Working temperature min F-40

General specifications

Characteristic
Value
EAN815628022644
