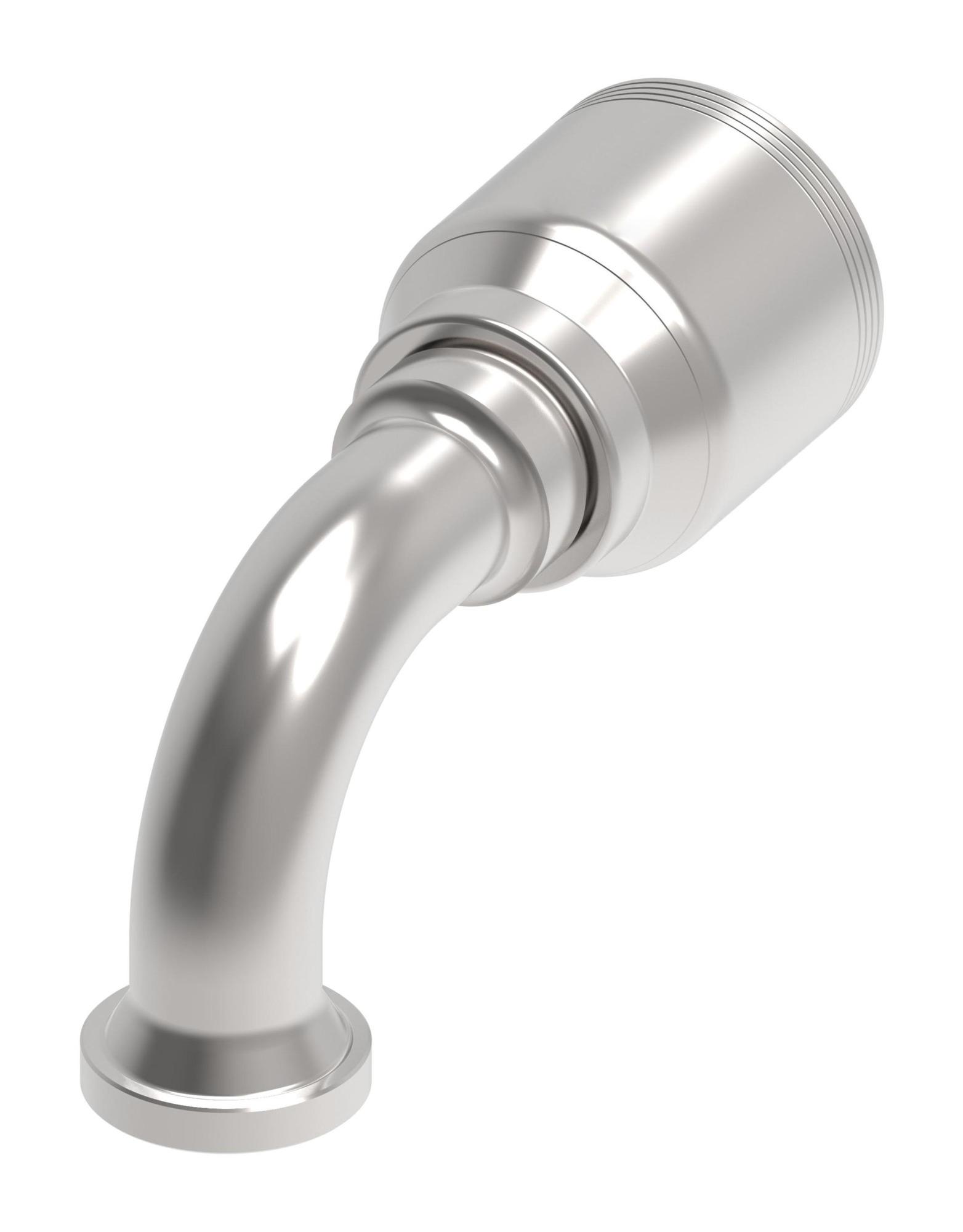

Danfoss 4S Series Crimp Hose Fittings SAE Code 61 Flange 90 Elbow 4SXXFLB20 (RIGHT)

Ftng (perm), 4-sprl, 61 Flange

4S40FLB32.120


Tools

Product specifications

Characteristic
Value
Angle shape90 Degree
BrandDanfoss
Construction StyleCrimp
Drop dimension IN5
Drop dimension MM120
Finish platingDura-Kote
Hose cut off factor IN5.600
Hose cut off factor MM142.240
Inside diameter IN1.660
Inside diameter MM42.164
Product materialCarbon steel
Thread sealantNo
