Hose Fittings 1BXXDSXX [RIGHT]

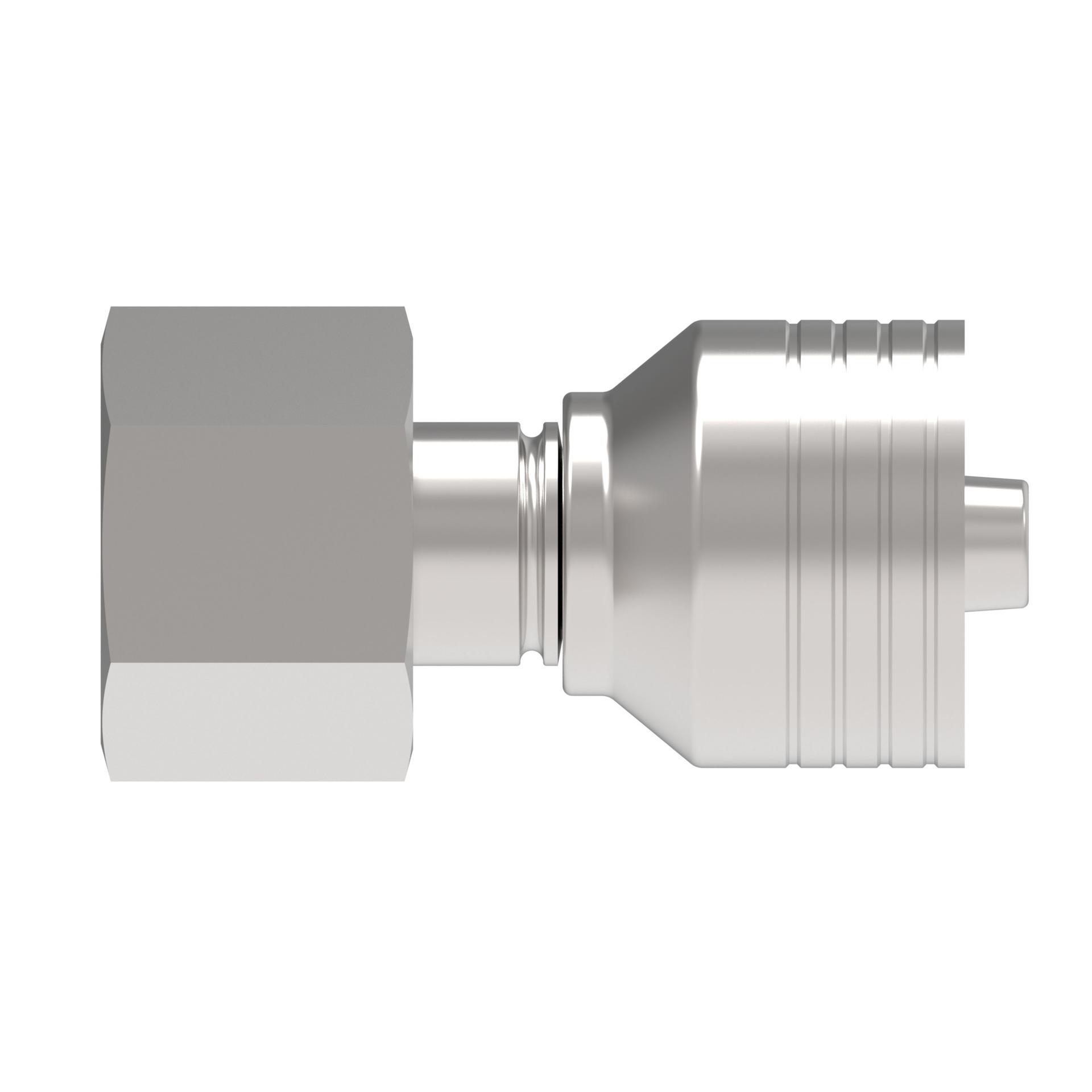

HOSE FTG, 4S/06, DKOH-B/08, CS, STR

4S8DS6

Tools

Product specifications

Characteristic
Value
A dimension IN2.120
A dimension MM53.800
Angle shapeStraight
BrandDanfoss
Compatible hose ID IN0.380
Construction StyleCrimp
End size 1-8
End type 124 deg. DKO swivel heavy duty
Finish platingDura-Kote
Hex size 1 IN0.944
Hex size 1 MM24.000
Hose cut off factor IN1.120
Hose cut off factor MM28.500
Inside diameter MM6.700
Product height in1.160
Product height mm29.464
Product length in2.140
Product length mm54.356
Product materialCarbon steel
Product width in1.160
Product width mm29.464
Seal materialNitrile (NBR)
Series4S/6S
Thread size 1M20x1.5

General specifications

Characteristic
Value
EAN/UPC815628029537
