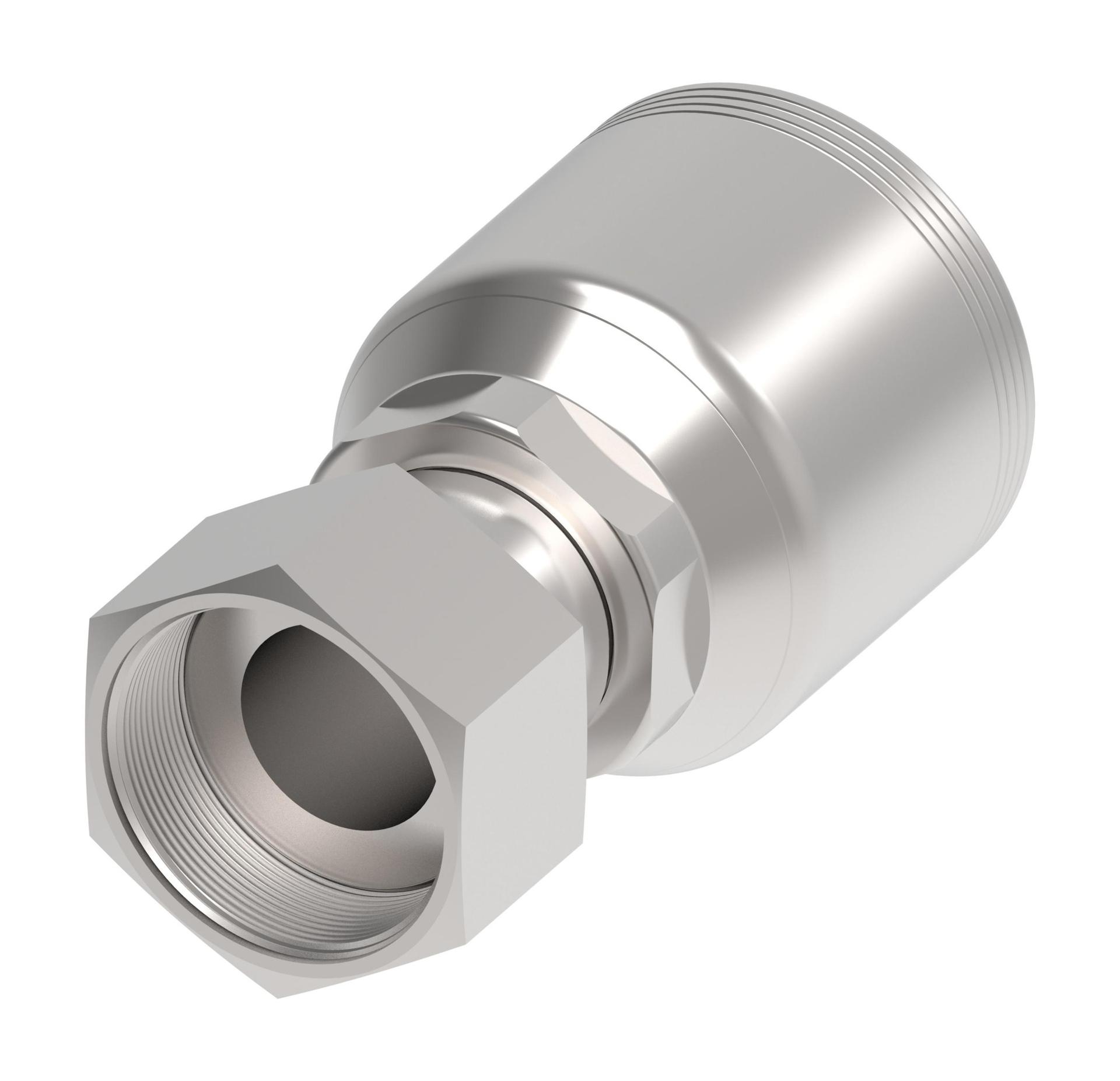

Danfoss 4S Series Crimp Hose Fittings Female ORS Swivel 4SAXXFR20 (RIGHT)

Ftng (Perm) 4S Series

4SA20FR16-BG


Tools

Product specifications

Characteristic
Value
Angle shapeStraight
BrandDanfoss
Compatible hose ID IN1.000
Compatible hose ID MM25.400
Compatible hosesEC525 (Size dependent)EC600 (Size dependent)EC810 (Size dependent)FC254 (Size dependent)FC273 (Size dependent)FC500 (Size dependent)FC636 (Size dependent)FC736 (Size dependent)GH493 (Size dependent)GH506 (Size dependent)GH755 (Size dependent)
Compatible tube OD IN1.25
Compatible tube OD MM31.750
CompliancesSAE J1176
Construction StyleCrimp
End size 1-20
End type 1Female ORFS swivel
Finish platingDura-Kote
Hex size 1 IN1.625
Hex size 1 MM41.275
Hex size 2 IN1.875
Hex size 2 MM47.625
Hose cut off factor IN1.680
Hose cut off factor MM42.672
Hose size-16
Inside diameter IN0.760
Inside diameter MM19.304
Product materialCarbon steel
Thread sealantNo
Tube OD 1 IN1.250
Tube OD 1 MM31.750
