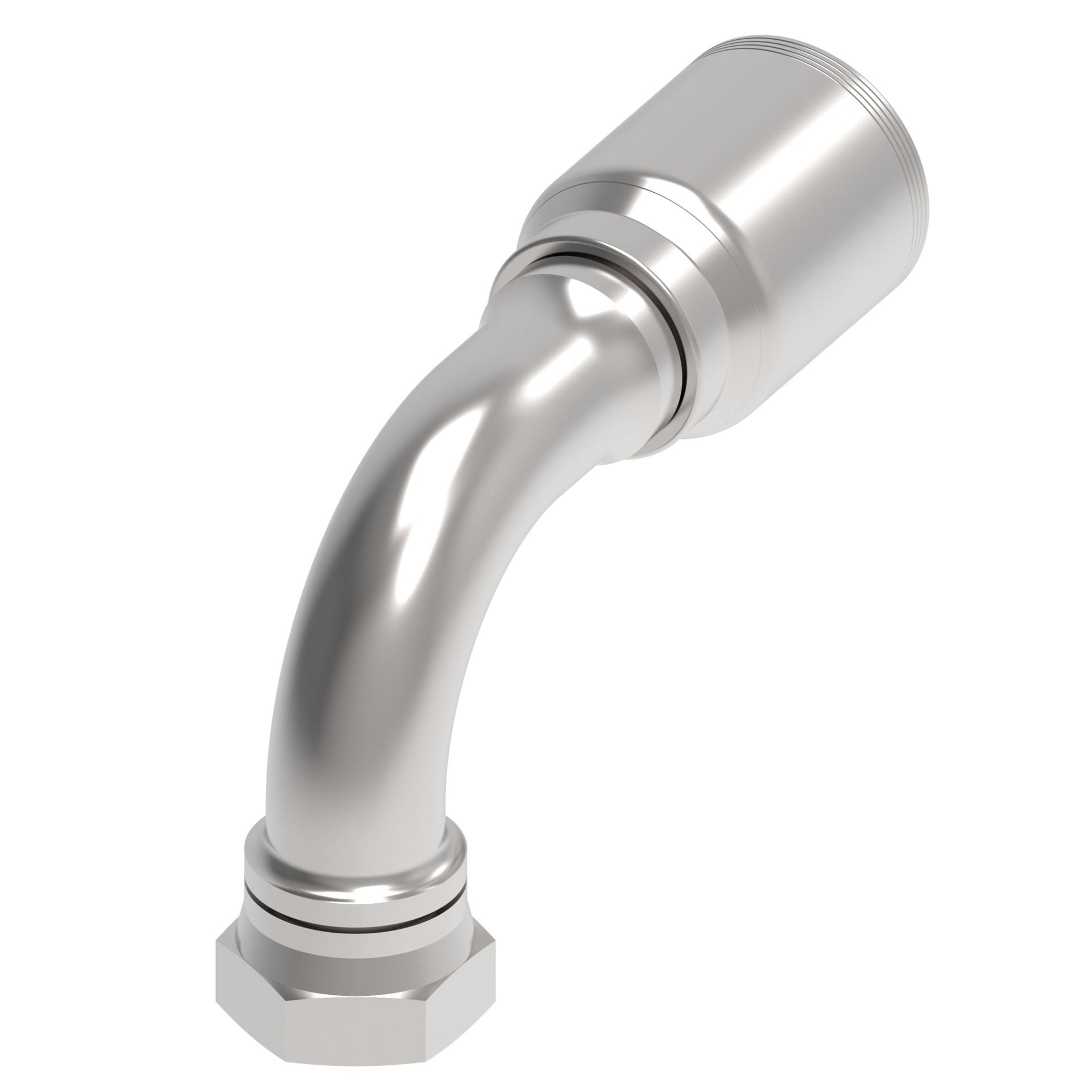

Hose Fittings 4SA24FJB24 (RIGHT)

Ftng perm 4-sprl 4SJIC/37 FEM SW - 90

4SA24FJB24


Tools

Product specifications

Characteristic
Value
A dimension IN8.220
A dimension MM208.900
Angle shape90 Degree
BrandDanfoss
Compatible hose ID IN1.500
Construction StyleCrimp
Drop dimension IN4.090
Drop dimension MM104.00
End size 1-24
End Type 1Female 37 degree swivel
Finish platingDura-Kote
Hex size 1 IN2.250
Hex size 1 MM57.000
Hose cut off factor IN5.150
Hose cut off factor MM130.800
Inside diameter IN1.220
Inside diameter MM31.100
Product height in6.250
Product height mm158.750
Product length in9.430
Product length mm239.522
Product materialCarbon steel
Product width in2.823
Product width mm71.704 mm
Thread sealantNo
Thread size 11 7/8-12 UN
Working pressure max bar138
Working pressure max psi2000
Working temperature max C100
Working temperature max F212
Working temperature min C-40
Working temperature min F-40

General specifications

Characteristic
Value
EAN815628022767
