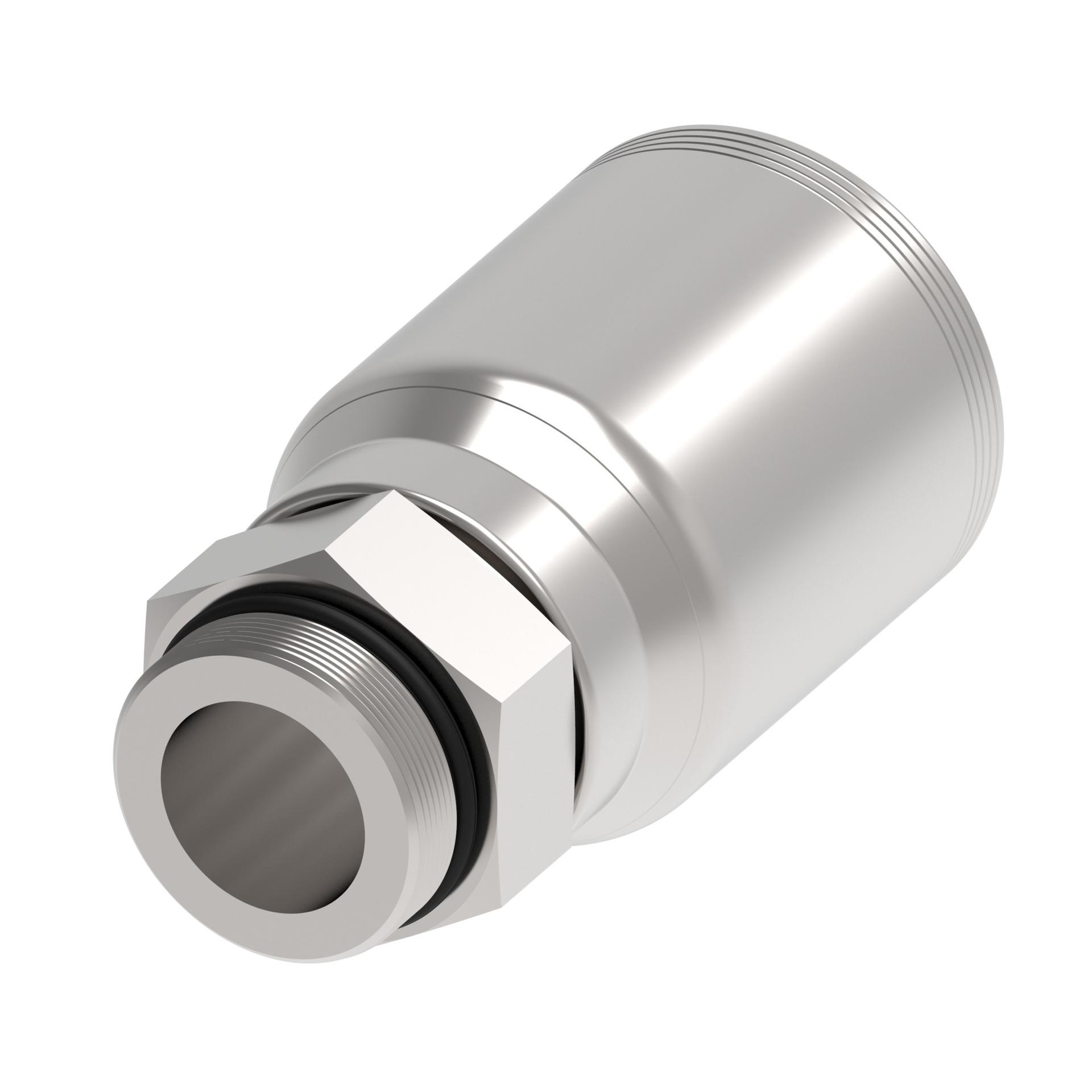

Hose Fittings 4SA24MB24 (RIGHT)

Ftng 4-sprl 4SORING BOSS MALE - STR

4SA24MB24


Tools

Product specifications

Characteristic
Value
A dimension IN5.280
A dimension MM134.100
Angle shapeStraight
BrandDanfoss
Compatible hose ID IN1.500
Construction StyleCrimp
End size 1-24
End Type 1Male ORB ISO 11926-3
Finish platingDura-Kote
Hex size 2 IN2.125
Hex size 2 MM53.970
Hose cut off factor IN2.210
Hose cut off factor MM56.000
Inside diameter IN1.220
Inside diameter MM31.100
Product height in2.820
Product height mm71.628
Product length in5.300
Product length mm134.620
Product materialCarbon steel
Product width in2.820
Product width mm71.628 mm
Seal materialNitrile (NBR)
Thread sealantNo
Thread size 11 7/8-12 UN
Working pressure max bar172
Working pressure max psi2500
Working temperature max C100
Working temperature max F212
Working temperature min C-40
Working temperature min F-40

General specifications

Characteristic
Value
EAN815628022804
