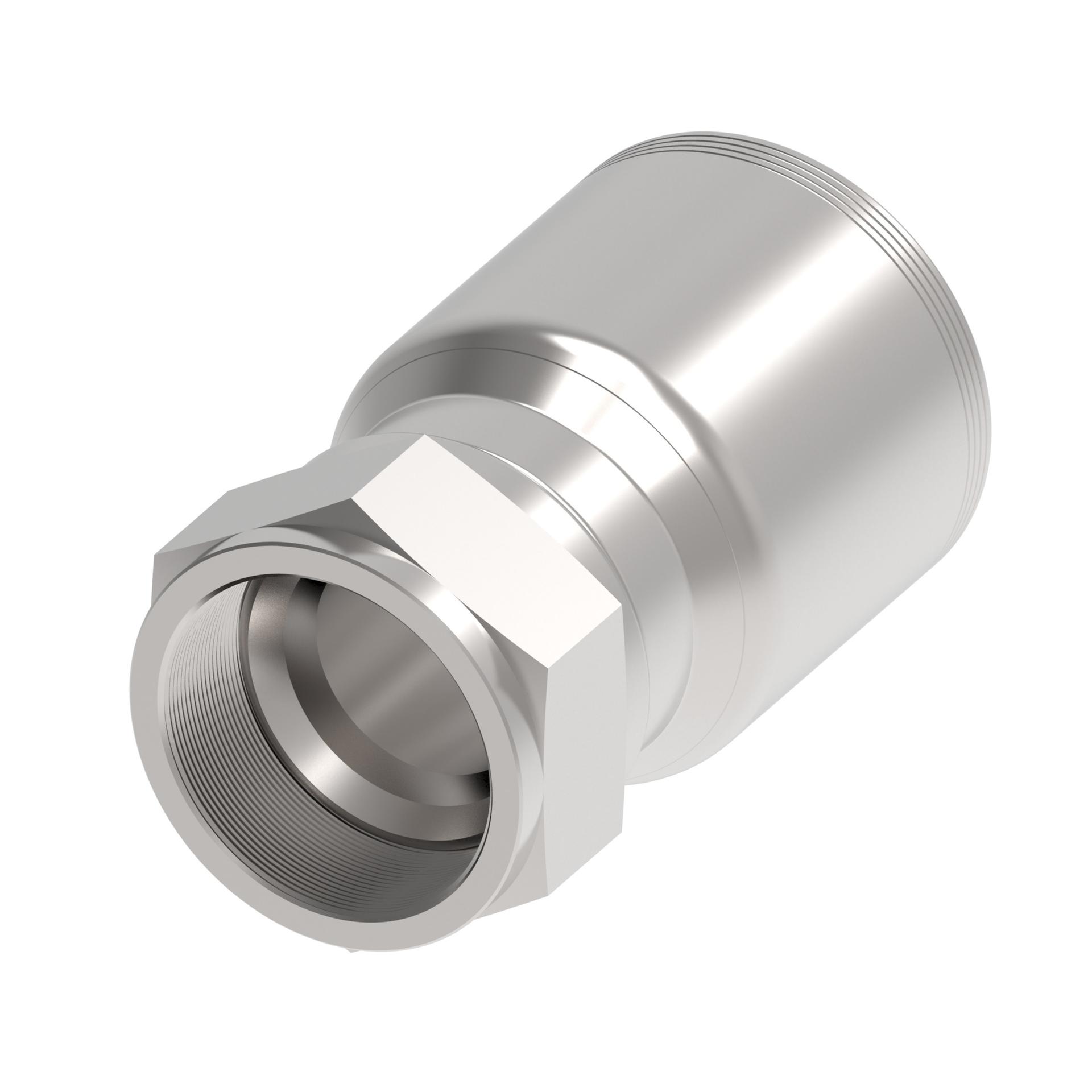

Hose Fittings 4S32FJ32 (RIGHT)

Ftng perm 4-sprl 4SJIC/37 FEM SW -STR

4SA32FJ32


Tools

Product specifications

Characteristic
Value
A dimension IN5.750
A dimension MM146.000
Angle shapeStraight
BrandDanfoss
Compatible hose ID IN2.000
Construction StyleCrimp
End size 1-32
End type 1Female 37 degree swivel
Finish platingDura-Kote
Hex size 1 IN2.875
Hex size 1 MM73.020
Hose cut off factor IN2.680
Hose cut off factor MM68.000
Inside diameter IN1.660
Inside diameter MM42.100
Product height in3.390
Product height mm86.106
Product length in5.800
Product length mm147.320
Product materialCarbon steel
Product width in3.390
Product width mm86.106 mm
Seal materialEthylene Propylene (EPDM)
Thread sealantNo
Thread size 12 1/2-12 UN
Working pressure max bar110
Working pressure max psi1600
Working temperature max C100
Working temperature max F212
Working temperature min C-40
Working temperature min F-40

General specifications

Characteristic
Value
EAN815628022835
