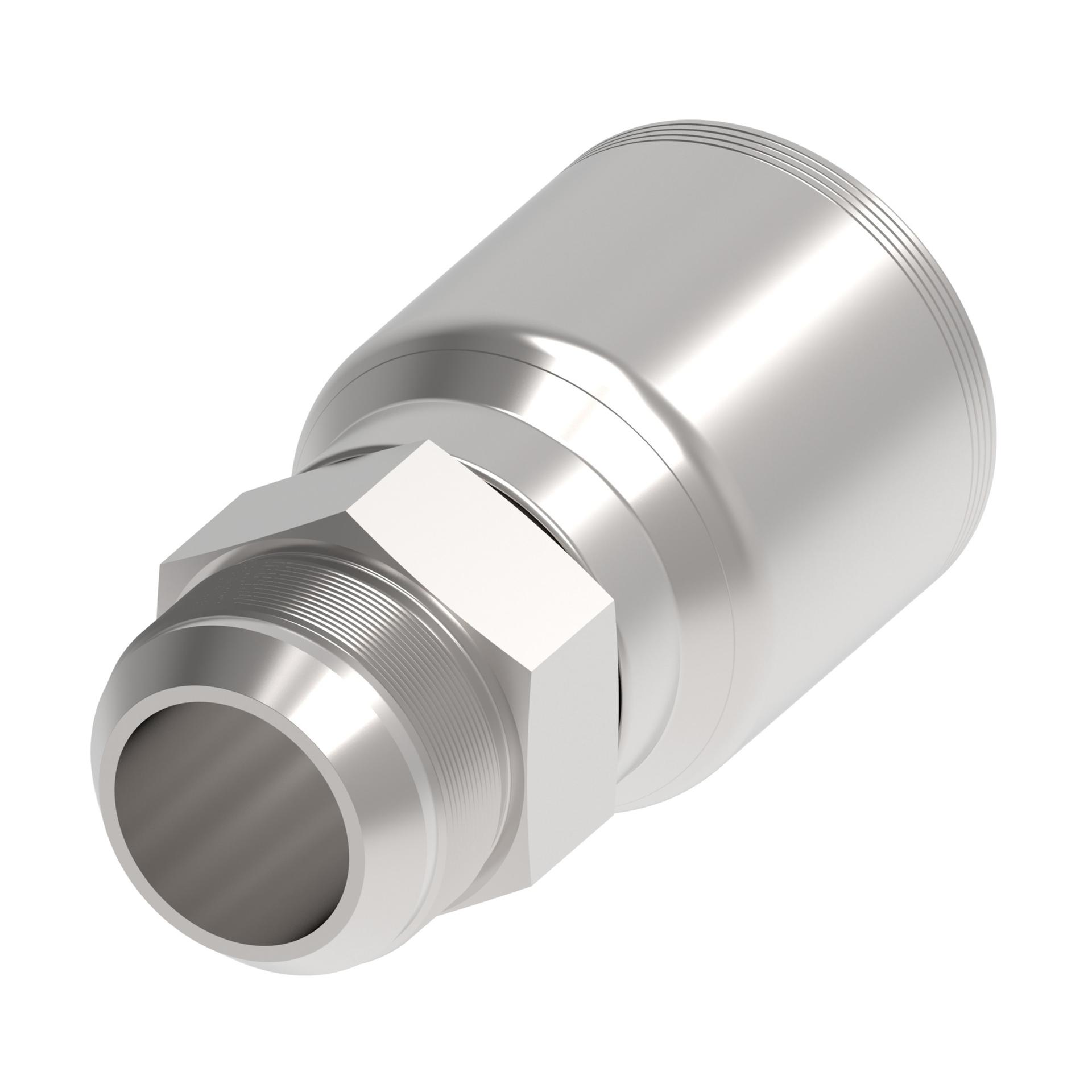

![Hose Fittings 4SA32MJ32 [RIGHT]](/_next/image?url=https%3A%2F%2Fassets.danfoss.com%2Fdrawings%2Fpreview%2Flatest%2F213670%2FID432875070814-0101_preview.jpg&w=1920&q=75)
Product specifications
Characteristic | Value |
|---|---|
| A dimension IN | 6.450 |
| A dimension MM | 163.800 |
| Angle shape | Straight |
| Brand | Danfoss |
| Compatible hose ID IN | 2.000 |
| Construction Style | Crimp |
| End size 1 | -32 |
| End type 1 | Male 37 degree |
| Finish plating | Dura-Kote |
| Hex size 2 IN | 2.625 |
| Hex size 2 MM | 66.700 |
| Hose cut off factor IN | 3.380 |
| Hose cut off factor MM | 85.800 |
| Inside diameter IN | 1.660 |
| Inside diameter MM | 42.100 |
| Product height in | 3.390 |
| Product height mm | 86.106 |
| Product length in | 6.500 |
| Product length mm | 165.100 |
| Product material | Carbon steel |
| Product width in | 3.390 |
| Product width mm | 86.106 mm |
| Seal material | Ethylene propylene (EPDM) |
| Thread sealant | No |
| Thread size 1 | 2 1/2-12 UN |
| Working pressure max bar | 86 |
| Working pressure max psi | 1250 |
| Working temperature max C | 100 |
| Working temperature max F | 212 |
| Working temperature min C | -40 |
| Working temperature min F | -40 |
General specifications
Characteristic | Value |
|---|---|
| EAN/UPC | 815628022842 |
