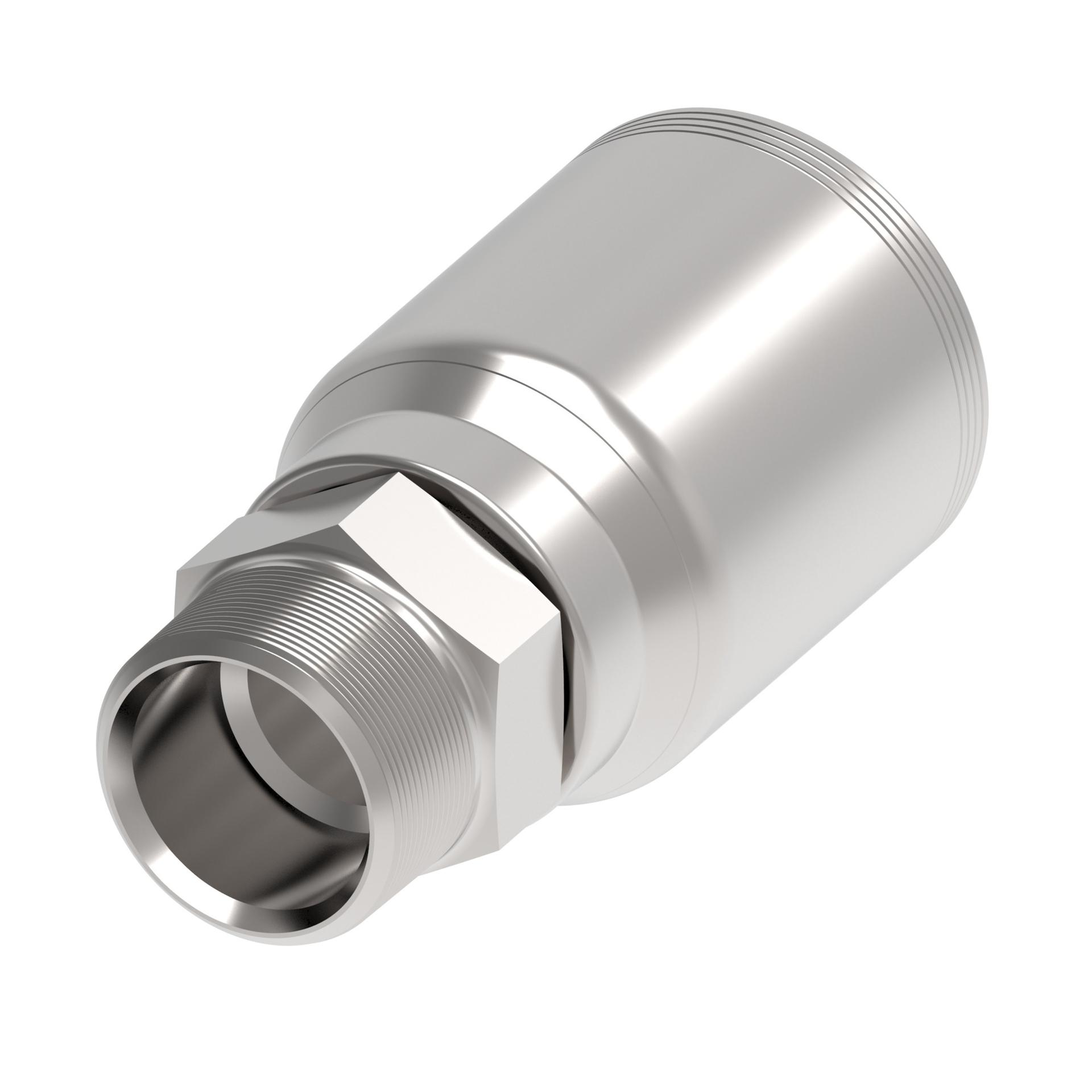

Hose Fittings 4SA24MP24 (RIGHT)

Ftng 4-sprl 4SMALE PIPE RIGID - STR

4SA32MP32


Tools

Product specifications

Characteristic
Value
A dimension IN5.910
A dimension MM150.100
Angle shapeStraight
BrandDanfoss
Compatible hose ID IN2.000
Construction StyleCrimp
End size 1-32
End Type 1Male pipe (NPTF)
Finish platingDura-Kote
Hex size 2 IN2.500
Hex size 2 MM63.500
Hose cut off factor IN2.840
Hose cut off factor MM72.100
Inside diameter IN1.660
Inside diameter MM42.100
Product height in3.390
Product height mm86.106
Product length in5.970
Product length mm151.638
Product materialCarbon steel
Product width in3.390
Product width mm86.106 mm
Seal materialEthylene Propylene (EPDM)
Thread sealantYes
Thread size 11 1/2-11 1/2 NPTF
Working pressure max bar110
Working pressure max psi1600
Working temperature max C100
Working temperature max F212
Working temperature min C-40
Working temperature min F-40

General specifications

Characteristic
Value
EAN815628022859
