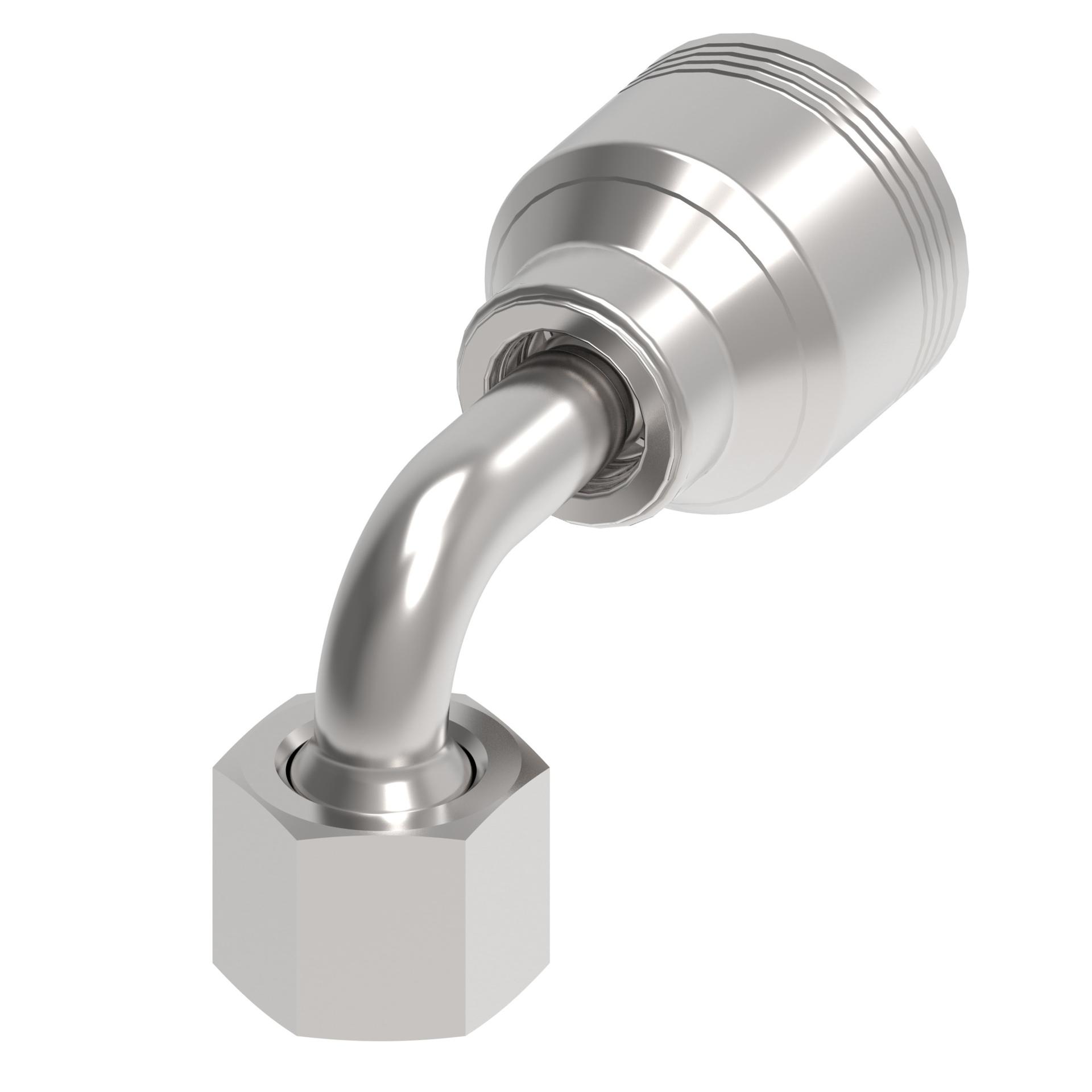

Hose Fittings 1BA6FRB6 [RIGHT]

HOSE FTG, 4S/06, ORS-F/06, CS, 90D

4SA6FRB6

Tools

Product specifications

Characteristic
Value
A dimension IN2.270
A dimension MM57.600
Angle shape90 Degree
BrandDanfoss
Compatible hose ID IN0.380
Construction StyleCrimp
Drop dimension IN0.900
Drop dimension MM22.9
End size 1-6
End Type 1Female ORFS swivel
Finish platingDura-Kote
Hex size 1 IN0.813
Hex size 1 MM20.637
Hose cut off factor IN1.340
Hose cut off factor MM34.100
Inside diameter IN0.240
Inside diameter MM6.200
Product height in1.680
Product height mm42.672
Product length in2.700
Product length mm68.580
Product materialCarbon steel
Product width in1.160
Product width mm29.464
Series4S/6S
Thread size 111/16-16 UN

General specifications

Characteristic
Value
EAN/UPC815628029681
