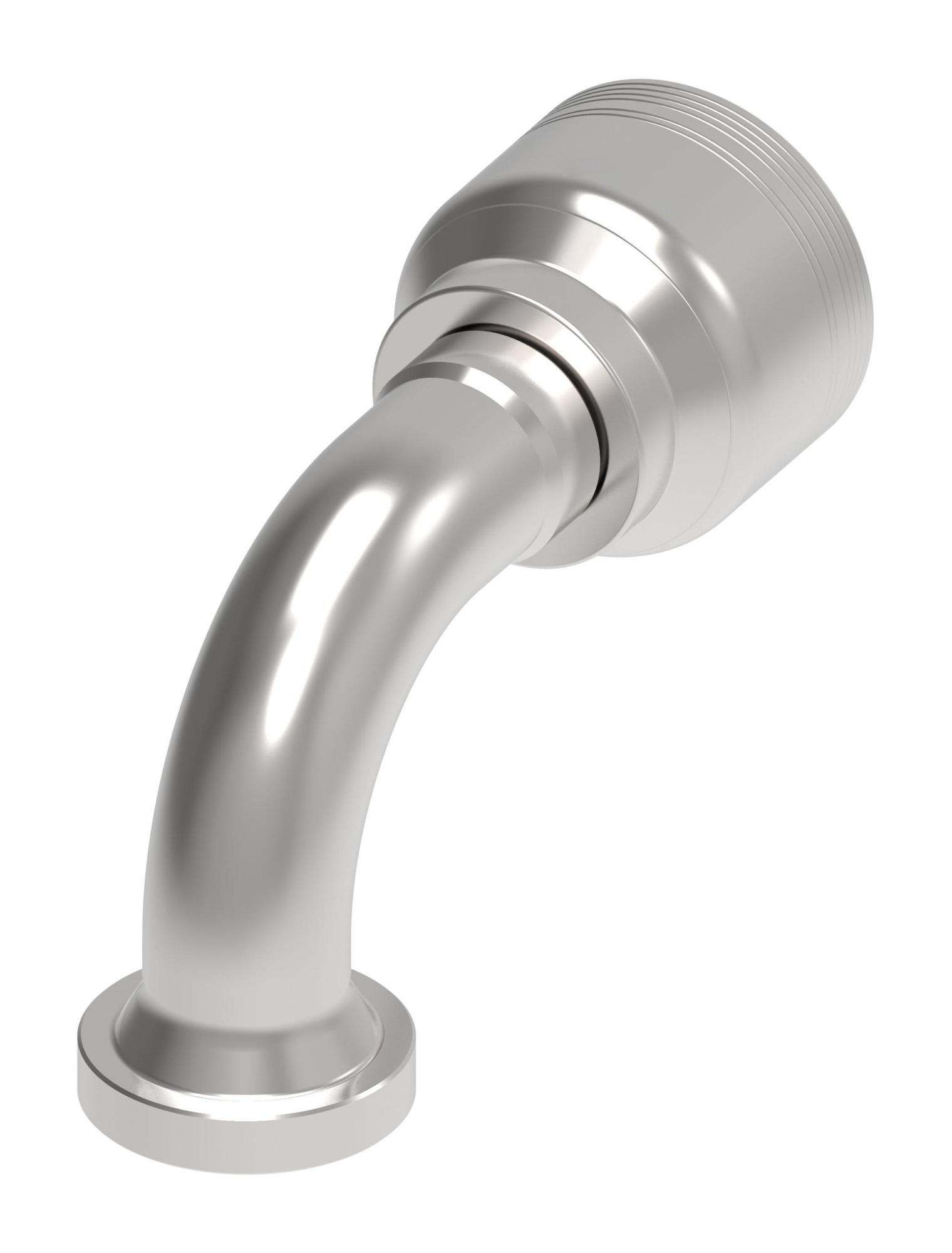

Danfoss 6S Series Crimp Hose Fittings SAE Code 62 Flange 90 Elbow 6SXXFHB16 (RIGHT)

Ftng (perm), 62-flg 6-sprl

6S16FHB16


Tools

Product specifications

Characteristic
Value
A dimension IN4.940
A dimension MM125.500
Angle shape90 Degree
Compatible hose ID IN1.000
Construction StyleCrimp
Drop dimension IN2.800
Drop dimension MM71.00
End size 1-16
End type 1Split flange code 62
Finish platingProtective oil
Hose cut off factor IN3.390
Hose cut off factor MM86.100
Inside diameter IN0.760
Inside diameter MM19.200
Product height in3.970
Product height mm100.838
Product length in5.880
Product length mm149.352
Product materialCarbon steel
Product width in2.340
Product width mm59.436 mm
Seal materialEthylene Propylene (EPDM)
Thread sealantNo
Working pressure max bar414
Working pressure max psi6000
Working temperature max C127
Working temperature max F260
Working temperature min C-40
Working temperature min F-40

General specifications

Characteristic
Value
EAN813688023281
