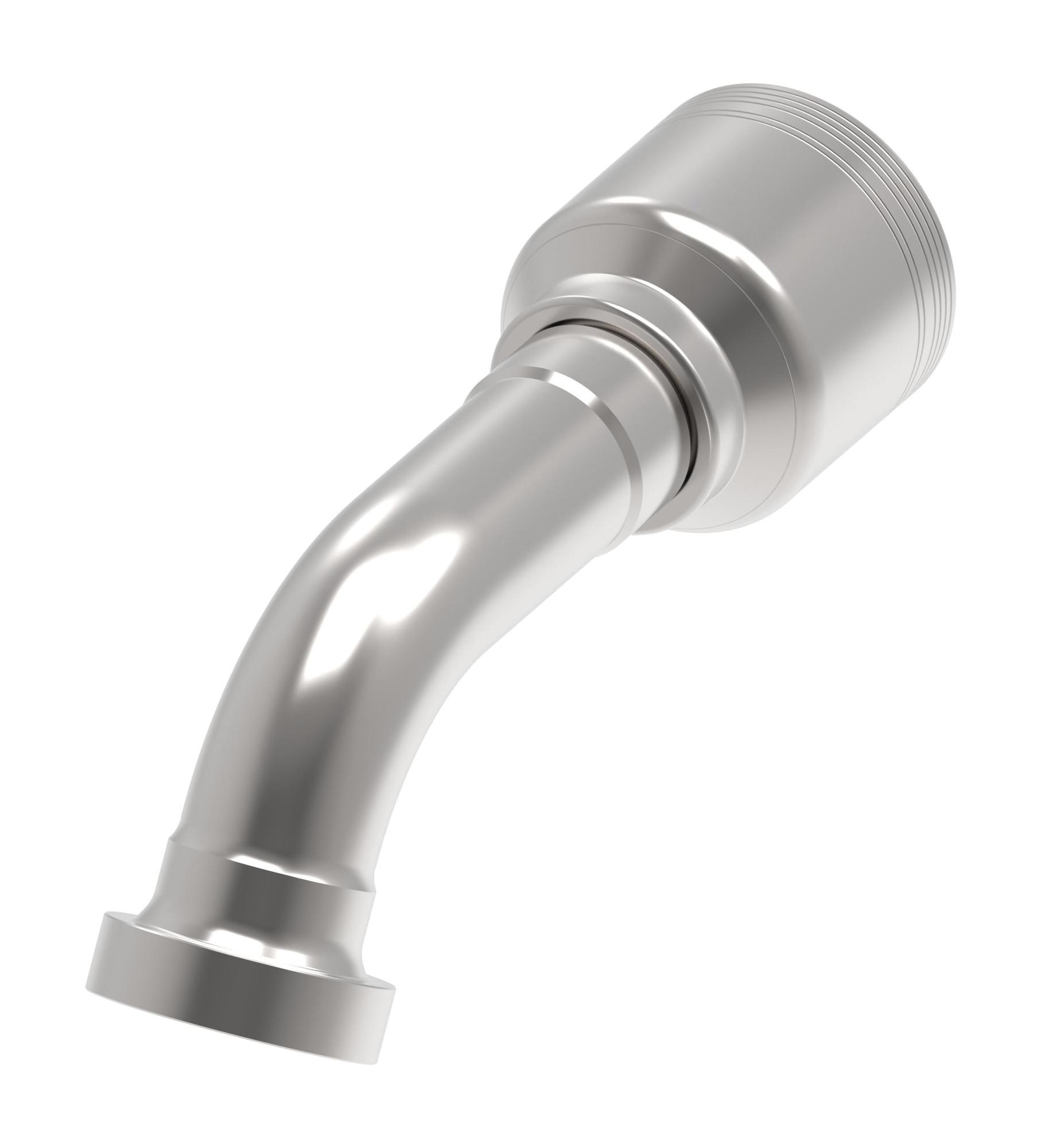

Product specifications
Characteristic | Value |
|---|---|
| A dimension IN | 7.980 |
| A dimension MM | 202.600 |
| Angle shape | 60 Degree |
| Brand | Danfoss |
| Compatible hose ID IN | 1.250 |
| Construction Style | Crimp |
| Drop dimension IN | 2.000 |
| Drop dimension MM | 59.00 |
| End size 1 | -20 |
| End type 1 | Caterpillar flange |
| Finish plating | Dura-Kote |
| Hose cut off factor IN | 5.770 |
| Hose cut off factor MM | 146.600 |
| Inside diameter IN | 0.990 |
| Inside diameter MM | 25.200 |
| Product height in | 4.230 |
| Product height mm | 107.442 |
| Product length in | 9.050 |
| Product length mm | 229.870 |
| Product material | Carbon steel |
| Product width in | 2.610 |
| Product width mm | 66.294 mm |
| Seal material | Ethylene propylene (EPDM) |
| Thread sealant | No |
| Working temperature max C | 127 |
| Working temperature max F | 260 |
| Working temperature min C | -40 |
| Working temperature min F | -40 |
General specifications
Characteristic | Value |
|---|---|
| EAN/UPC | 813688028873 |
