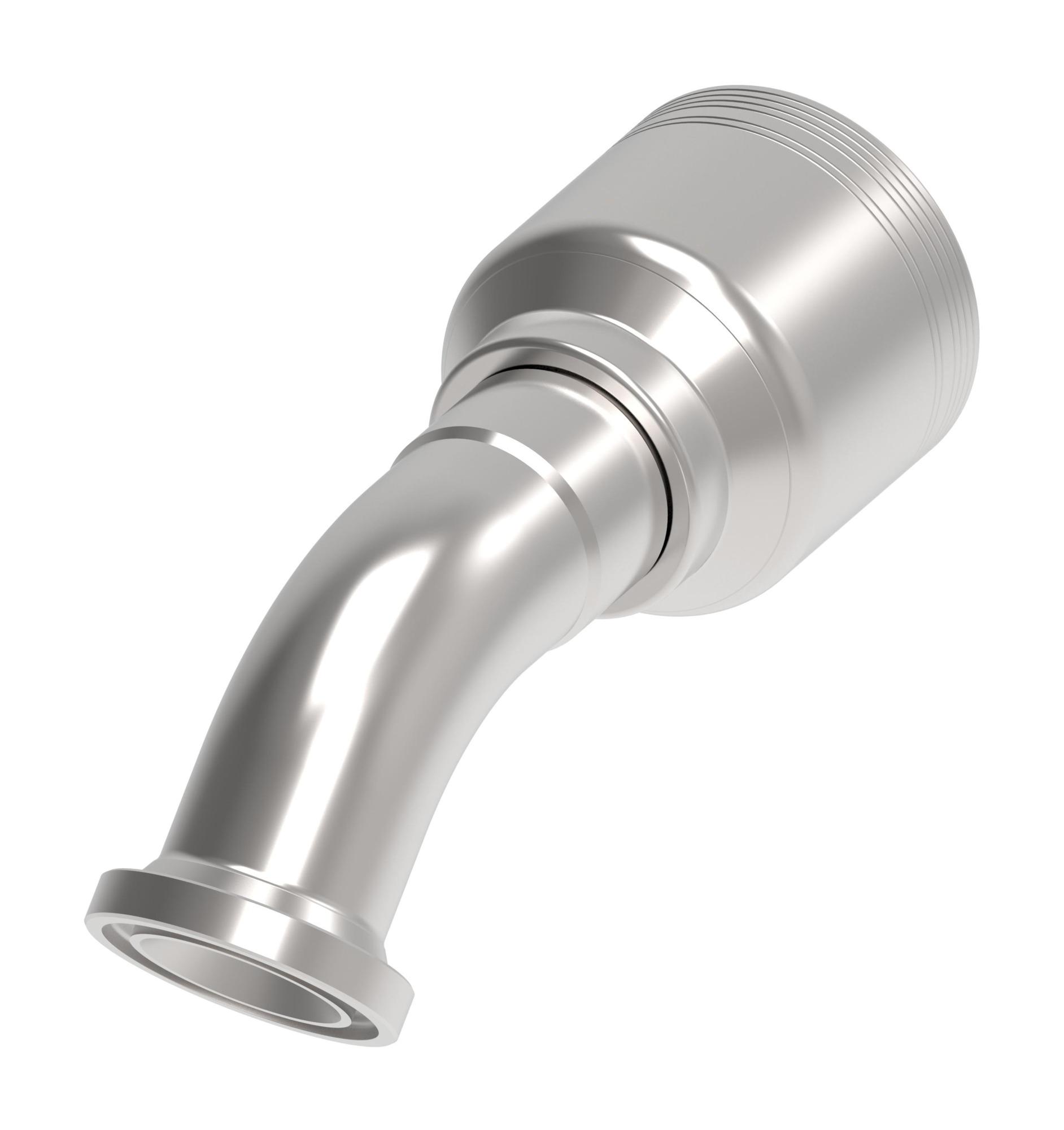

Hose Fittings 6SXXFLA20 (RIGHT)

HOSE FTG, 6S/20, C61/20, -S, 45D

6S20FLA20


Tools

Product specifications

Characteristic
Value
A dimension IN6.600
A dimension MM167.600
Angle shape45 Degree
BrandDanfoss
Compatible hose ID IN1.250
Construction StyleCrimp
Drop dimension IN1.540
Drop dimension MM39.00
End size 1-20
End type 1Split flange code 61
Finish platingDura-Kote
Hose cut off factor IN4.390
Hose cut off factor MM111.600
Inside diameter IN0.990
Inside diameter MM25.200
Product height in3.840
Product height mm97.536
Product length in7.600
Product length mm193.040
Product materialCarbon steel
Product width in2.610
Product width mm66.294 mm
Seal materialEthylene Propylene (EPDM)
Thread sealantNo
Working pressure max bar276
Working pressure max psi4000
Working temperature max C127
Working temperature max F260
Working temperature min C-40
Working temperature min F-40

General specifications

Characteristic
Value
EAN813688028743
