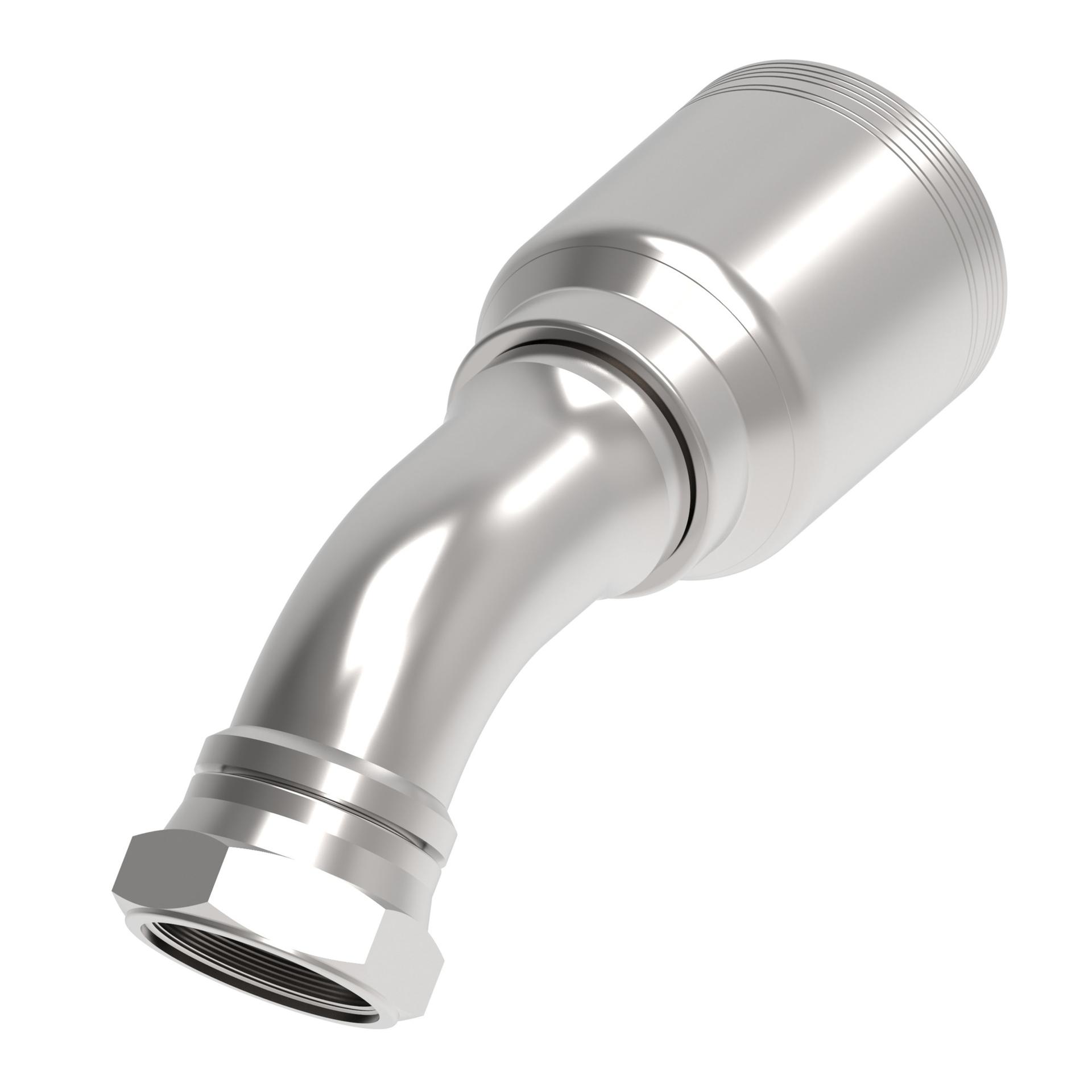

Product specifications
Characteristic | Value |
|---|---|
| A dimension IN | 8.200 |
| A dimension MM | 208.300 |
| Angle shape | 45 Degree |
| Brand | Danfoss |
| Compatible hose ID IN | 1.500 |
| Compatible hose ID MM | 38.100 |
| Compatible hoses | FC500 (Size dependent) |
| Compatible tube OD IN | 2.00 |
| Compatible tube OD MM | 50.800 |
| Compliances | SAE J1176 |
| Construction Style | Crimp |
| Drop dimension IN | 1.670 |
| Drop dimension MM | 42.40 |
| End size 1 | -24 |
| End Type 1 | Female BSPP swivel |
| Finish plating | Dura-Kote |
| Hex size 1 IN | 2.165 |
| Hex size 1 MM | 55.000 |
| Hex size 2 IN | 2.165 |
| Hex size 2 MM | 54.991 |
| Hose cut off factor IN | 5.130 |
| Hose cut off factor MM | 130.300 |
| Hose size | -24 |
| Inside diameter IN | 1.220 |
| Inside diameter MM | 31.100 |
| Product height in | 4.730 |
| Product height mm | 120.142 |
| Product length in | 9.780 |
| Product length mm | 248.412 |
| Product material | Carbon steel |
| Product width in | 2.960 |
| Product width mm | 75.184 mm |
| Seal material | Ethylene Propylene (EPDM) |
| Thread sealant | No |
| Thread size 1 | G 1 1/2 |
| Tube OD 1 IN | 2.000 |
| Tube OD 1 MM | 50.800 |
| Working pressure max BAR | 138 |
| Working pressure max PSI | 2000 |
| Working temperature max C | 127 |
| Working temperature max F | 260 |
| Working temperature min C | -40 |
| Working temperature min F | -40 |
General specifications
Characteristic | Value |
|---|---|
| EAN/UPC | 815628022873 |
