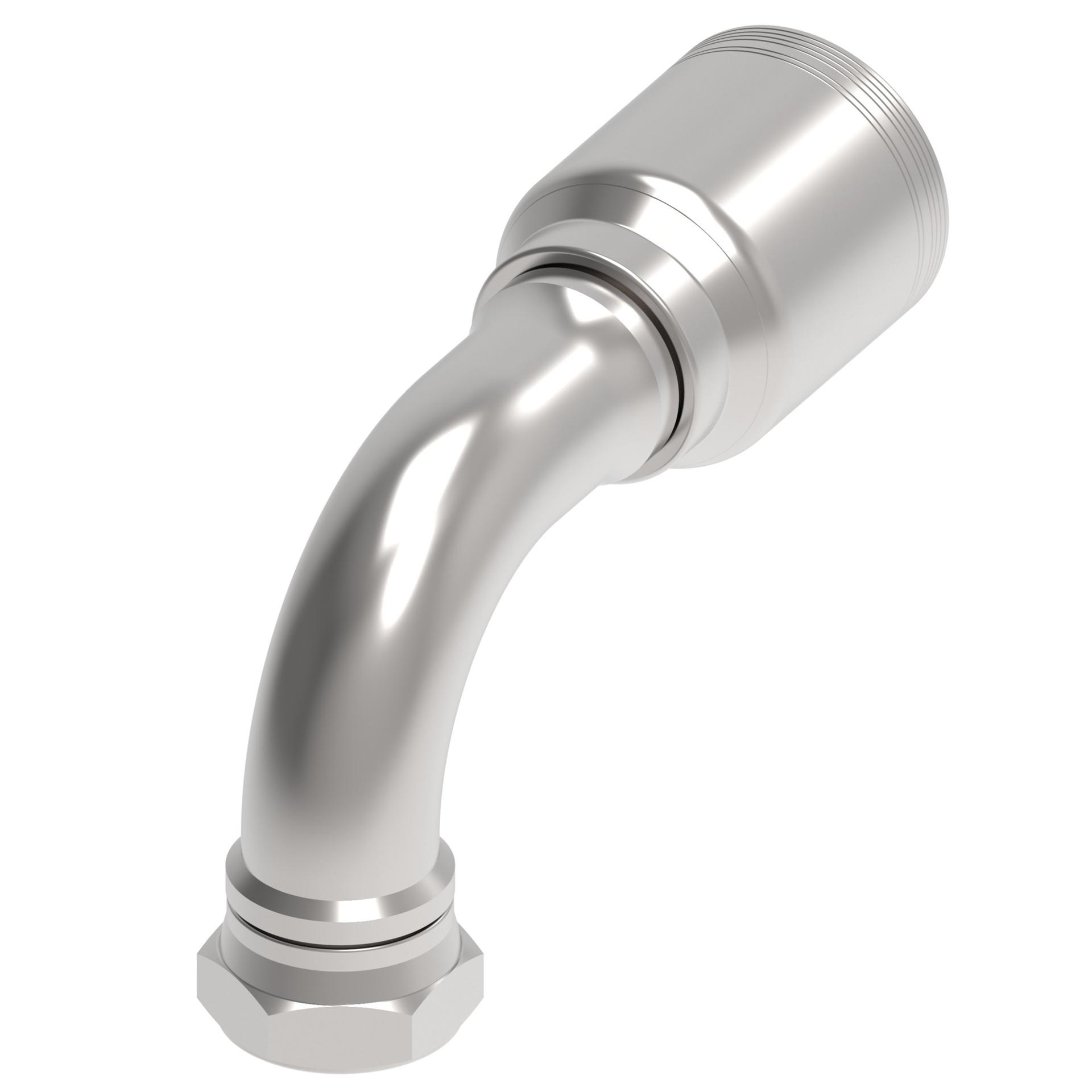

Product specifications
Characteristic | Value |
|---|---|
| A dimension IN | 8.070 |
| A dimension MM | 205.100 |
| Angle shape | 90 Degree |
| Brand | Danfoss |
| Compatible hose ID IN | 1.500 |
| Construction Style | Crimp |
| Drop dimension IN | 3.880 |
| Drop dimension MM | 98.60 |
| End size 1 | -24 |
| End Type 1 | Female BSPP swivel |
| Finish plating | Dura-Kote |
| Hex size 1 IN | 2.165 |
| Hex size 1 MM | 55.000 |
| Hose cut off factor IN | 5.000 |
| Hose cut off factor MM | 127.000 |
| Inside diameter IN | 1.220 |
| Inside diameter MM | 31.100 |
| Product height in | 5.870 |
| Product height mm | 149.098 |
| Product length in | 9.200 |
| Product length mm | 233.680 |
| Product material | Carbon steel |
| Product width in | 2.960 |
| Product width mm | 75.184 mm |
| Seal material | Ethylene propylene (EPDM) |
| Thread sealant | No |
| Thread size 1 | G 1 1/2 |
| Working pressure max bar | 138 |
| Working pressure max psi | 2000 |
| Working temperature max C | 127 |
| Working temperature max F | 260 |
| Working temperature min C | -40 |
| Working temperature min F | -40 |
General specifications
Characteristic | Value |
|---|---|
| EAN/UPC | 815628022880 |
