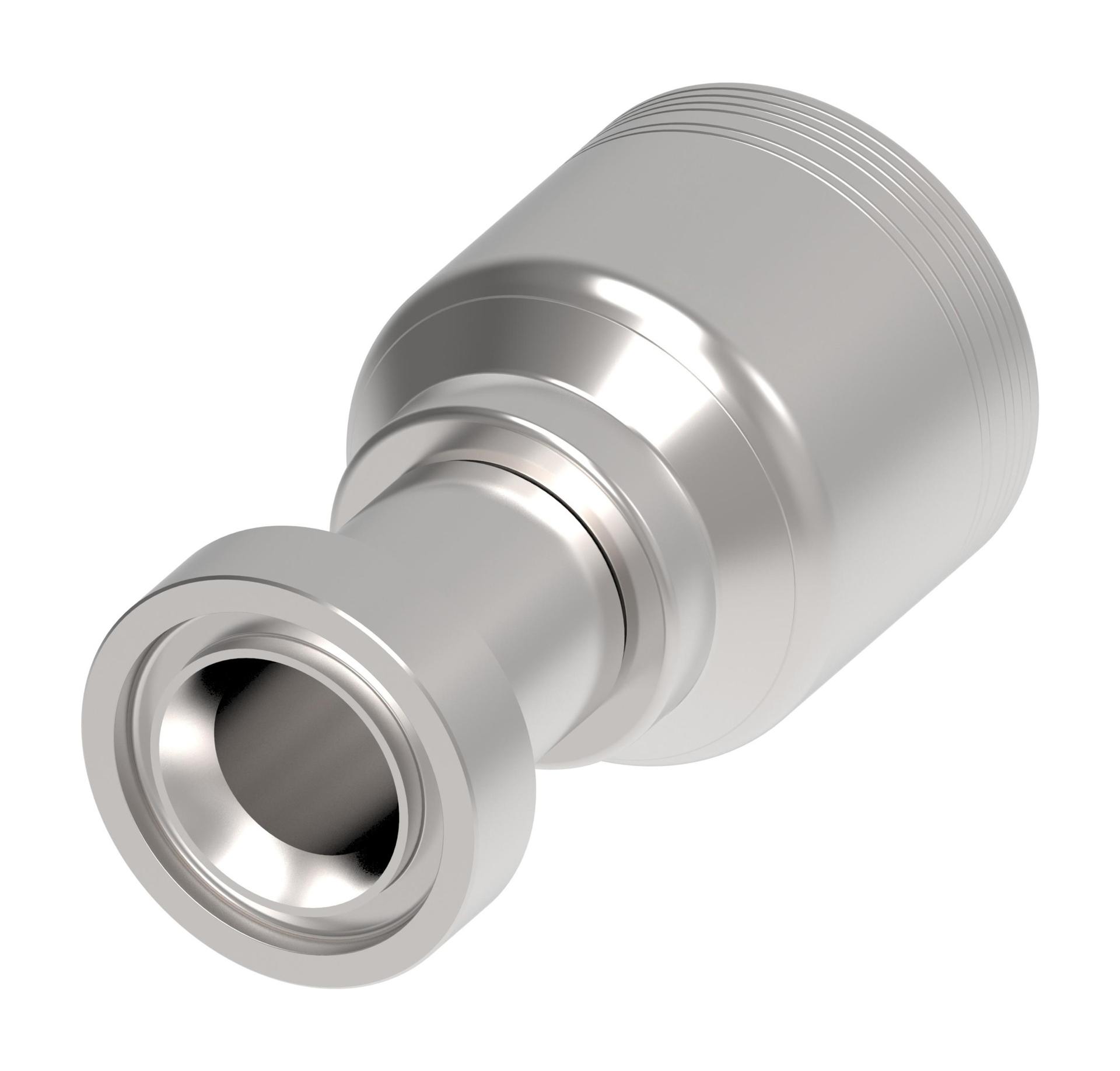

Hose Fittings 6SXXCT20 (RIGHT)

HOSE FTG, 6S/20, CATFL/24, -S

6S24CT20


Tools

Product specifications

Characteristic
Value
A dimension IN5.190
A dimension MM131.800
Angle shapeStraight
BrandDanfoss
Compatible hose ID IN1.250
Construction StyleCrimp
End size 1-24
End type 1Caterpillar flange
Finish platingDura-Kote
Hose cut off factor IN2.990
Hose cut off factor MM75.900
Inside diameter IN0.990
Inside diameter MM25.200
Product height in2.610
Product height mm66.294
Product length in5.190
Product length mm131.826
Product materialCarbon steel
Product width in2.610
Product width mm66.294 mm
Seal materialEthylene Propylene (EPDM)
Thread sealantNo
Working temperature max C127
Working temperature max F260
Working temperature min C-40
Working temperature min F-40

General specifications

Characteristic
Value
EAN678146154149
