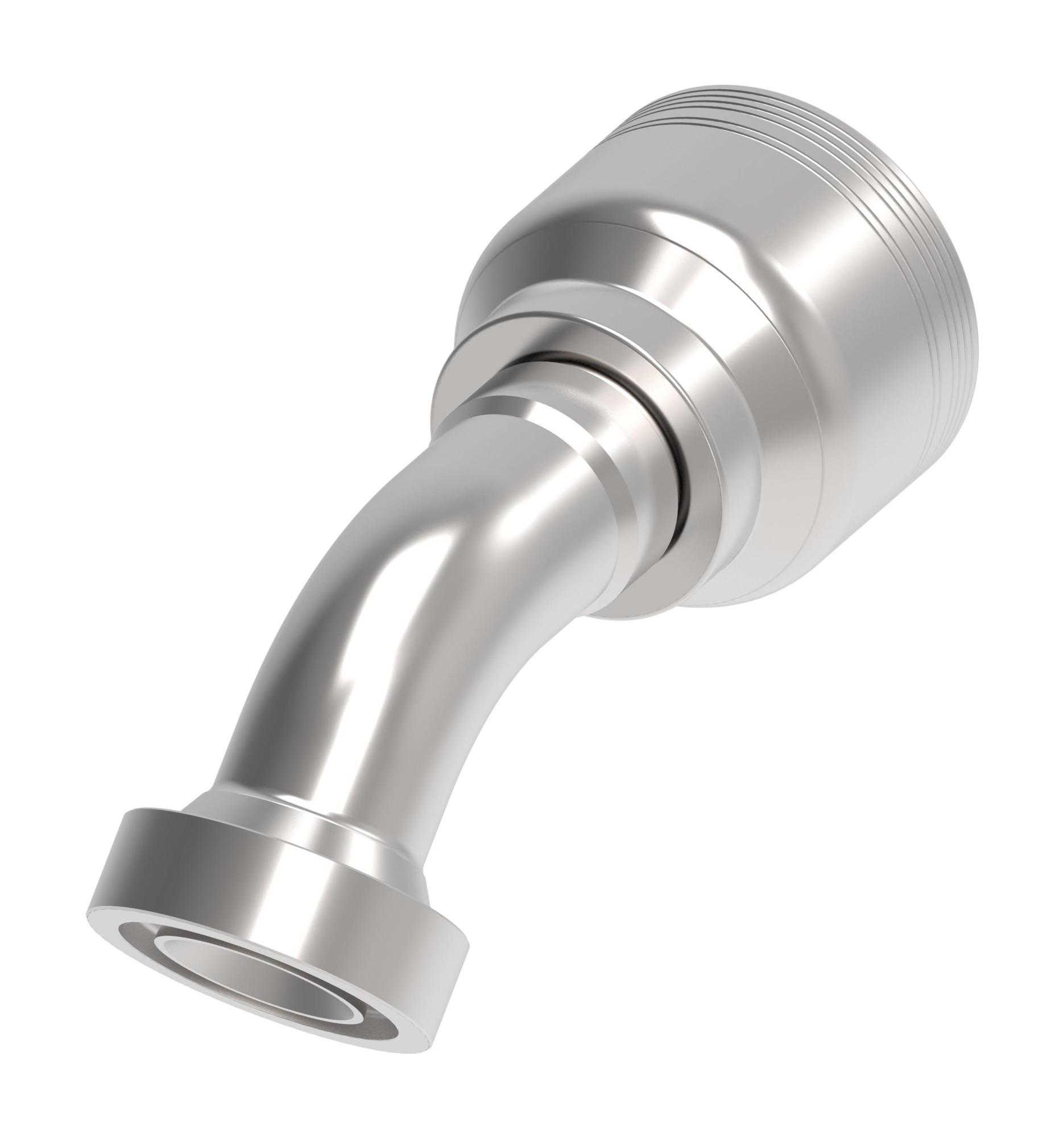

Danfoss 6S Series Crimp Hose Fittings CAT Flange 45 Elbow 6SXXCTA16 (RIGHT)

Ftng (perm), other6-sprl cat flange 45

6S24CTA20


Tools

Product specifications

Characteristic
Value
A dimension IN7.300
A dimension MM185.300
Angle shape45 Degree
BrandDanfoss
Compatible hose ID IN1.250
Construction StyleCrimp
Drop dimension IN1.820
Drop dimension MM46.20
End size 1-24
End type 1Caterpillar flange
Finish platingDura-Kote
Hose cut off factor IN5.080
Hose cut off factor MM129.100
Inside diameter IN0.990
Inside diameter MM25.200
Product height in4.370
Product height mm110.998
Product length in8.550
Product length mm217.170
Product materialCarbon steel
Product width in2.610
Product width mm66.294 mm
Seal materialEthylene Propylene (EPDM)
Thread sealantNo
Working temperature max C127
Working temperature max F260
Working temperature min C-40
Working temperature min F-40

General specifications

Characteristic
Value
EAN813688029108
