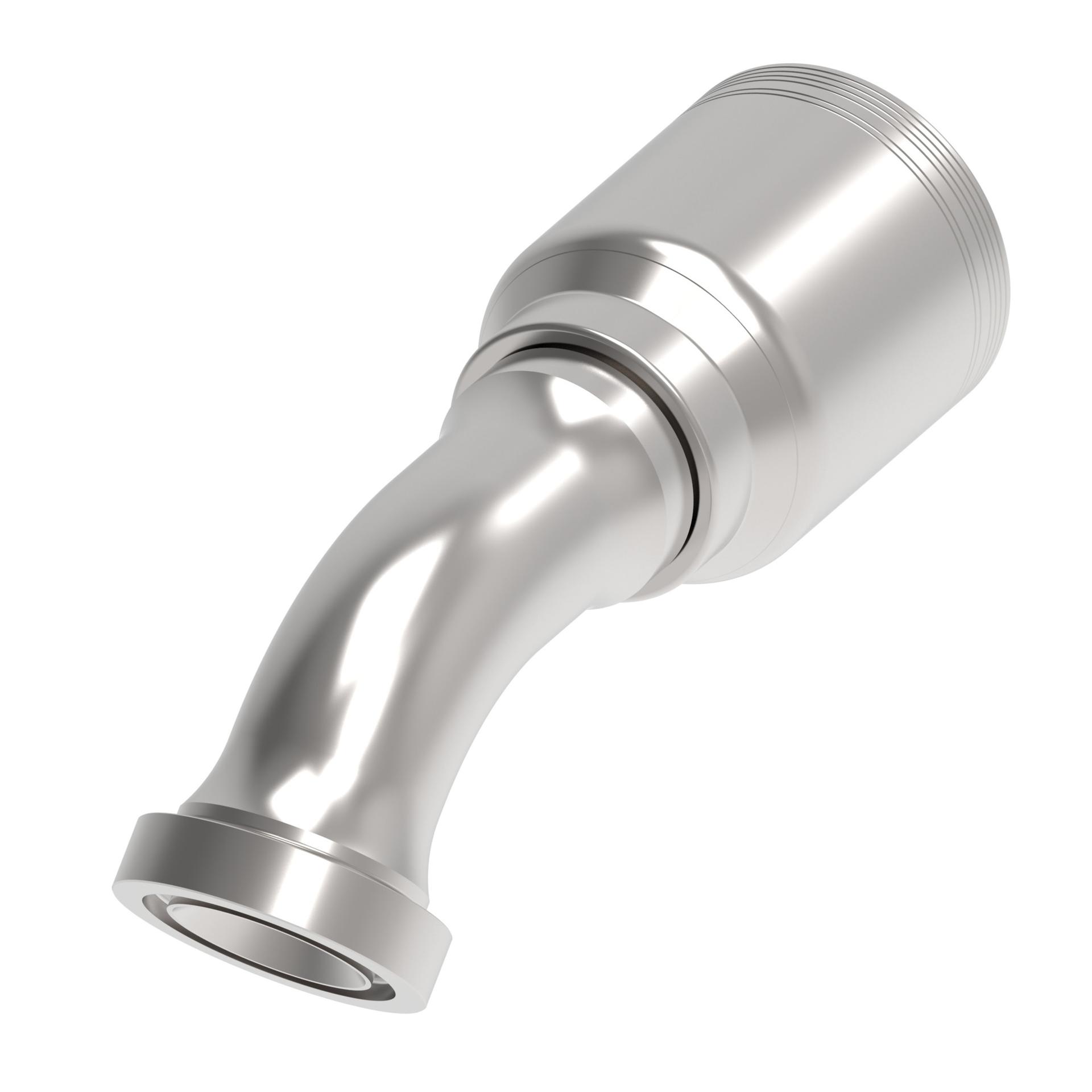

Hose Fittings 6S24CTA24 (RIGHT)

HOSE FTG, 6S/24, CATFL/24, -S, 45D

6S24CTA24


Tools

Product specifications

Characteristic
Value
A dimension IN8.470
A dimension MM215.200
Angle shape45 Degree
BrandDanfoss
Compatible hose ID IN1.500
Construction StyleCrimp
Drop dimension IN1.820
Drop dimension MM46.20
End size 1-24
End Type 1Caterpillar flange
Finish platingDura-Kote
Hose cut off factor IN5.400
Hose cut off factor MM137.200
Inside diameter IN1.220
Inside diameter MM31.100
Product height in4.540
Product height mm115.316
Product length in9.720
Product length mm246.888
Product materialCarbon steel
Product width in2.940
Product width mm74.676 mm
Seal materialEthylene Propylene (EPDM)
Thread sealantNo
Working temperature max C127
Working temperature max F260
Working temperature min C-40
Working temperature min F-40

General specifications

Characteristic
Value
EAN815628022903
