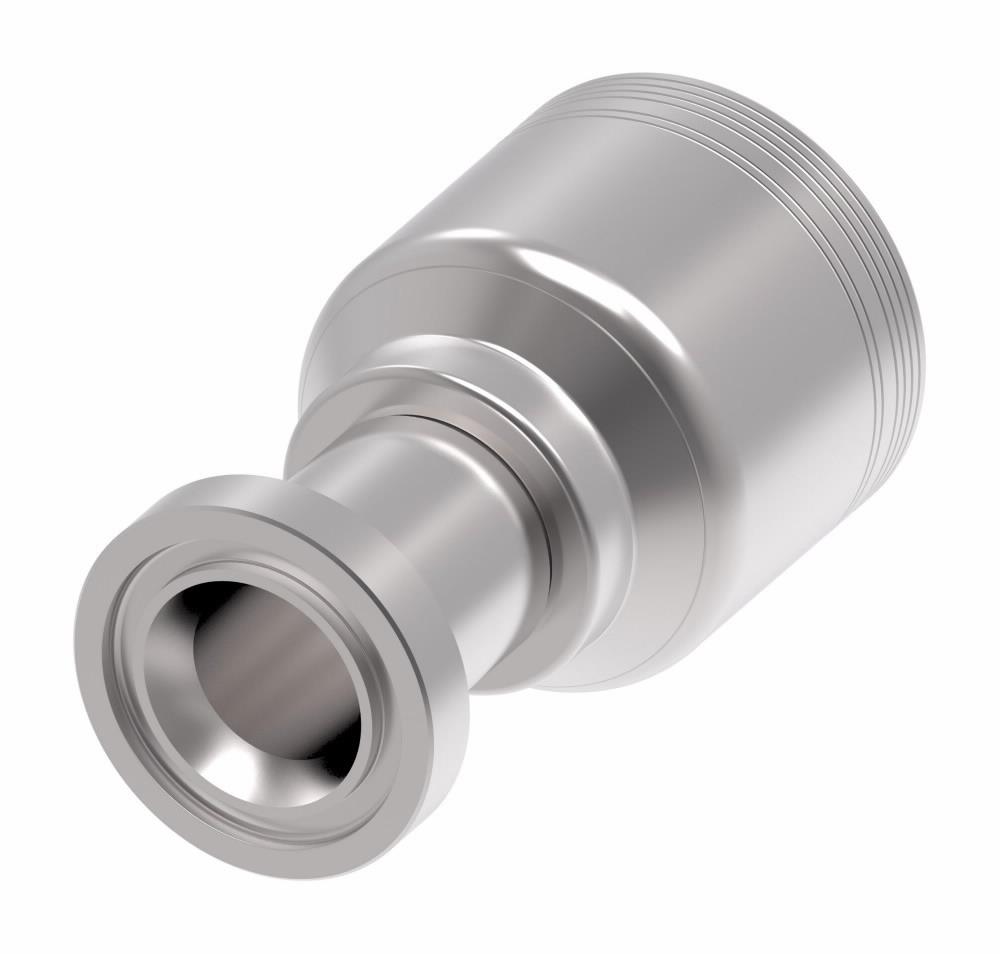

Danfoss 6S Series Crimp Hose Fittings SAE Code 62 Flange 6SXXFH20 (RIGHT)

HOSE FTG, 6S/20, C62/24, -S

6S24FH20


Tools

Product specifications

Characteristic
Value
A dimension IN5.110
A dimension MM129.800
Angle shapeStraight
BrandDanfoss
Compatible hose ID IN1.250
Construction StyleCrimp
End size 1-24
End Type 1Split flange code 62
Finish platingDura-Kote
Hose cut off factor IN2.910
Hose cut off factor MM73.900
Inside diameter IN0.990
Inside diameter MM25.200
Product height in2.610
Product height mm66.294
Product length in5.110
Product length mm129.794
Product materialCarbon steel
Product width in2.610
Product width mm66.294 mm
Seal materialEthylene Propylene (EPDM)
Thread sealantNo
Working pressure max bar414
Working pressure max psi6000
Working temperature max C127
Working temperature max F260
Working temperature min C-40
Working temperature min F-40

General specifications

Characteristic
Value
EAN678146154156
