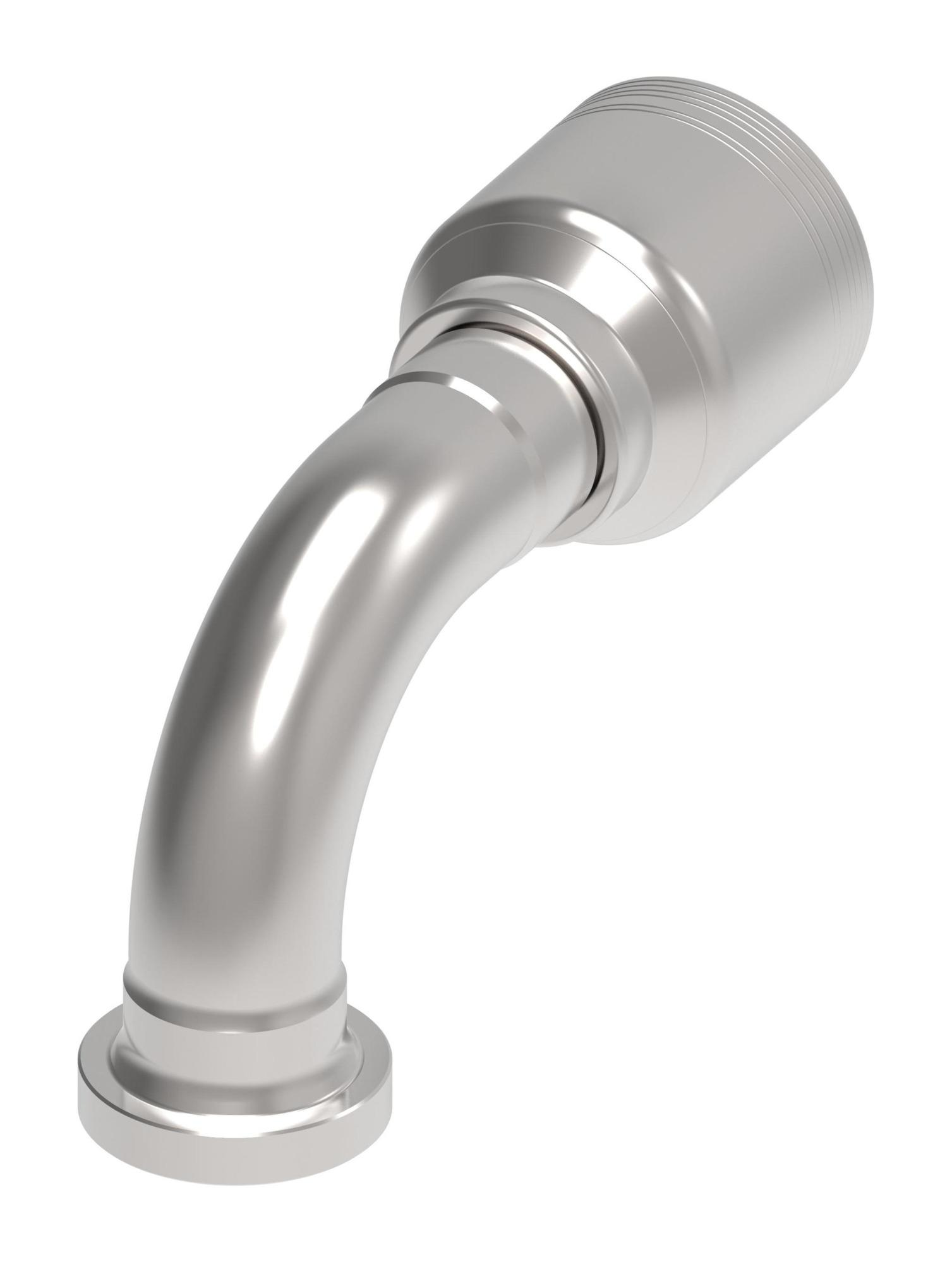

Product specifications
Characteristic | Value |
|---|---|
| A dimension IN | 5.570 |
| A dimension MM | 141.600 |
| Angle shape | 90 Degree |
| Compatible hose ID IN | 1.250 |
| Compatible hose ID MM | 31.800 |
| Construction Style | Crimp |
| Drop dimension IN | 3.070 |
| Drop dimension MM | 78.00 |
| End connection torque | 218-240 lb-ft(296-325 Nm) |
| End size 1 | -24 |
| End Type 1 | Split flange code 62 |
| Finish plating | Dura-Kote |
| Hose cut off factor IN | 3.370 |
| Hose cut off factor MM | 85.600 |
| Hose size | -20 |
| Inside diameter IN | 0.990 |
| Inside diameter MM | 25.200 |
| Product material | Carbon steel |
| Series | 4S/6S |
| Working pressure max BAR | 414 |
| Working pressure max PSI | 6000 |
