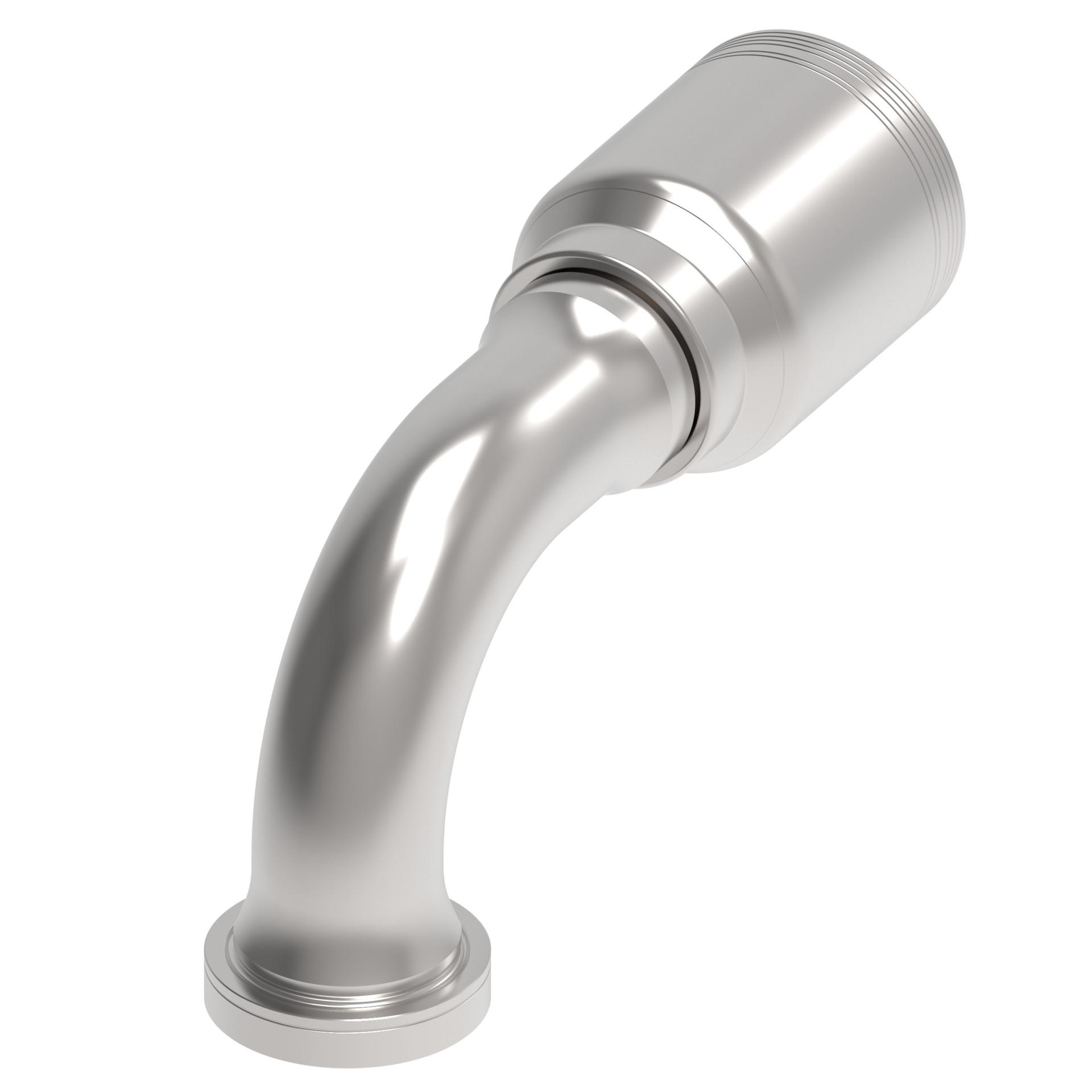

Hose Fittings 6S24FHB24 (RIGHT)

HOSE FTG, 6S/24, C62/24, -S, 90D

6S24FHB24


Tools

Product specifications

Characteristic
Value
A dimension IN8.220
A dimension MM208.900
Angle shape90 Degree
BrandDanfoss
Compatible hose ID IN1.500
Construction StyleCrimp
Drop dimension IN4.090
Drop dimension MM104.00
End size 1-24
End Type 1Split flange code 62
Finish platingDura-Kote
Hose cut off factor IN5.150
Hose cut off factor MM130.800
Inside diameter IN1.220
Inside diameter MM31.100
Product height in5.580
Product height mm141.732
Product length in9.500
Product length mm241.300
Product materialCarbon steel
Product width in2.970
Product width mm75.438 mm
Seal materialEthylene Propylene (EPDM)
Thread sealantNo
Working pressure max bar414
Working pressure max psi6000
Working temperature max C127
Working temperature max F260
Working temperature min C-40
Working temperature min F-40

General specifications

Characteristic
Value
EAN815628022989
