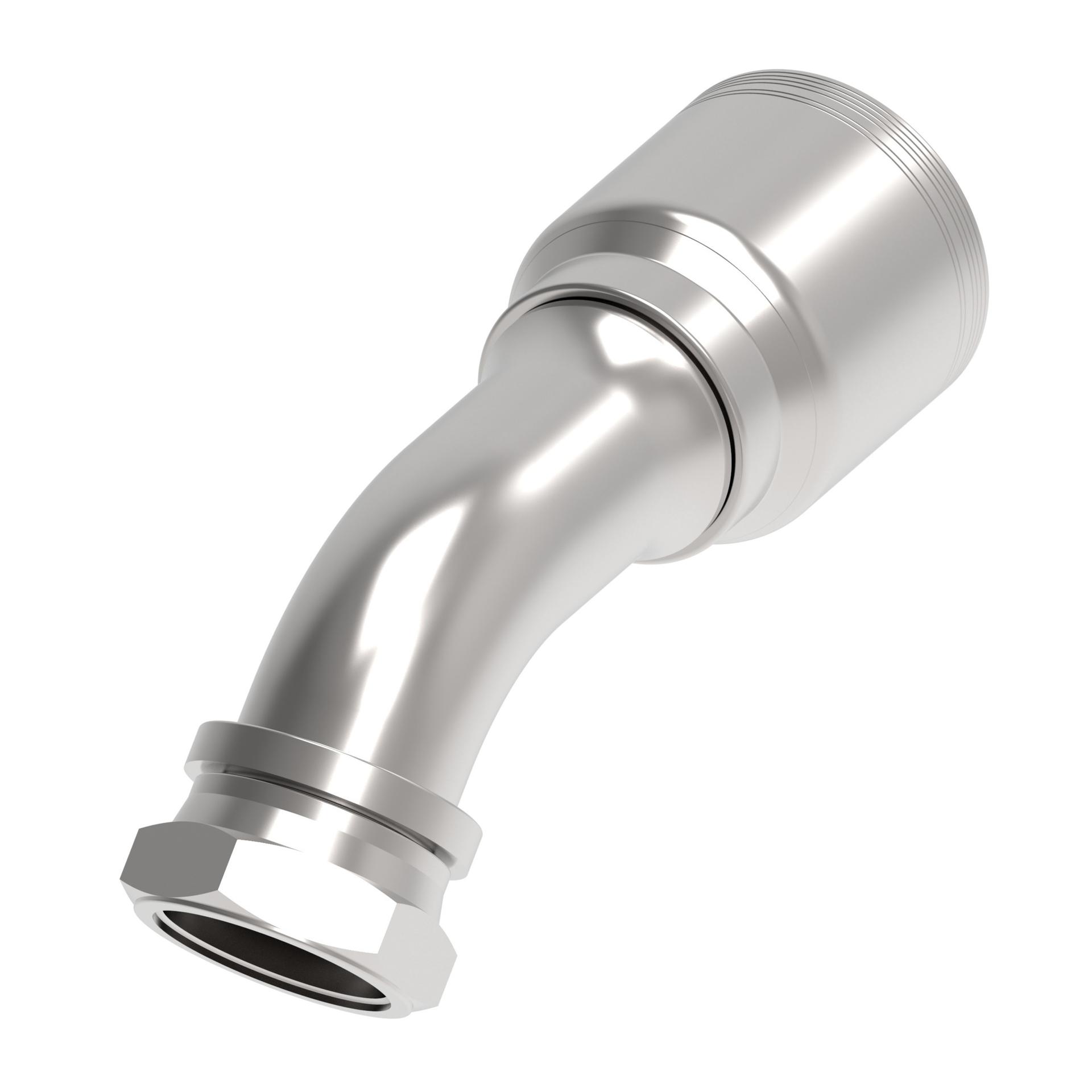

Product specifications
Characteristic | Value |
|---|---|
| A dimension IN | 9.780 |
| A dimension MM | 248.400 |
| Angle shape | 45 Degree |
| Brand | Danfoss |
| Compatible hose ID IN | 2.000 |
| Compatible hose ID MM | 50.800 |
| Compatible hoses | FC500 (Size dependent) |
| Compatible tube OD IN | 2.00 |
| Compatible tube OD MM | 50.800 |
| Compliances | SAE J1176 |
| Construction Style | Crimp |
| Drop dimension IN | 2.130 |
| Drop dimension MM | 54.10 |
| End size 1 | -32 |
| End type 1 | Female BSPP swivel |
| Finish plating | Dura-Kote |
| Hex size 1 IN | 2.756 |
| Hex size 1 MM | 70.000 |
| Hex size 2 IN | 2.750 |
| Hex size 2 MM | 69.850 |
| Hose cut off factor IN | 6.710 |
| Hose cut off factor MM | 170.400 |
| Hose size | -32 |
| Inside diameter IN | 1.660 |
| Inside diameter MM | 42.100 |
| Product height in | 5.900 |
| Product height mm | 149.860 |
| Product length in | 11.800 |
| Product length mm | 299.720 |
| Product material | Carbon steel |
| Product width in | 3.560 |
| Product width mm | 90.424 mm |
| Seal material | Ethylene Propylene (EPDM) |
| Thread sealant | No |
| Thread size 1 | G 2 |
| Tube OD 1 IN | 2.000 |
| Tube OD 1 MM | 50.800 |
| Working pressure max bar | 110 |
| Working pressure max psi | 1600 |
| Working temperature max C | 127 |
| Working temperature max F | 260 |
| Working temperature min C | -40 |
| Working temperature min F | -40 |
General specifications
Characteristic | Value |
|---|---|
| EAN | 815628023030 |
