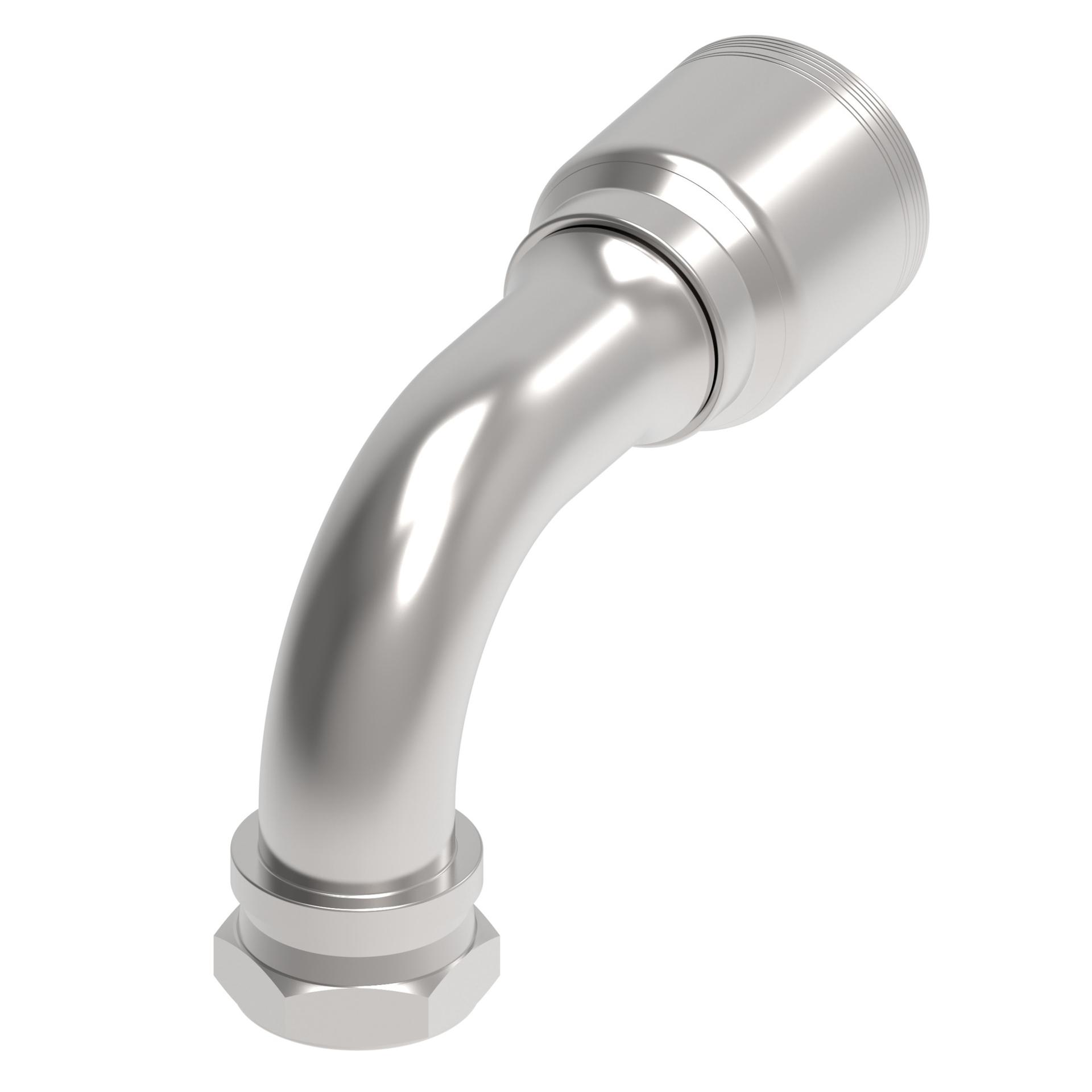

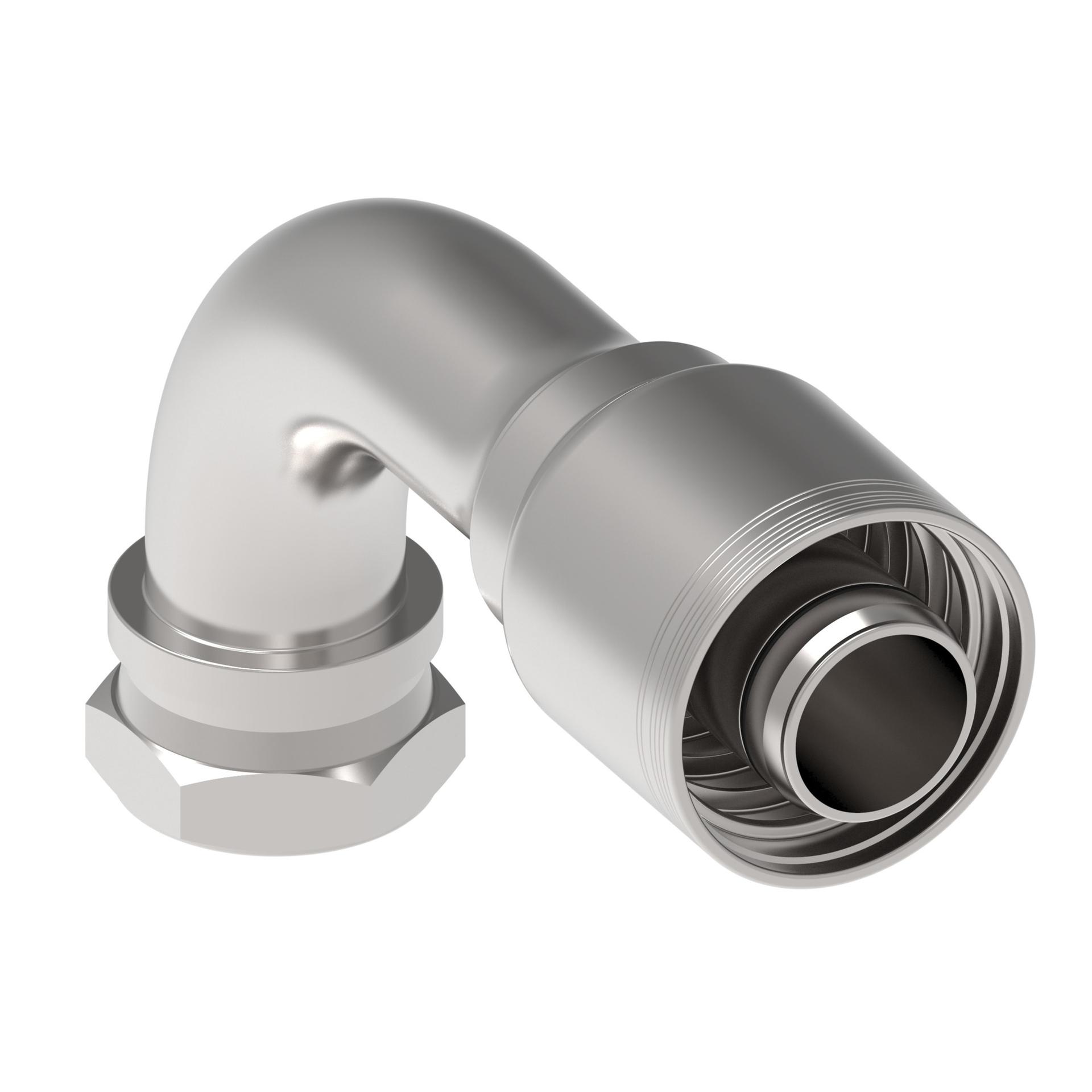

![Hose Fittings 6S32BFB32 [RIGHT]](/_next/image?url=https%3A%2F%2Fassets.danfoss.com%2Fdrawings%2Fpreview%2Flatest%2F213715%2FID432877882874-0101_preview.jpg&w=1920&q=75)
Product specifications
Characteristic | Value |
|---|---|
| A dimension IN | 9.670 |
| A dimension MM | 245.700 |
| Angle shape | 90 Degree |
| Brand | Danfoss |
| Compatible hose ID IN | 2.000 |
| Compatible hose ID MM | 50.800 |
| Compatible hoses | FC500 (Size dependent) |
| Compatible tube OD IN | 2.00 |
| Compatible tube OD MM | 50.800 |
| Compliances | SAE J1176 |
| Construction Style | Crimp |
| Drop dimension IN | 4.930 |
| Drop dimension MM | 125.3 |
| End size 1 | -32 |
| End Type 1 | Female BSPP swivel |
| Finish plating | Dura-Kote |
| Hex size 1 IN | 2.756 |
| Hex size 1 MM | 70.0 |
| Hex size 2 IN | 2.750 |
| Hex size 2 MM | 69.8 |
| Hose cut off factor IN | 6.600 |
| Hose cut off factor MM | 167.600 |
| Hose size | -32 |
| Inside diameter IN | 1.660 |
| Inside diameter MM | 42.100 |
| Product height in | 8.730 |
| Product height mm | 221.742 |
| Product length in | 11.051 |
| Product length mm | 280.695 |
| Product material | Carbon steel |
| Product width in | 3.560 |
| Product width mm | 90.424 mm |
| Seal material | Ethylene propylene (EPDM) |
| Thread sealant | No |
| Thread size 1 | G 2 |
| Tube OD 1 IN | 2.000 |
| Tube OD 1 MM | 50.800 |
| Working pressure max bar | 110 |
| Working pressure max psi | 1600 |
| Working temperature max C | 127 |
| Working temperature max F | 260 |
| Working temperature min C | -40 |
| Working temperature min F | -40 |
General specifications
Characteristic | Value |
|---|---|
| EAN/UPC | 815628023047 |
