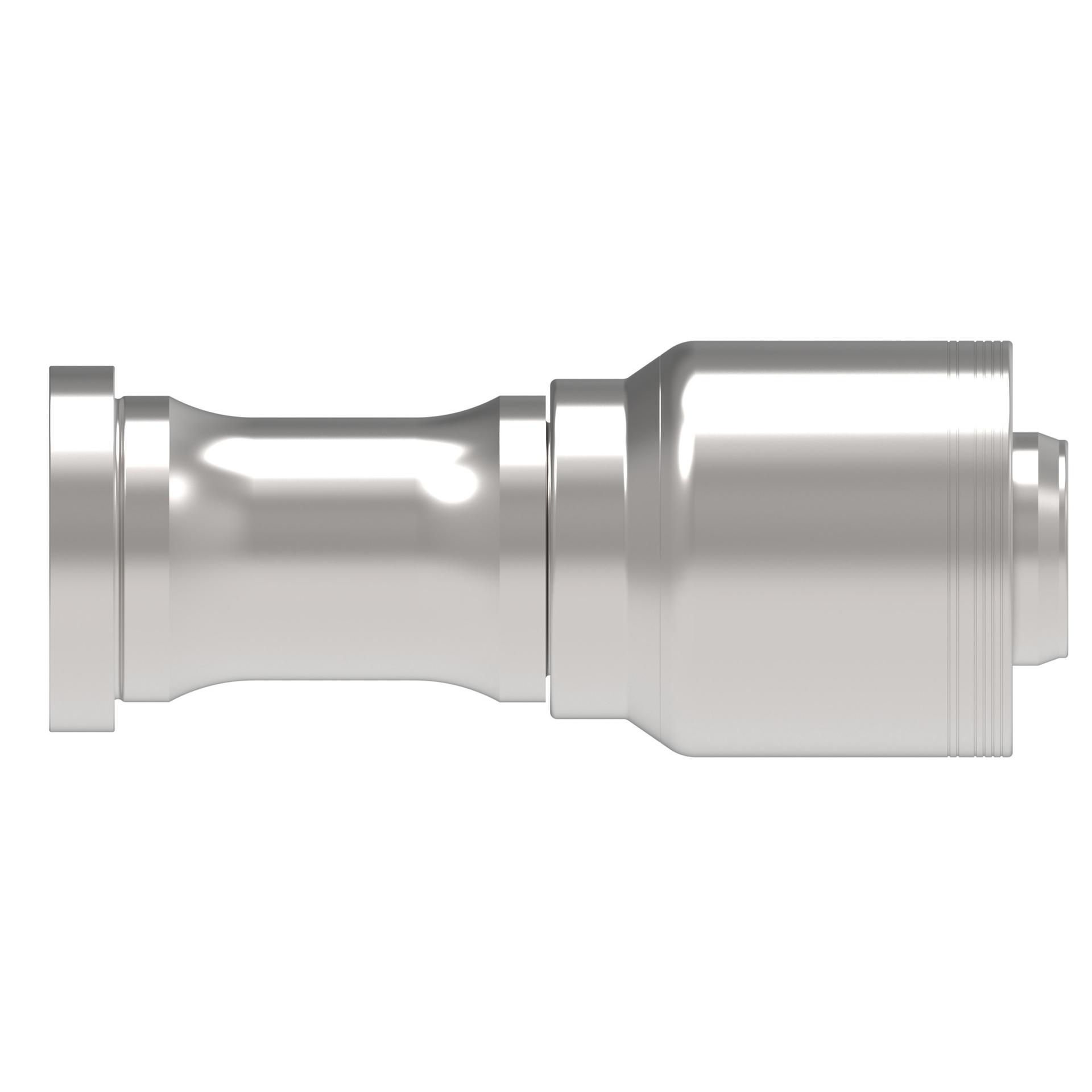

Hose Fittings 6S32CT32 [RIGHT]

HOSE FTG, 6S/32, CATFL/32, -S

6S32CT32


Tools

Product specifications

Characteristic
Value
A dimension IN8.220
A dimension MM208.900
Angle shapeStraight
BrandDanfoss
Compatible hose ID IN2.000
Construction StyleCrimp
End size 1-32
End type 1Caterpillar flange
Finish platingDura-Kote
Hose cut off factor IN5.150
Hose cut off factor MM130.900
Inside diameter IN1.660
Inside diameter MM42.100
Product height in3.560
Product height mm90.424
Product length in8.220
Product length mm208.788
Product materialCarbon steel
Product width in3.560
Product width mm90.424 mm
Seal materialEthylene Propylene (EPDM)
Thread sealantNo
Working temperature max C127
Working temperature max F260
Working temperature min C-40
Working temperature min F-40

General specifications

Characteristic
Value
EAN815628023061
