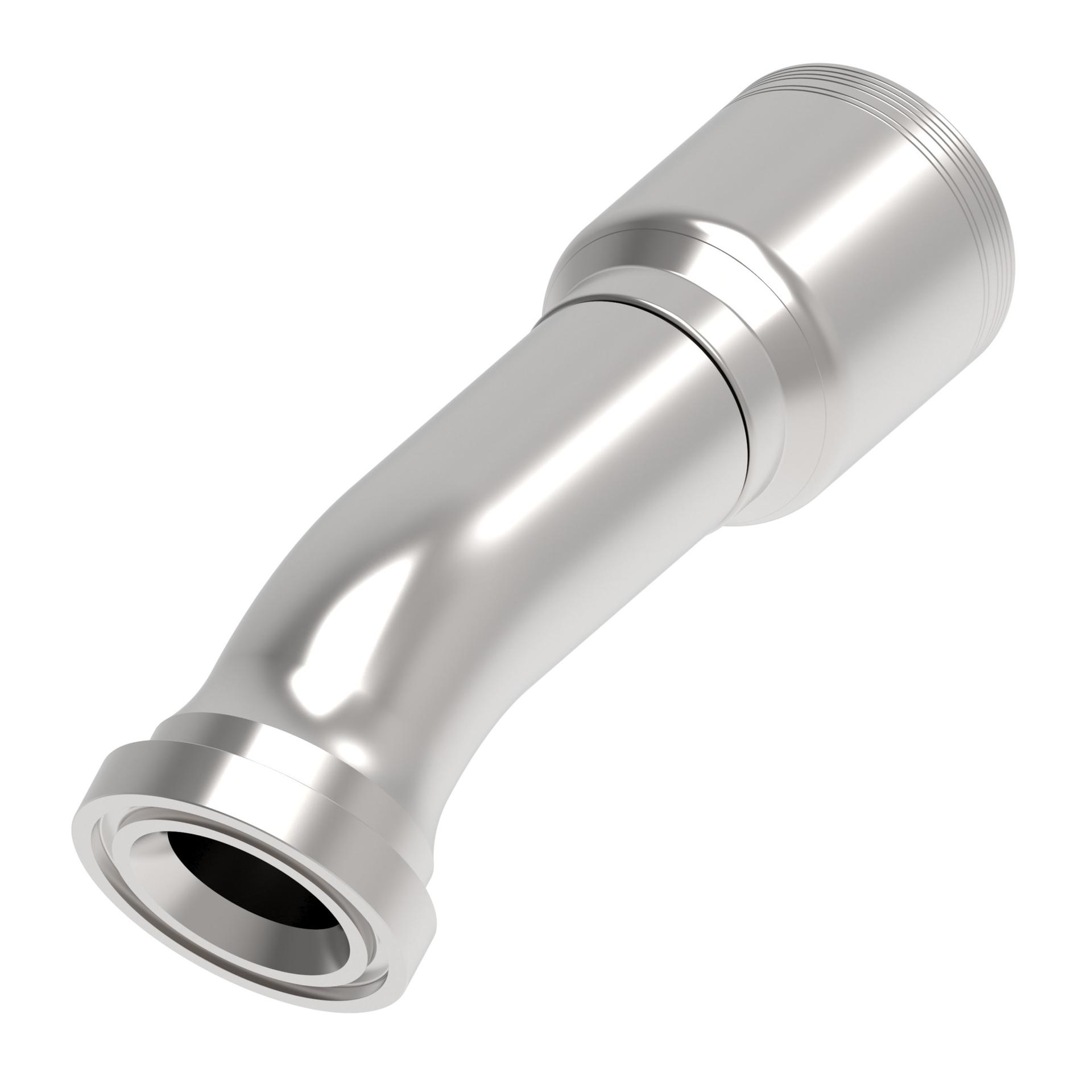

Danfoss 6S Series Crimp Hose Fittings CAT Flange 30 Elbow 6S32CTF24 (RIGHT)

Ftng perm other 6S CAT SPLIT FLNG - 30

6S32CTF24


Tools

Product specifications

Characteristic
Value
Angle shape30 Degree
BrandDanfoss
Compatible hose ID IN1.500
Compatible hose ID MM38.100
Compatible hosesFC500 (Size dependent)
Compatible tube OD IN2.00
Compatible tube OD MM50.800
CompliancesSAE J1176
Construction StyleCrimp
Drop dimension IN1.000
Drop dimension MM35.00
Finish platingDura-Kote
Hose cut off factor IN7.340
Hose cut off factor MM186.436
Hose size-24
Inside diameter IN1.220
Inside diameter MM30.988
Product materialCarbon steel
Thread sealantNo
Tube OD 1 IN2.000
Tube OD 1 MM50.800

General specifications

Characteristic
Value
EAN815628023139
