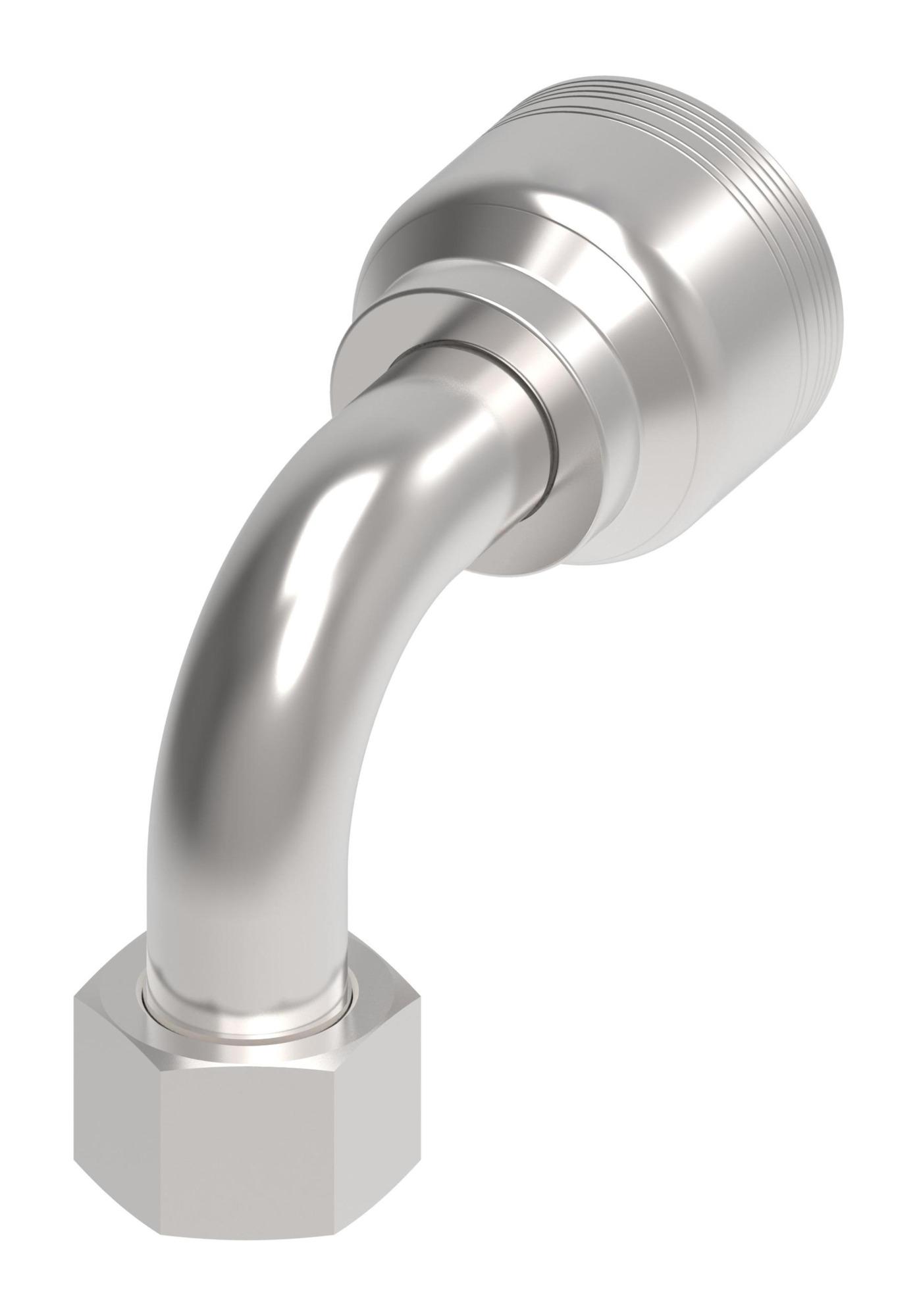

Danfoss 6S Series Crimp Hose Fittings Female ORS Swivel 90 Elbow 6SAXXFRB16 (RIGHT)

Ftng (perm), 6-sprl, ORS, 90 deg nipple

6SA16FRB16


Tools

Product specifications

Characteristic
Value
A dimension IN4.440
A dimension MM112.800
Angle shape90 Degree
Compatible hose ID IN1.000
Construction StyleCrimp
Drop dimension IN2.800
Drop dimension MM71.00
End size 1-16
End type 1Female ORFS swivel
Finish platingDura-Kote
Hex size 1 IN1.063
Hex size 1 MM27.000
Hose cut off factor IN2.870
Hose cut off factor MM73.000
Inside diameter IN0.760
Inside diameter MM19.200
Product height in4.550
Product height mm115.570
Product length in5.250
Product length mm133.350
Product materialCarbon steel
Product width in2.340
Product width mm59.436 mm
Seal materialEthylene Propylene (EPDM)
Thread sealantNo
Thread size 11 7/16-12 UN
Working pressure max bar414
Working pressure max psi6000
Working temperature max C127
Working temperature max F260
Working temperature min C-40
Working temperature min F-40

General specifications

Characteristic
Value
EAN813688023533
