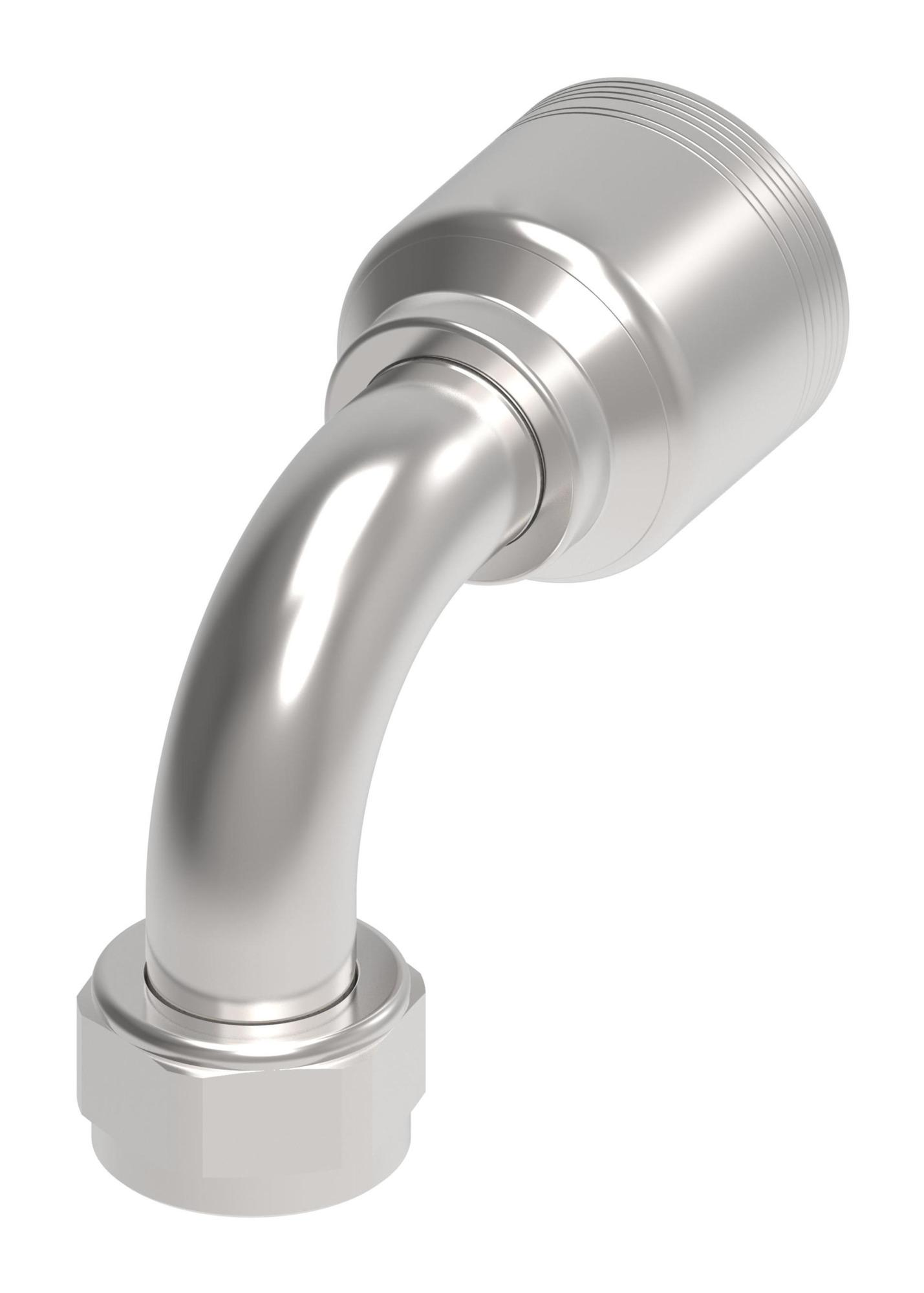

Danfoss 6S Series Crimp Hose Fittings Female JIC/37 Swivel 90 Elbow 6SAXXFJB20 (RIGHT)

Ftng (perm) 6-sprl SAE 37 steel90 DEG

6SA20FJB20


Tools

Product specifications

Characteristic
Value
A dimension IN5.250
A dimension MM133.400
Angle shape90 Degree
Compatible hose ID IN1.250
Construction StyleCrimp
Drop dimension IN3.070
Drop dimension MM78.00
End size 1-20
End type 1Female 37 degree swivel
Finish platingDura-Kote
Hex size 1 IN2.000
Hex size 1 MM50.800
Hose cut off factor IN3.050
Hose cut off factor MM77.400
Inside diameter IN0.990
Inside diameter MM25.200
Product height in5.010
Product height mm127.254
Product length in6.250
Product length mm158.750
Product materialCarbon steel
Product width in2.610
Product width mm66.294 mm
Seal materialEthylene Propylene (EPDM)
Thread sealantNo
Thread size 11 5/8-12 UN
Working pressure max bar241
Working pressure max psi3500
Working temperature max C127
Working temperature max F260
Working temperature min C-40
Working temperature min F-40

General specifications

Characteristic
Value
EAN813688028941
