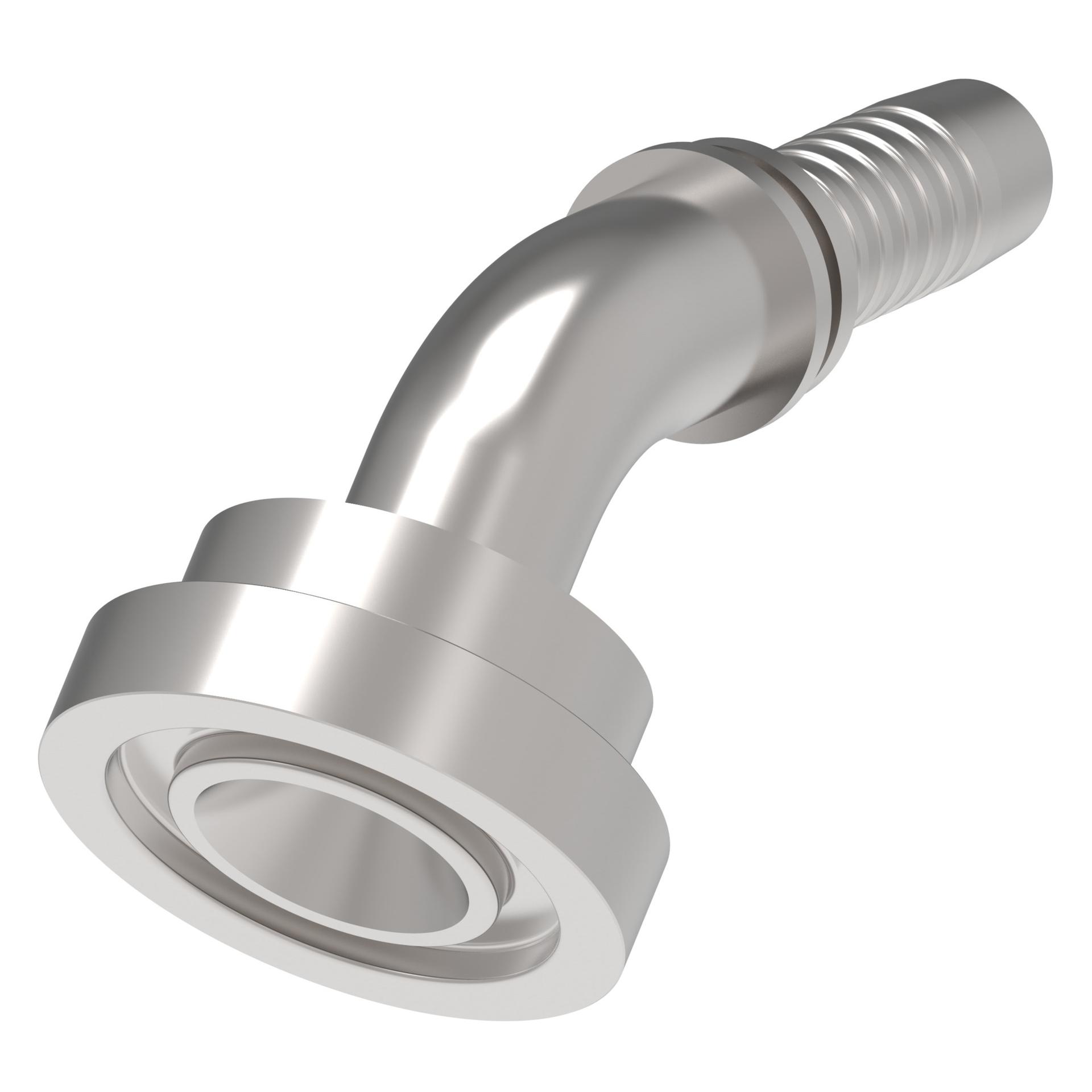

Product specifications
Characteristic | Value |
|---|---|
| A dimension IN | 5.795 |
| A dimension MM | 147.200 |
| Angle shape | 45 Degree |
| Brand | Winner by Danfoss |
| Catalog Item | 43012U-B0030K |
| Compatible hose ID IN | 1.000 |
| Compatible hose ID MM | 25.400 |
| Construction Style | Crimp |
| Drop dimension IN | 1.366 |
| Drop dimension MM | 34.70 |
| End type 1 | Split flange code 62 |
| Finish plating | Zinc plating |
| Hose cut off factor IN | 3.590 |
| Hose cut off factor MM | 91.186 |
| Inside diameter IN | 0.787 |
| Inside diameter MM | 19.990 |
| Product material | Carbon steel |
