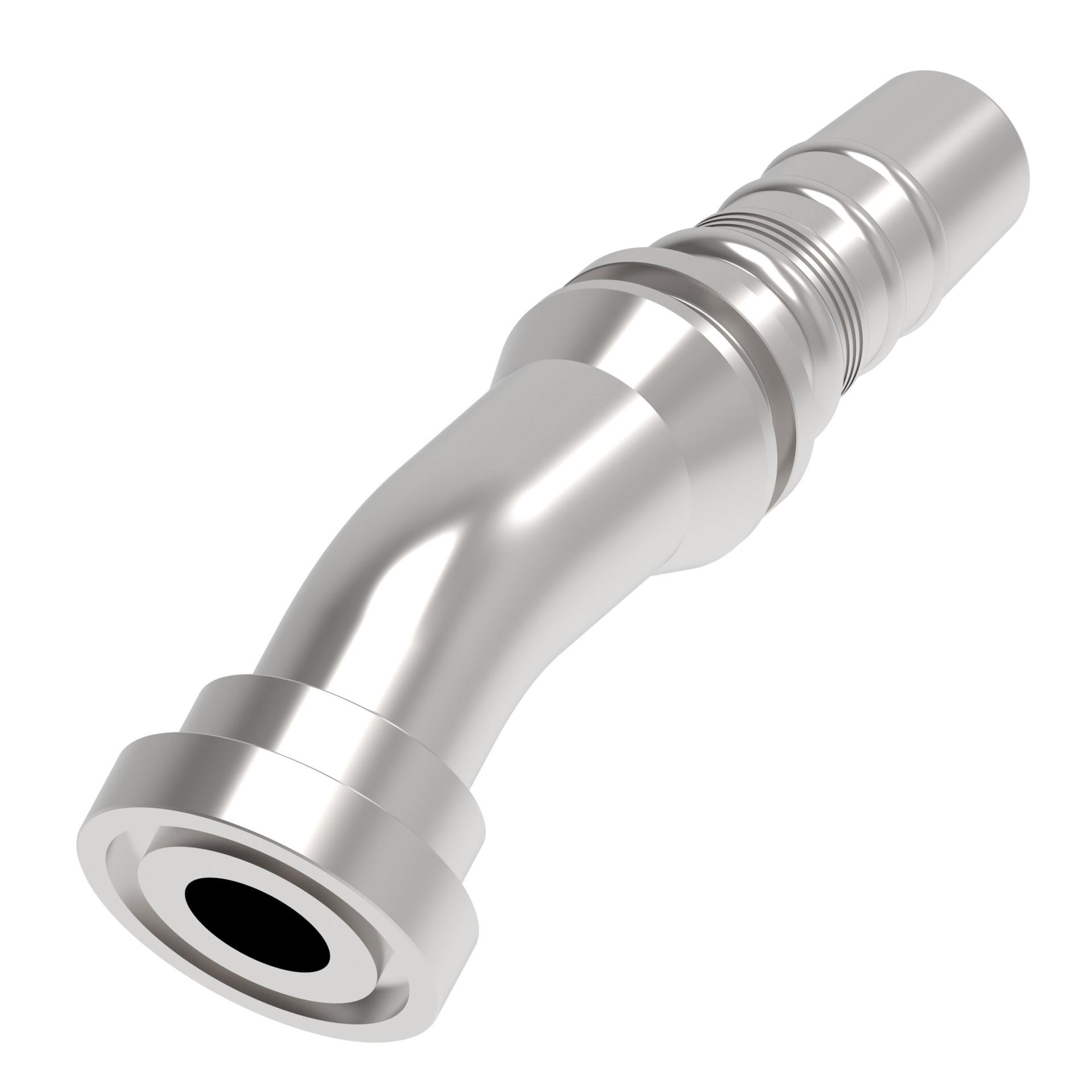

Product specifications
Characteristic | Value |
|---|---|
| A dimension IN | 9.334 |
| A dimension MM | 237.100 |
| Angle shape | 30 Degree |
| Brand | Winner by Danfoss |
| Compatible hose ID IN | 1.500 |
| Compatible hose ID MM | 38.100 |
| Construction Style | Crimp |
| Drop dimension IN | 1.114 |
| Drop dimension MM | 28.30 |
| End size 1 | -24 |
| End size 2 | -24 |
| End type 1 | Split flange code 62 |
| End type 2 | Line/hose/tube |
| Finish plating | Zinc plating |
| Hose cut off factor IN | 5.602 |
| Hose cut off factor MM | 142.300 |
| Hose size | -24 |
| Inside diameter IN | 1.200 |
| Inside diameter MM | 30.500 |
| Product height in | 3.368 |
| Product height mm | 85.550 |
| Product length in | 10.585 |
| Product length mm | 268.851 |
| Product material | Carbon steel |
| Product width in | 2.500 |
| Product width mm | 63.500 |
