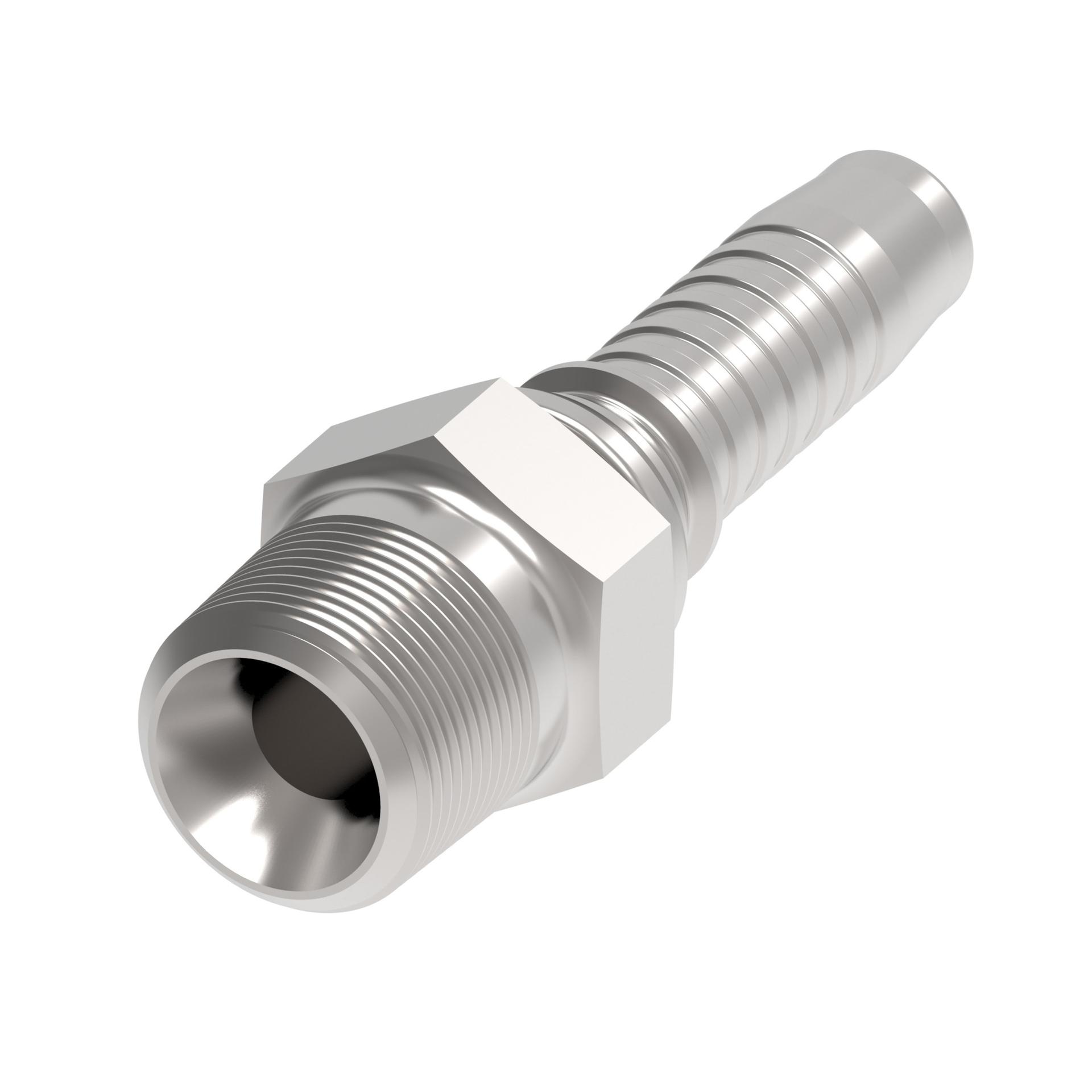

Product specifications
Characteristic | Value |
|---|---|
| A dimension IN | 3.035 |
| A dimension MM | 77.080 |
| Angle shape | Straight |
| Brand | Danfoss |
| Compatible hose ID IN | 0.500 |
| Construction Style | Crimp |
| End Type 1 | Male pipe (NPTF) |
| End size 1 | -8 |
| Finish plating | Zinc plating |
| Hex size 1 IN | 0.938 |
| Hex size 1 MM | 23.813 |
| Hose cut off factor IN | 1.145 |
| Hose cut off factor MM | 29.080 |
| Inside diameter IN | 0.3550 |
| Inside diameter MM | 9.0000 |
| Product height in | 1.080 |
| Product height mm | 27.432 |
| Product length in | 3.040 |
| Product length mm | 77.216 |
| Product material | Carbon steel |
| Product width in | 0.940 |
| Product width mm | 23.876 mm |
| Thread sealant | Yes |
| Thread size 1 | 1/2-14 NPTF |
| Working pressure max bar | 414.00 |
| Working pressure max psi | 6000.00 |
| Working temperature max C | 93 |
| Working temperature max F | 200 |
| Working temperature min C | -40 |
| Working temperature min F | -40 |
General specifications
Characteristic | Value |
|---|---|
| EAN/UPC | 639789258045 |
