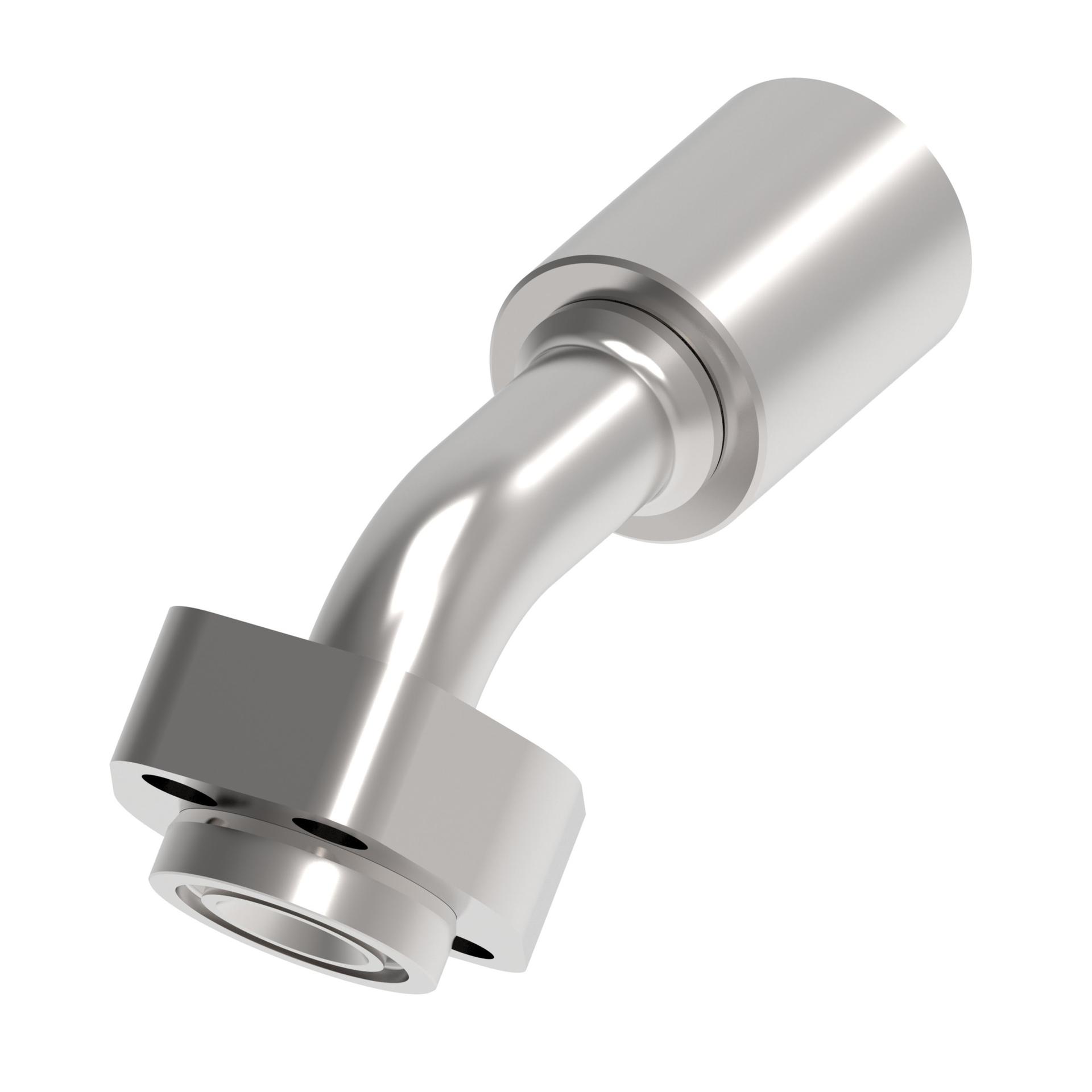

Product specifications
Characteristic | Value |
|---|---|
| A dimension IN | 7.230 |
| A dimension MM | 183.700 |
| Angle shape | 45 Degree |
| Brand | Aeroquip by Danfoss |
| Compatible hose ID IN | 1.000 |
| Compatible hose ID MM | 25.400 |
| Construction Style | Crimp |
| Drop dimension IN | 2.000 |
| Drop dimension MM | 45.0 |
| End size 1 | -16 |
| End type 1 | Split flange code 62 |
| Finish plating | Zinc plating |
| Hose cut off factor IN | 4.610 |
| Hose cut off factor MM | 117.000 |
| Hose size | -16 |
| Inside diameter IN | 0.7700 |
| Inside diameter MM | 19.6000 |
| Product height in | 4.161 |
| Product height mm | 105.700 |
| Product length in | 8.295 |
| Product length mm | 210.701 |
| Product material | Carbon steel |
| Product width in | 3.197 |
| Product width mm | 81.201 mm |
| Thread sealant | No |
| Working pressure max bar | 414.00 |
| Working pressure max psi | 6000.00 |
| Working temperature max C | 100 |
| Working temperature max F | 212 |
| Working temperature min C | -40 |
| Working temperature min F | -40 |
