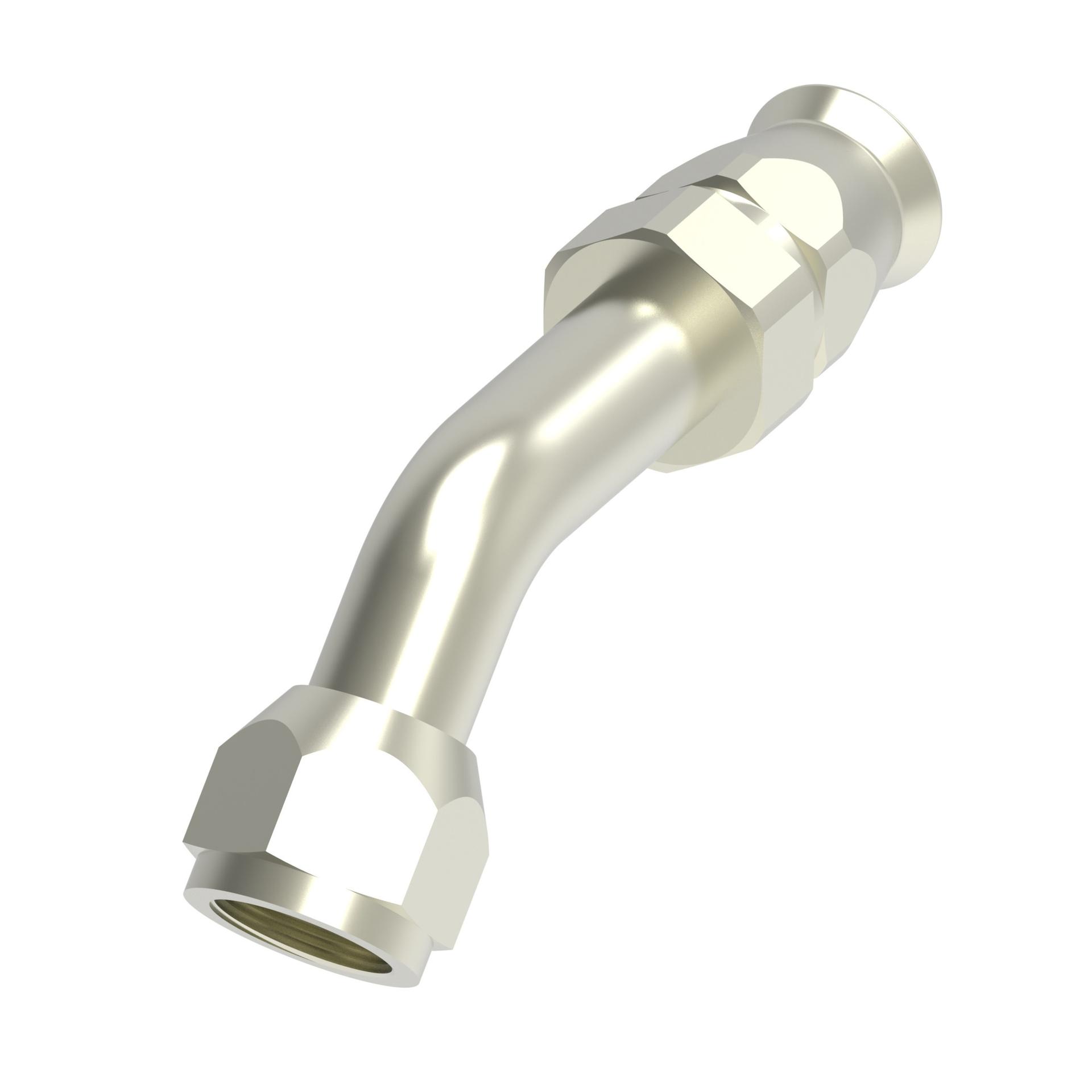

Hose Fittings FCE1722 [RIGHT]

FTGS(R) REFRIG TUBEO CS A/C Fitting

FBE1722

Tools

Product specifications

Characteristic
Value
A dimension IN2.740
A dimension MM69.500
Angle shape45 Degree
Backup hex size IN0.688
Backup hex size MM17.500
BrandAeroquip Performance Danfoss
Compatible hose ID IN0.375
Compatible hose ID MM9.525
Compatible hosesFBF
Construction StyleReusable
Drop dimension IN1.000
Drop dimension MM17.00
End connection hex size IN0.750
End connection hex size MM19.100
End size 1-6
End type 1Female 37 degree swivel
Finish platingNickel plating
Hose cut off factor IN2.240
Hose cut off factor MM56.896
Hose size-6
Inside diameter IN0.260
Inside diameter MM6.604
Product materialCarbon steel
Seal materialHydrogenated Nitrile (HNBR)
Thread size 15/8-18 UNF

General specifications

Characteristic
Value
EAN/UPC678146011053
