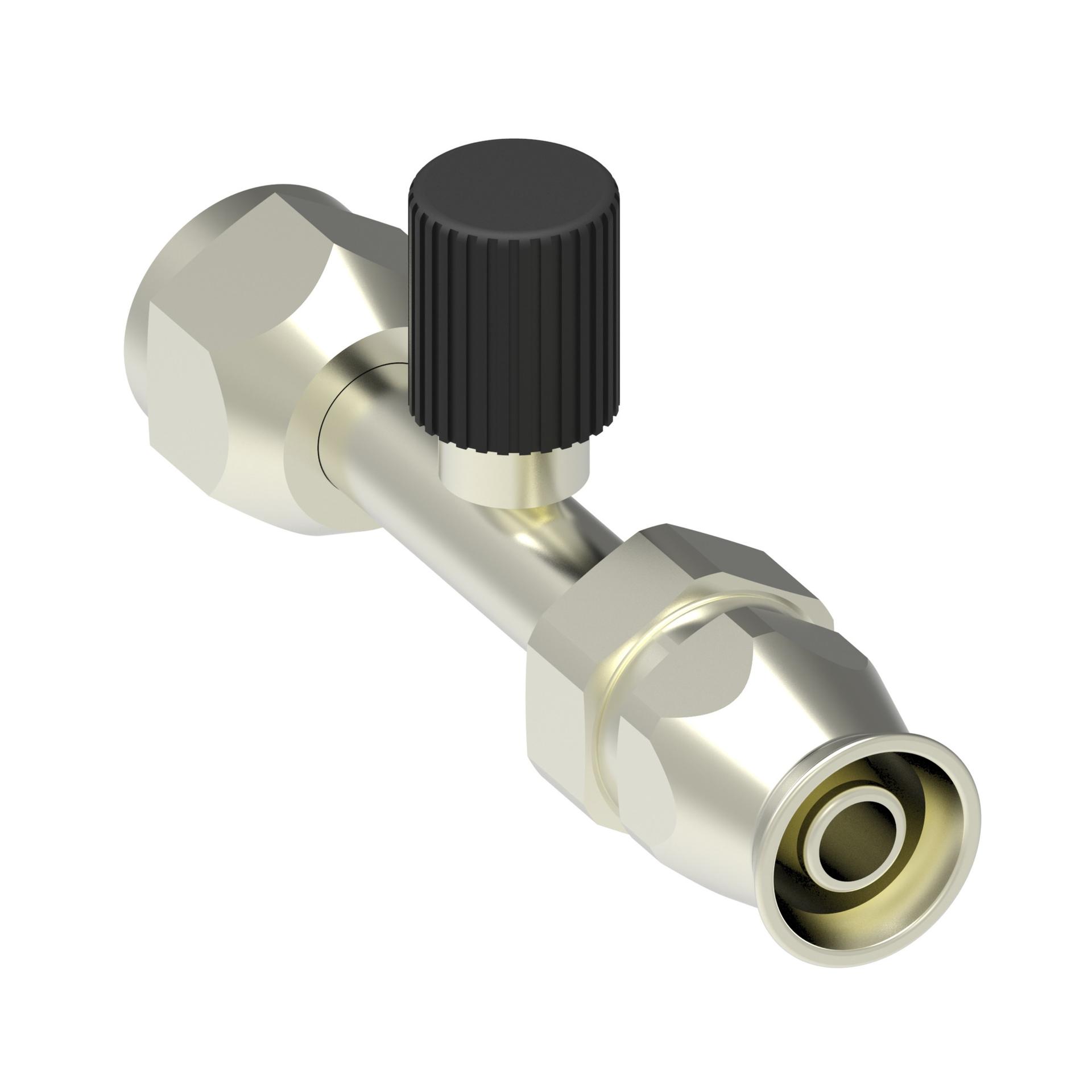

Hose Fittings FCE1812 [LEFT]

FTGS(R) REFRIG TUBEO CS A/C Fitting

FBE1813

Tools

Product specifications

Characteristic
Value
A dimension IN3.550
A dimension MM90.200
Angle shapeStraight
Backup hex size IN0.810
Backup hex size MM20.637
BrandAeroquip Performance Danfoss
Compatible hose ID IN0.500
Compatible hose ID MM12.700
Construction StyleReusable
End connection hex size IN0.870
End connection hex size MM22.225
End size 1-8
End type 1Tube-O female short pilot
Finish platingNickel plating
Hose cut off factor IN2.420
Hose cut off factor MM61.460
Hose size-8
Inside diameter IN0.380
Inside diameter MM9.600
Product materialCarbon steel
Seal materialHydrogenated Nitrile (HNBR)
Thread size 13/4-16 UNF

General specifications

Characteristic
Value
EAN/UPC678146011152
