Hose Fittings FCE1912 [CENTER]

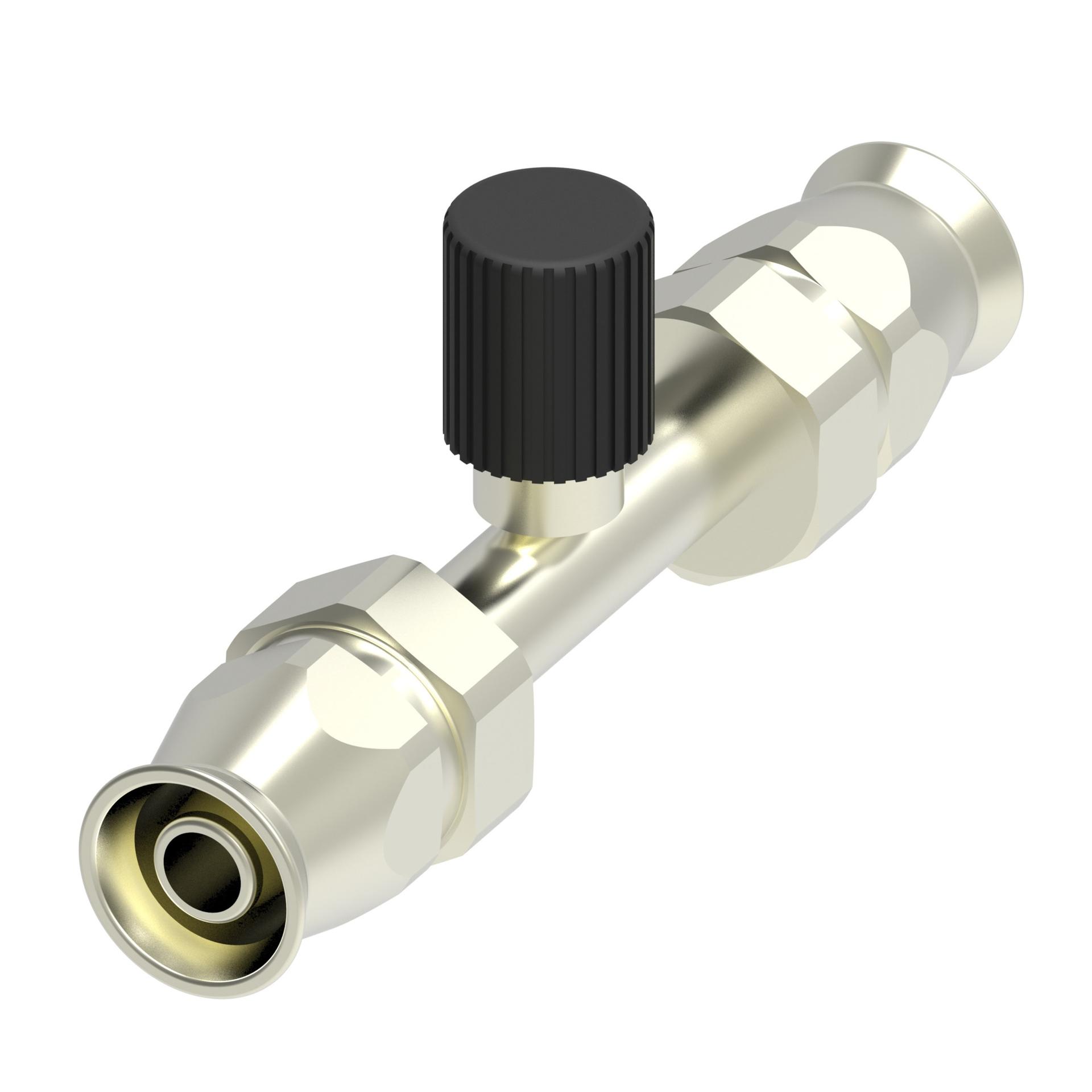

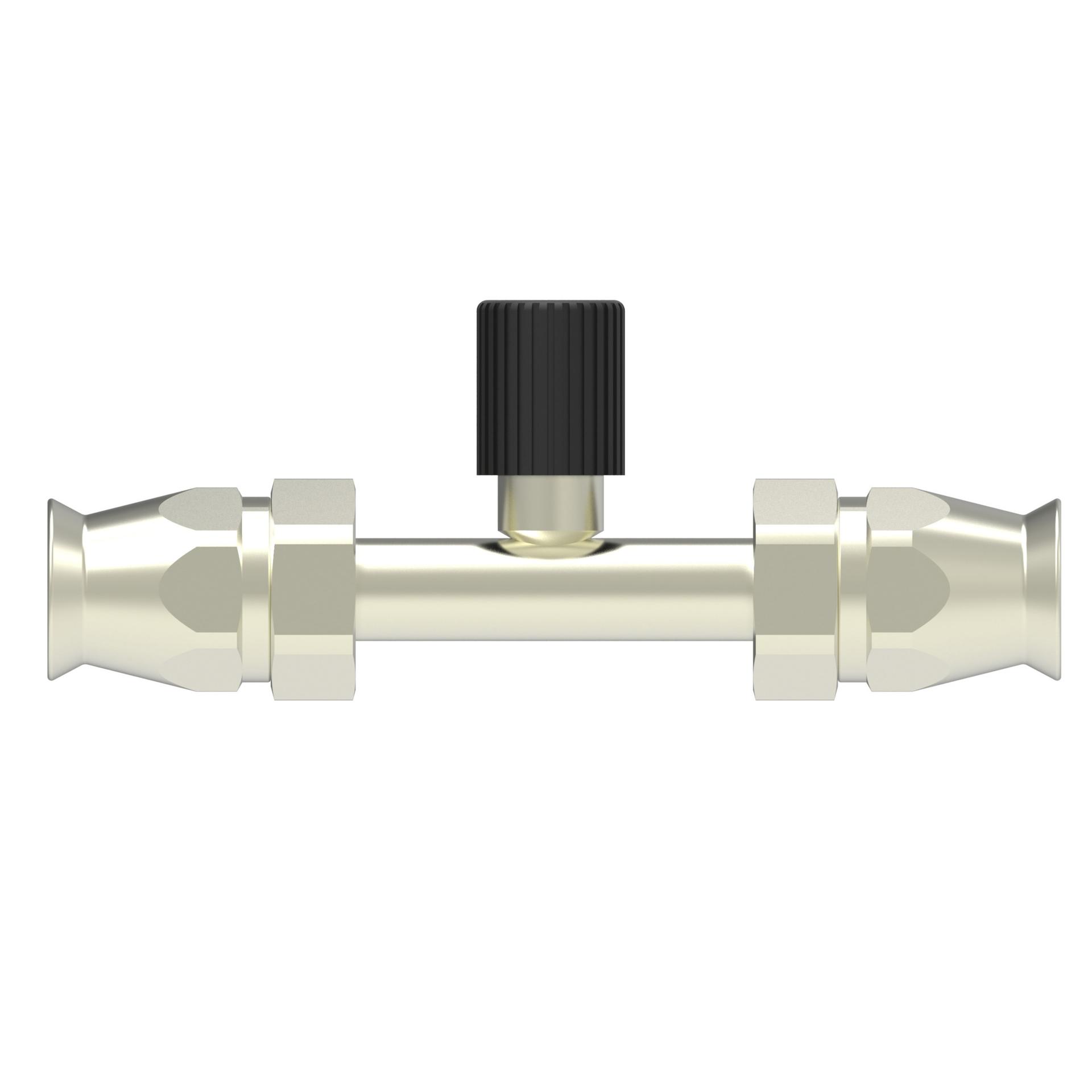

FTGS(R) REFRIG TUBEO CS A/C Fitting

FBE1914

Catalog item:

FBE1914

Tools

Product specifications

Characteristic
Value
A dimension IN4.320
A dimension MM109.700
Angle shapeStraight
Backup hex size IN0.930
Backup hex size MM23.813
BrandAeroquip Performance Danfoss
Catalog ItemFBE1914
Compatible hose ID IN0.620
Compatible hose ID MM15.900
Construction StyleReusable
End connection hex size IN0.930
End Type 1Spilcer high side port
Finish platingNickel plating
Hose size-10
Inside diameter IN0.470
Inside diameter MM11.900
Product height in1.000
Product height mm25.400
Product length in4.320
Product length mm109.728
Product materialCarbon steel
Product width in1.000
Product width mm25.400
Seal materialHydrogenated Nitrile (HNBR)

General specifications

Characteristic
Value
EAN/UPC678146011268
