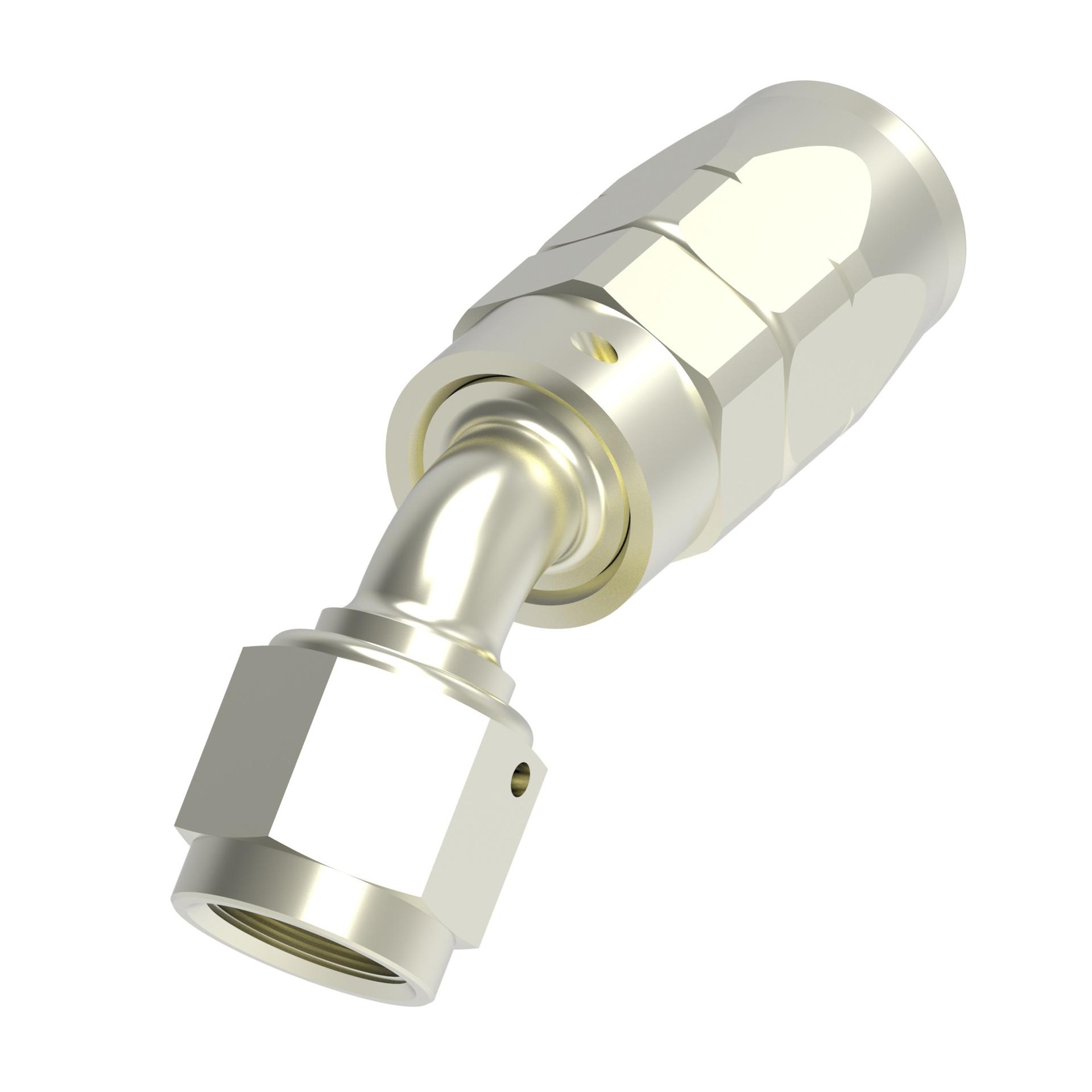

Hose Fittings FCE4022 [CENTER]

FTG REUSE PERF SAE37 AL 45DEG Hose Ftng

FBE4024

Tools

Product specifications

Characteristic
Value
A dimension IN2.960
A dimension MM75.180
Angle shape45 Degree
Backup hex size IN1.063
Backup hex size MM27.000
BrandAeroquip Performance Danfoss
Compatible hose ID IN0.625
Compatible hose ID MM15.875
Compatible hosesFBA
Construction StyleReusable
Drop dimension IN0.671
Drop dimension MM17.00
End connection hex size IN1.000
End connection hex size MM25.400
End size 1-10
End type 1Female 37 degree swivel
Finish platingNickel plating
Hose cut off factor IN2.080
Hose cut off factor MM52.832
Hose size-10
Inside diameter IN0.470
Inside diameter MM11.938
Product materialAluminum
Seal materialFlourocarbon (FKM)
Thread size 17/8-14 UNF

General specifications

Characteristic
Value
EAN/UPC678146025784
