Hose Fittings FBL1532 (RIGHT)

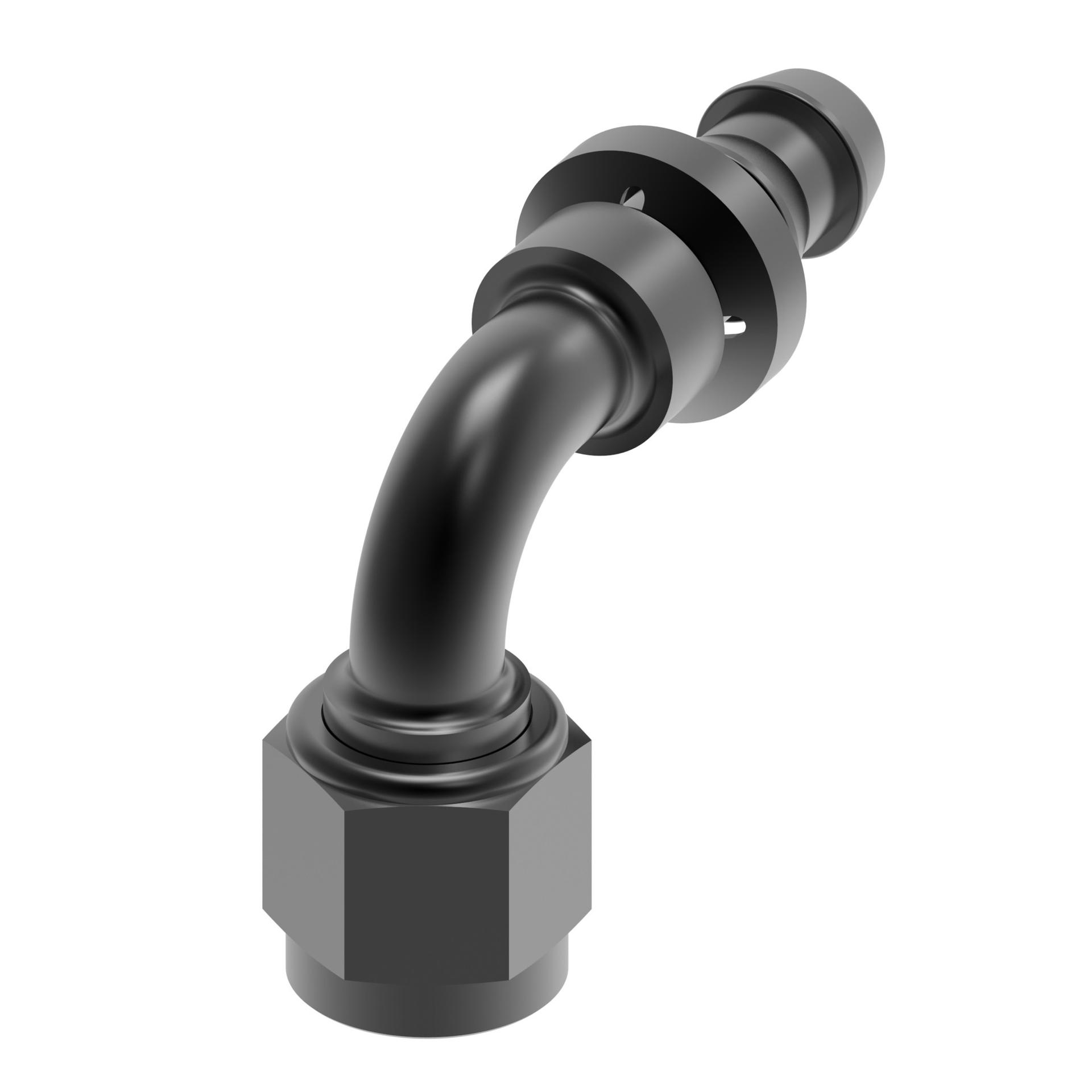

HOSE NIPPLE ASSY,SR/10,JIC-F/10,D,90D

FBL1534


Tools

Product specifications

Characteristic
Value
A dimension IN2.980
A dimension MM75.700
Angle shape90 Degree
BrandAeroquip Performance Danfoss
Construction StyleReusable
Drop dimension IN1.406
Drop dimension MM35.70
End Type 1Female 37 degree swivel
Finish platingBlack Anodized
Hex size 1 IN0.984
Hex size 1 MM25.000
Hose cut off factor IN1.539
Hose cut off factor MM39.100
Inside diameter IN0.480
Inside diameter MM12.200
Product height in2.270
Product height mm57.658
Product length in3.480
Product length mm88.392
Product materialAluminum
Product width in1.000
Product width mm25.400
Thread size 17/8-14 UNF

General specifications

Characteristic
Value
EAN/UPC678146117762
