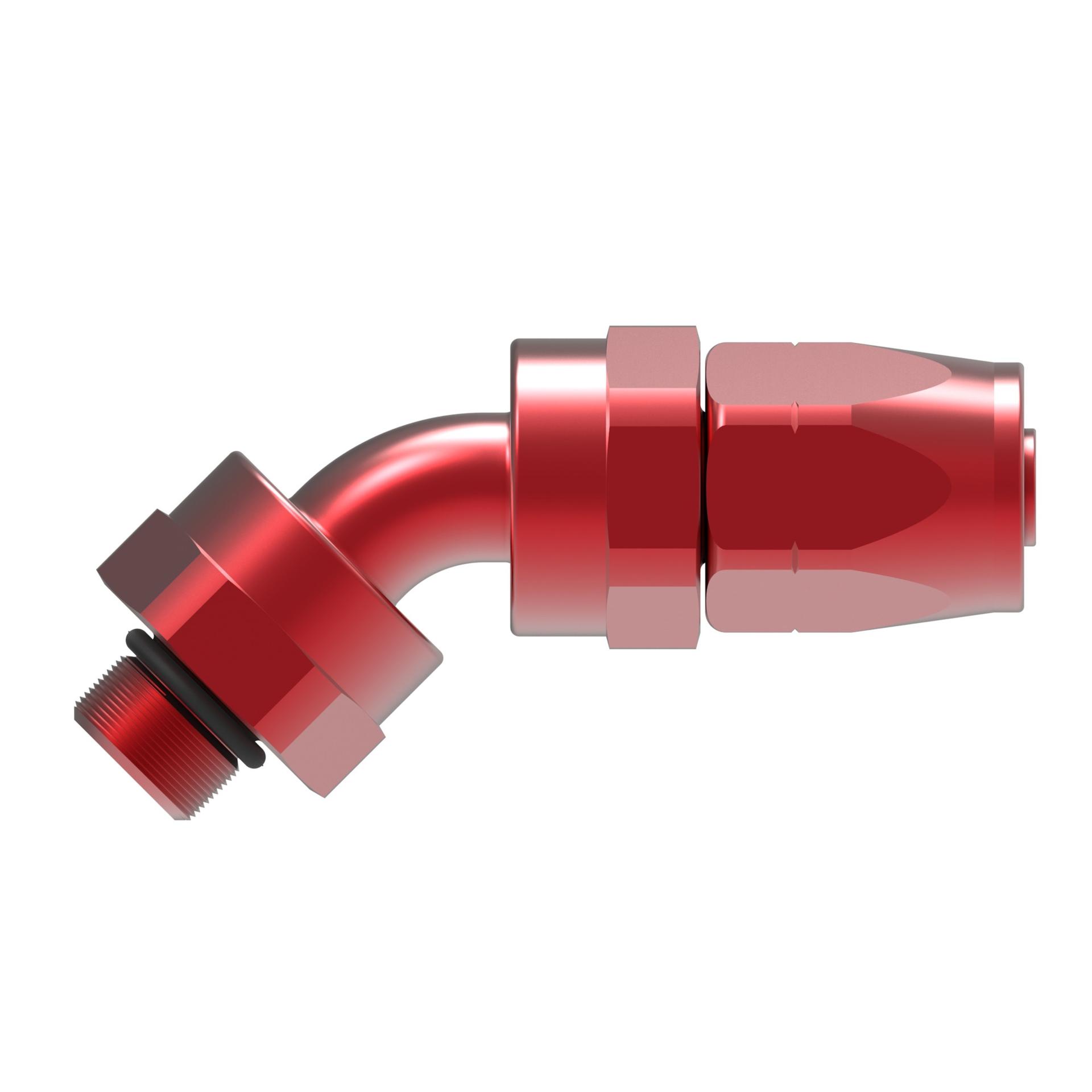

Hose Fittings FBM1348 [CENTER]

Ftngreus PERF ORS ALUM 45 deg. Orb Ftng

FBM1348

Tools

Product specifications

Characteristic
Value
A dimension IN2.670
A dimension MM67.818
Angle shape45 Degree
Backup hex size IN0.875
Backup hex size MM22.200
BrandAeroquip Performance Danfoss
Compatible hose ID IN0.500
Compatible hose ID MM12.700
Compatible hosesFBA
Construction StyleReusable
Drop dimension IN0.610
Drop dimension MM15.50
End connection hex size IN1.000
End connection hex size MM25.400
End size 1-6
End type 1Male ORB Swivel
Finish platingRed Anodized
Hose cut off factor IN1.900
Hose cut off factor MM48.260
Hose size-8
Inside diameter IN0.300
Inside diameter MM7.620
Product materialAluminum
Thread size 19/16-18 UNF

General specifications

Characteristic
Value
EAN/UPC678146089427
