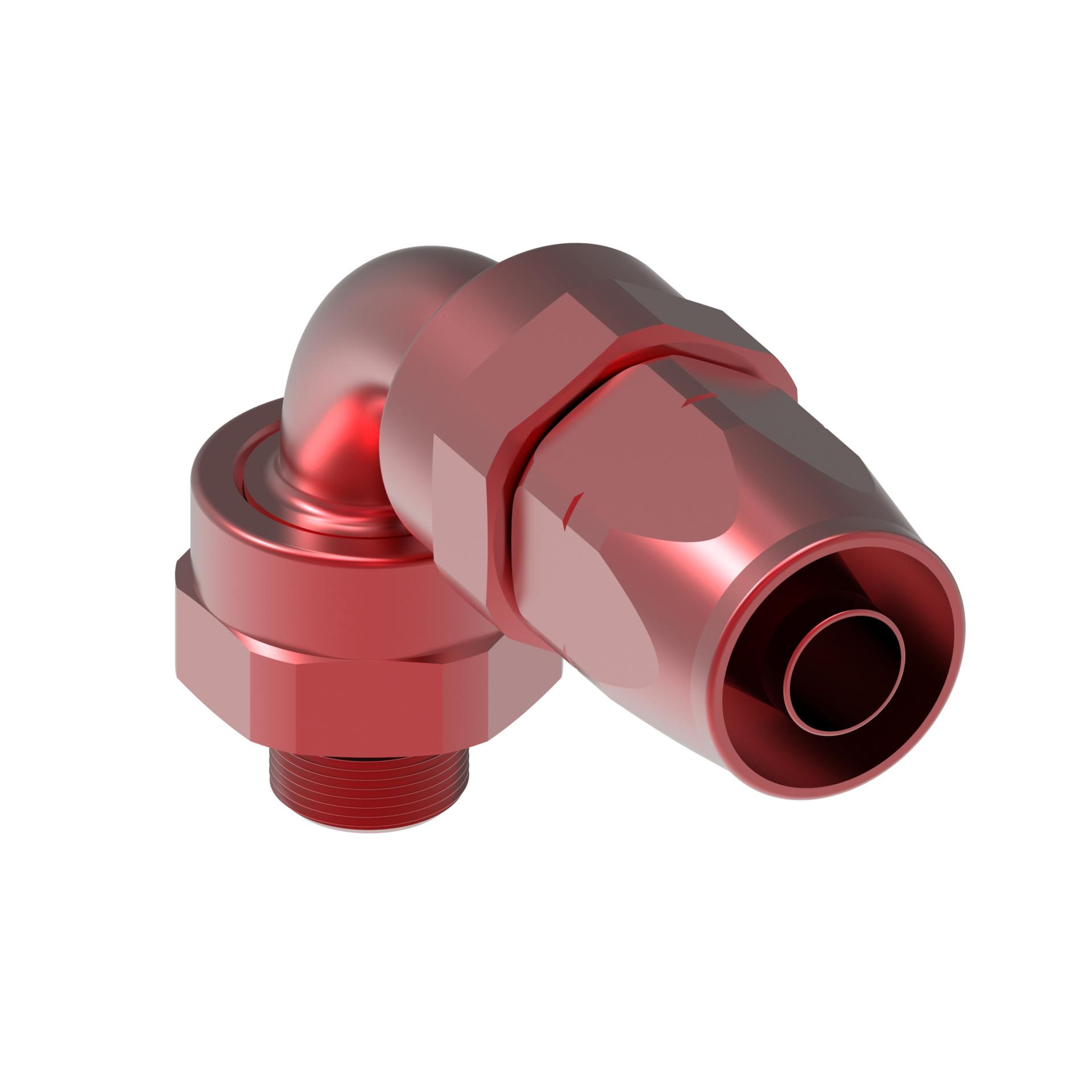

Hose Fittings FBM1355 [LEFT]

FTNGR PERFORM ORS ALUM 90 DEG ORB Ftng

FBM1356

Catalog item:

FBM1356

Tools

Product specifications

Characteristic
Value
A dimension IN2.610
A dimension MM66.290
Angle shape90 Degree
Backup hex size IN1.000
Backup hex size MM25.000
BrandAeroquip Performance Danfoss
Catalog ItemFBM1356
Compatible hose ID IN0.500
Compatible hose ID MM12.700
Construction StyleReusable
Drop dimension IN1.230
Drop dimension MM31.24
End connection hex size IN1.000
End connection hex size MM25.000
End size 1-8
End type 1Male ORB Swivel
Finish platingRed Anodized
Hose cut off factor IN1.840
Hose cut off factor MM46.730
Hose size-8
Inside diameter IN0.300
Inside diameter MM7.620
Product height in1.700
Product height mm43.180
Product length in2.610
Product length mm66.294
Product materialAluminum
Product width in1.000
Product width mm25.400
Seal materialFlourocarbon (FKM)
Thread size 13/4-16 UNF

General specifications

Characteristic
Value
EAN/UPC678146089496
