Product specifications
Characteristic | Value |
|---|---|
| Brand | Aeroquip Performance Danfoss |
| Drop dimension IN | 0.797 |
| Drop dimension MM | 20.20 |
| End Type 1 | Male 37 degree |
| End Type 2 | Male 37 degree |
| End type 3 | Male 37 degree |
| Finish plating | Anodized |
| Hex size 1 IN | 0.438 |
| Hex size 1 MM | 11.100 |

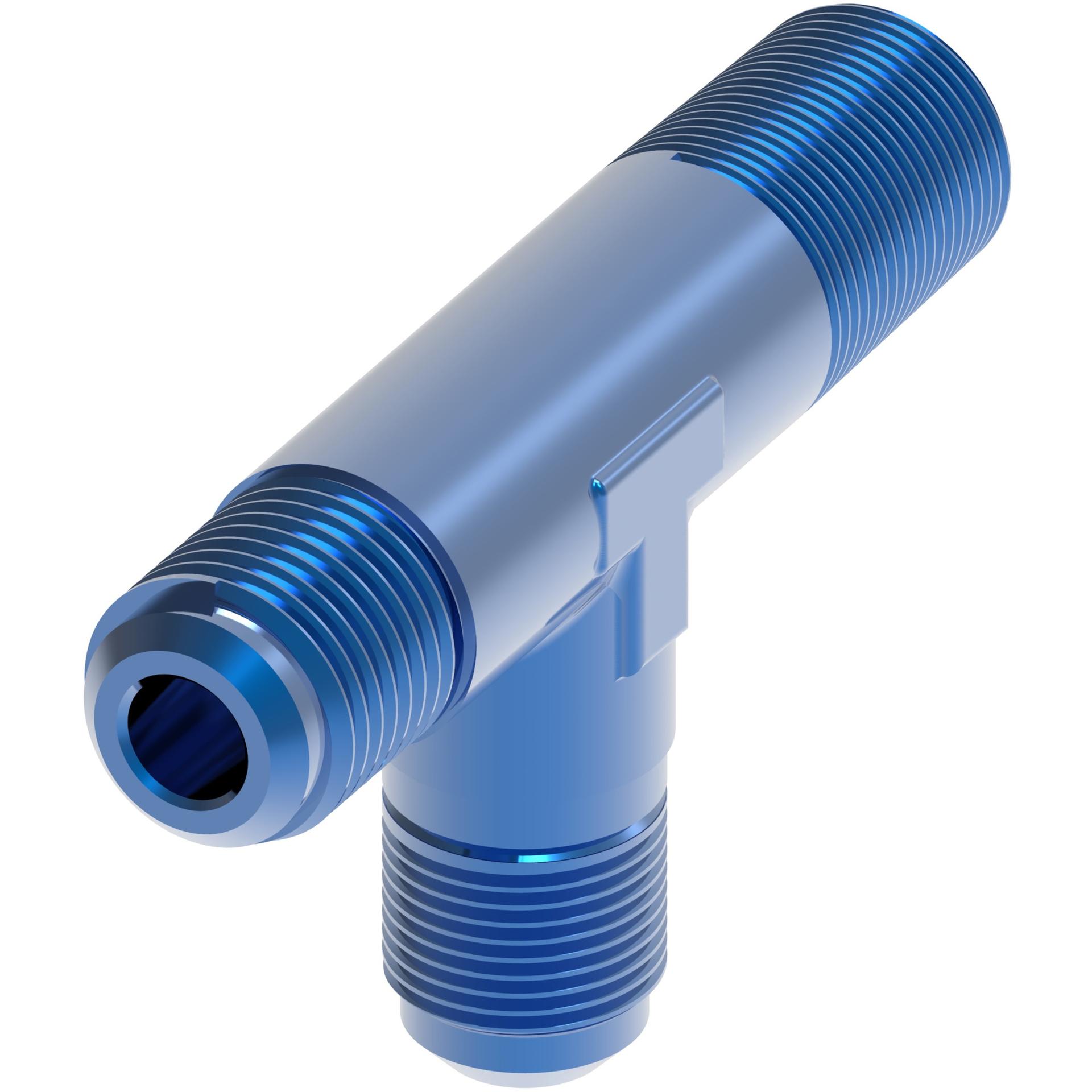

| Item type | Adapter-tee |
| Product material | Aluminum |
| Thread sealant | No |
| Thread size 1 | 3/8-24 UNF |
| Thread size 3 | 3/8-24 UNF |
| Tube outside diameter 1 IN | 0.124 |
| Tube outside diameter 1 MM | 3.200 |
| Tube outside diameter 2 IN | 0.187 |
| Tube outside diameter 2 MM | 4.800 |
| Tube outside diameter 3 IN | 0.124 |
| Tube outside diameter 3 MM | 3.200 |
General specifications
Characteristic | Value |
|---|---|
| EAN | 678146005717 |
