Product specifications
Characteristic | Value |
|---|---|
| Brand | Aeroquip Performance Danfoss |
| Drop dimension IN | 0.891 |
| Drop dimension MM | 22.60 |
| End type 1 | Male 37 degree |
| End type 2 | Male 37 degree |
| End type 3 | Male 37 degree |
| Finish plating | Anodized |
| Hex size 1 IN | 0.550 |
| Hex size 1 MM | 14.000 |

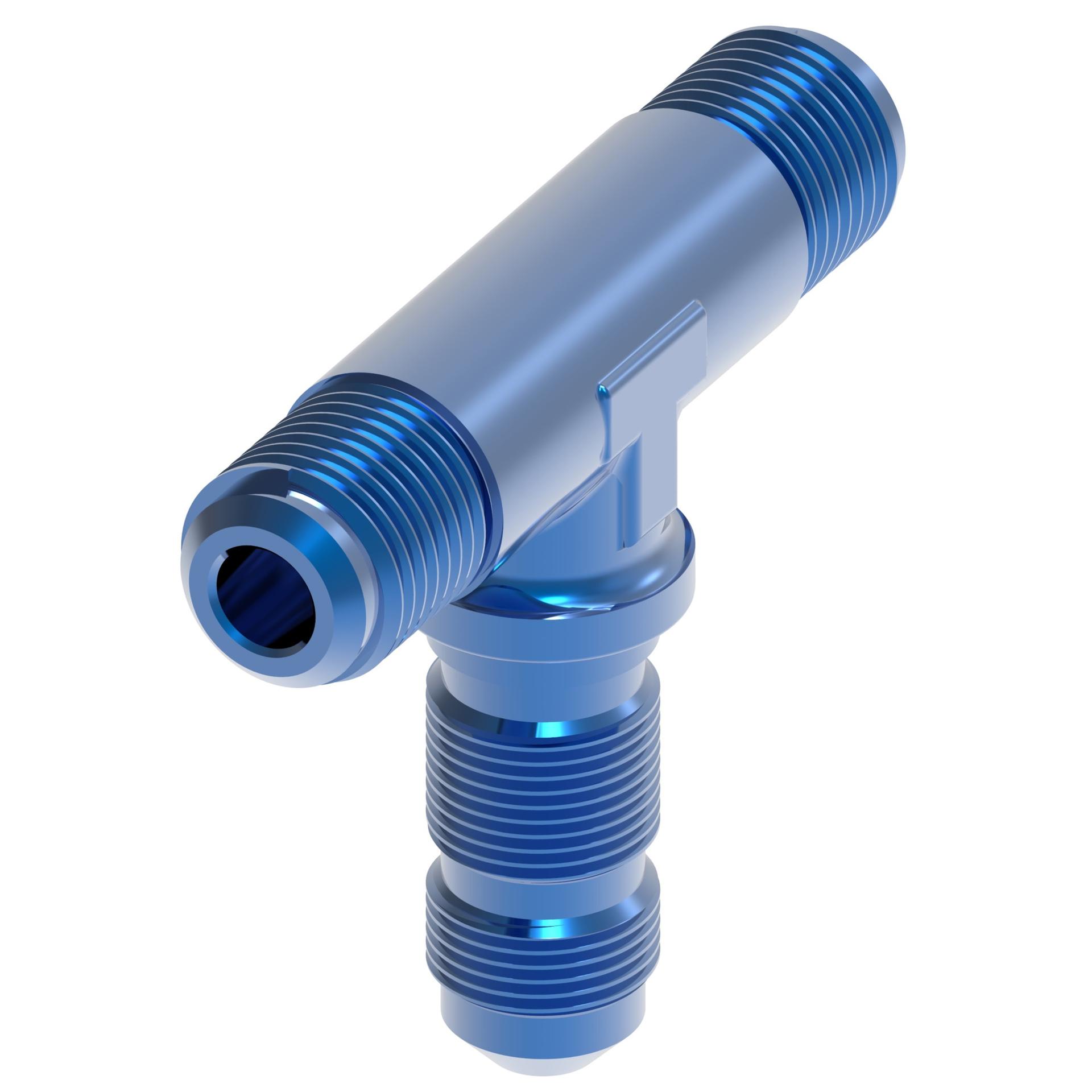

| Item type | Adapter-tee |
| Product material | Aluminum |
| Thread sealant | No |
| Thread size 1 | 3/8-24 UNF |
| Thread size 2 | 3/8-24 UNF |
| Thread size 3 | 3/8-24 UNF |
| Tube outside diameter 1 IN | 0.267 |
| Tube outside diameter 1 MM | 6.800 |
| Tube outside diameter 2 IN | 0.267 |
| Tube outside diameter 2 MM | 6.800 |
| Tube outside diameter 3 IN | 0.267 |
| Tube outside diameter 3 MM | 6.800 |
General specifications
Characteristic | Value |
|---|---|
| EAN | 678146006455 |
